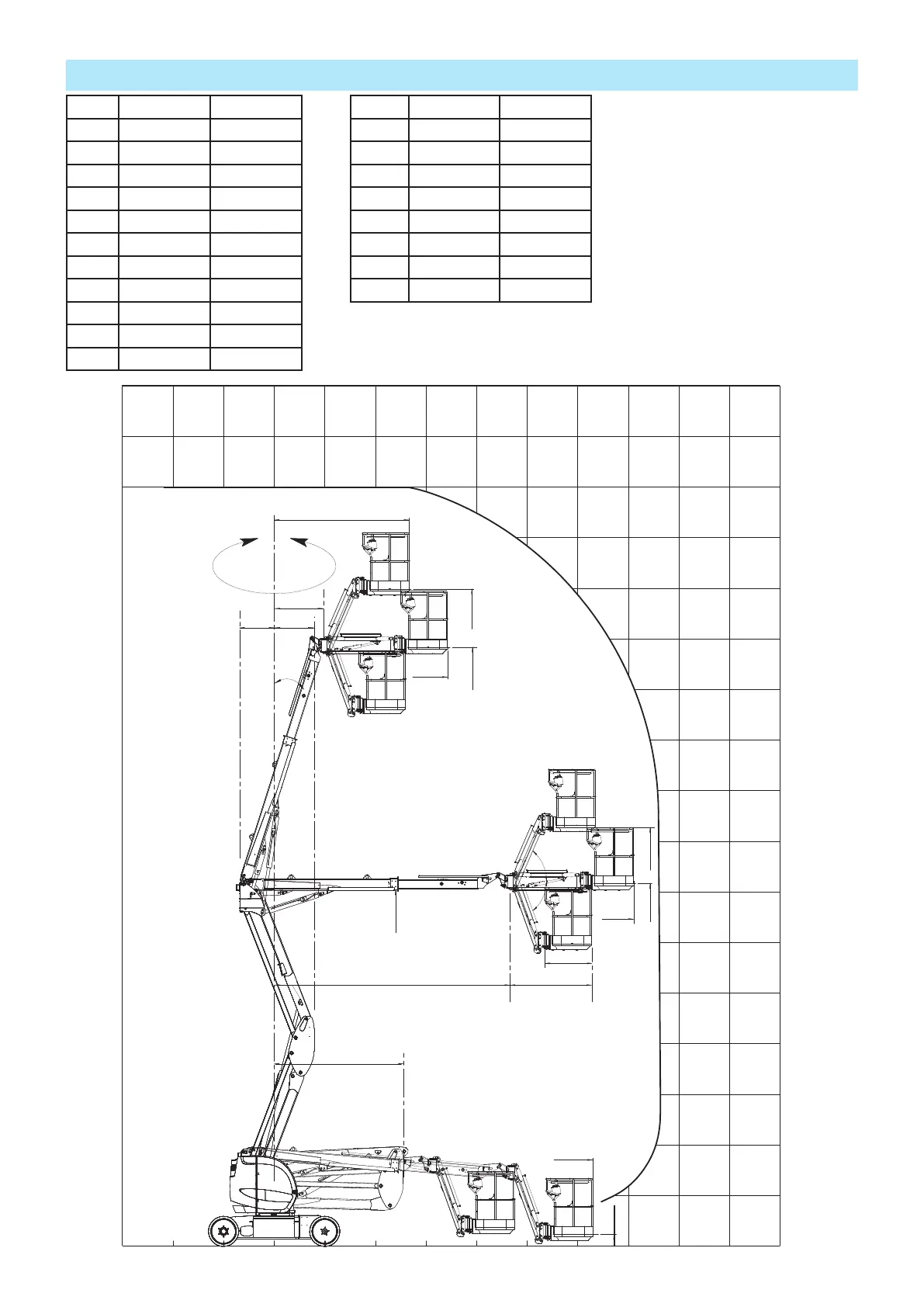

DIMENSIONS 170AETJL
H4
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2
3
7
8
9
2
2
2
9
8
7
5
3
4
6
1
1
0
3
G3
G4
G1
H1
G2
H2
H3
G5
G7
H5
H6
G6
G11
G9G8
G10
A1
A2
A2'
WHEEL 600X190 WHEEL 27-10-12
G1 2665 2665
G2 3425 3425
G3 7105 7105
G4 6300 6300
G5 685 685
G6 782 782
G7 984 984
G8 4667 4667
G9 1608 1608
G10 927 927
G11 2549 2549
WHEEL 600X190 WHEEL 27-10-12
H1 12985 13020
H2 11835 11870
H3 7165 7200
H4 235 270
H5 8272 8307
H6 7076 7111
A1 18° 18°
A2/A2’ 65° 65°
647536 (10/04/2017) 150 AETJ C / 170 AETJ L
