C  EVERY 100 HOURS OF OPERATION
C1 - ACCESS PLATFORM SLEW RING
GREASE
- The greasing of the bearing tracks and lubrication of the teeth shoul be carried out
every 100 hours of operation, and also before and after a long period of non use.
- Grease to be required: (see chapter: LUBRICANTS)

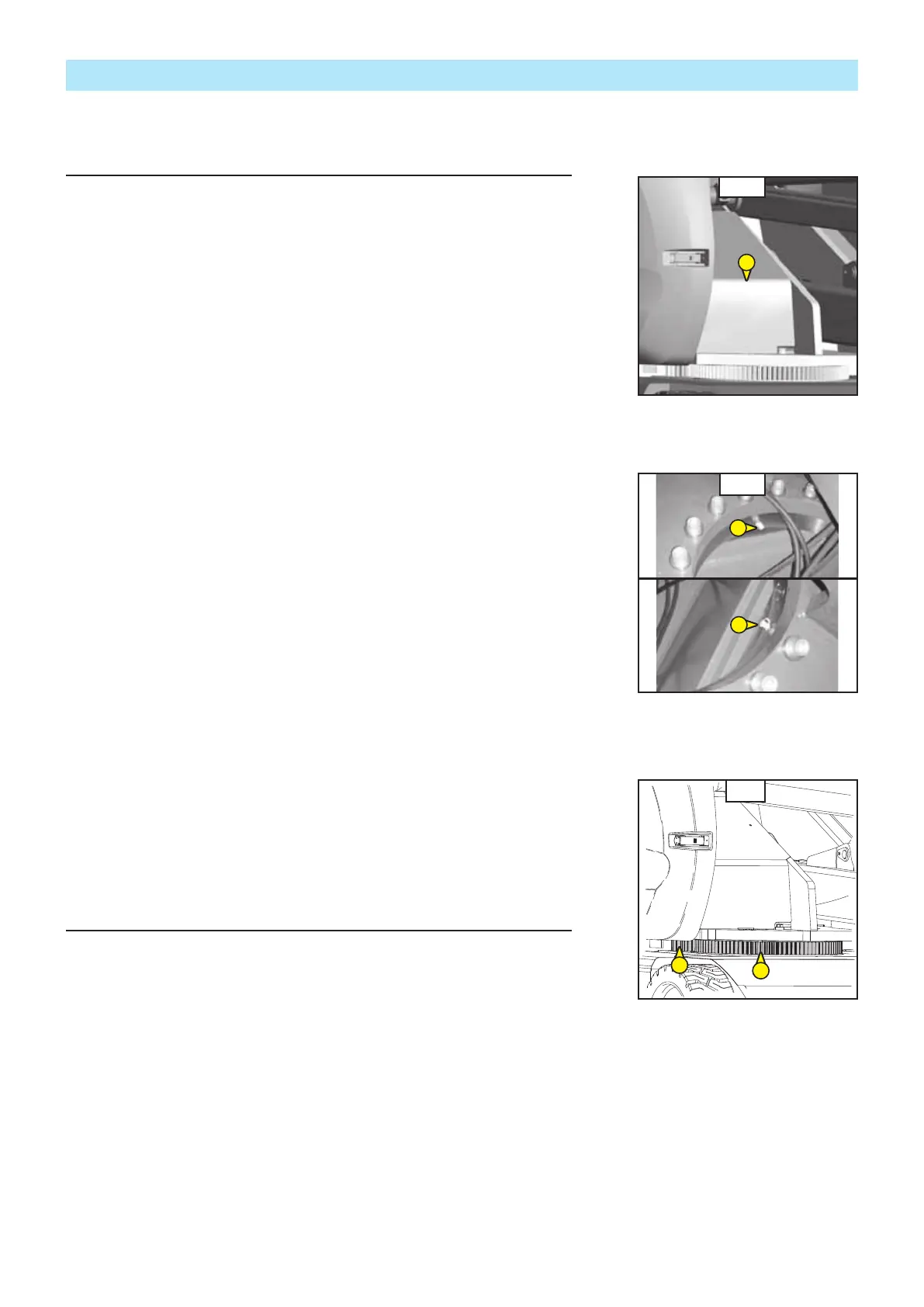

- Remove the inner cowling of turret 1 (Fig. C1/1).
- Reach to the 2 grease points (Fig. C1/2) and grease with abundance the crown by
orienting the turret (access to the represented grease points Fig. C1/2).
- Spray the lubricant on the crown wheels 3 and pinion 4 (Fig. C1/3).
- Lubricant to be required: (see chapter : LUBRICANTS)
C2 - TIGHTENING THE BOLTS ON THE TURRET ORIENTATION CROWN GEAR
CHECK
- Screw 5 (Fig. C1/2) tightness must be checked after 50 hours of operation at the latest.
It must then be checked every 100 hours of operation.
- The theorical tightening torque of the screws is 27,5 daNm ± 10%.
