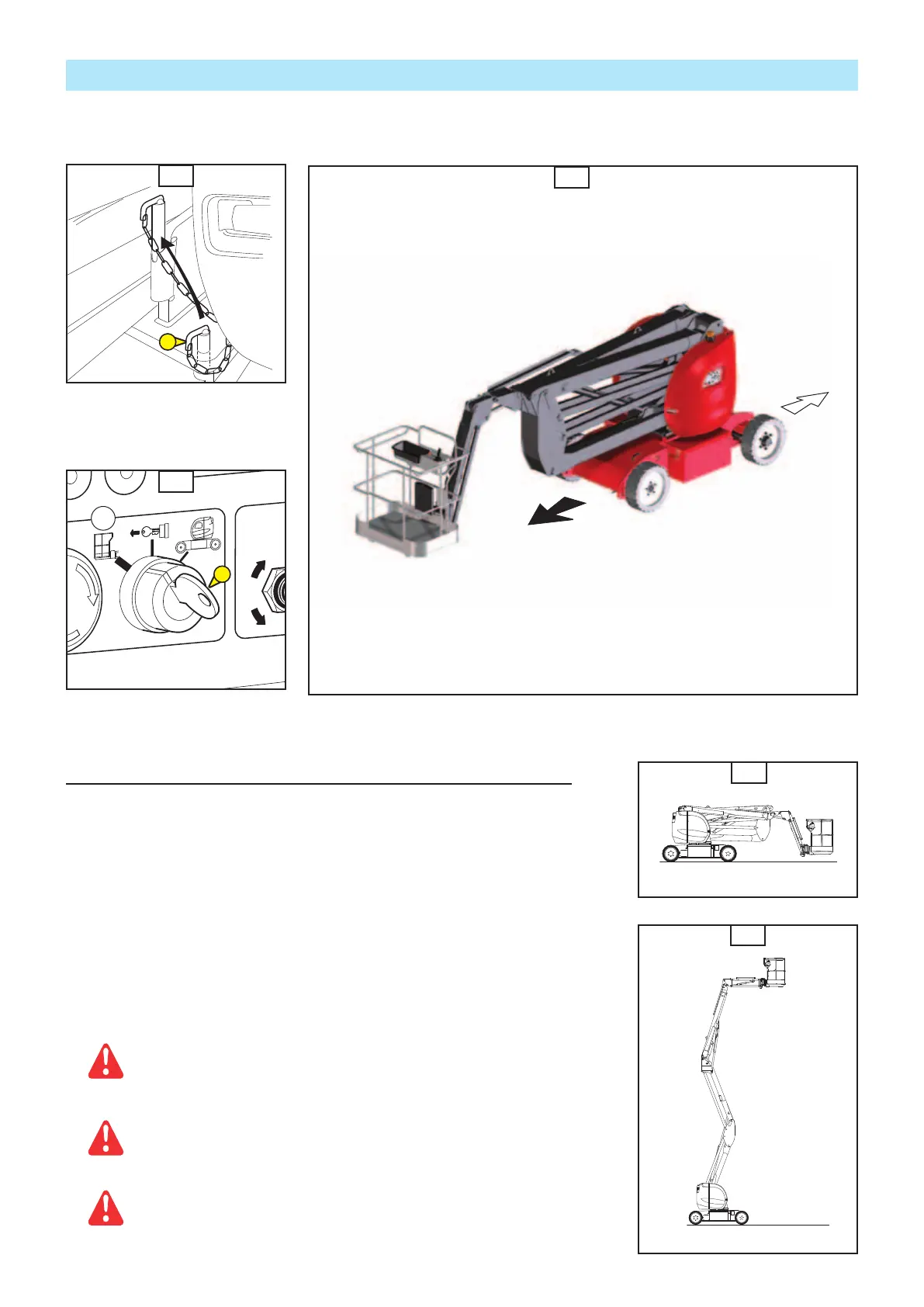

USE OF THE PLATFORM
DISPLACEMENT TRANSPORT MODE / WORKING MODE
- Before moving and using the machine, remove the turret blocking system 1 (see Fig. A).
- The contactor 2 (Fig. B) should be in the position A (transfer of commands on the desk
of the platform).
- The access platform has two modes of displacements: the transport mode (Fig. D) and
the working mode (Fig.E) (Direction of advance (Fig. C).
- Transport mode: the access platform arms are in low position. This mode is used to
move at high speed and go beyond the slope of the machine (Fig. D) (See chapter :
CHARACTERISTICS).
- Working mode: One or many arms of the access platform are lifted or the telescope is
gone out. In this mode, the travelling are made with a small speed, the safeties for the
slope and the overload are activated. (Fig. E).
In Work mode, any movement over broken ground, loose surfaces,
slopes grea
ter than the authorised level of tilt (see the
CHARACTERISTICS section) likely to overturn or unbalance the
lifting platform is PROHIBITED.
The turret must be in the lifting platform’s axis when making a
translation in Hare mode.
Before driving the lifting platform, ensure that the turret is correctly
oriented with respect to the chassis, i.e. in the translation direction.
To do that, look at the black and white arrows.
WORKING MODE
E
C
TRANSPORT POSITION
REVERSE
TRANSLATION
FORWARD
TRANSLATION
A
2
A
B
1
D
TRANSPORT MODE
647536 (10/04/2017) 150 AETJ C / 170 AETJ L
