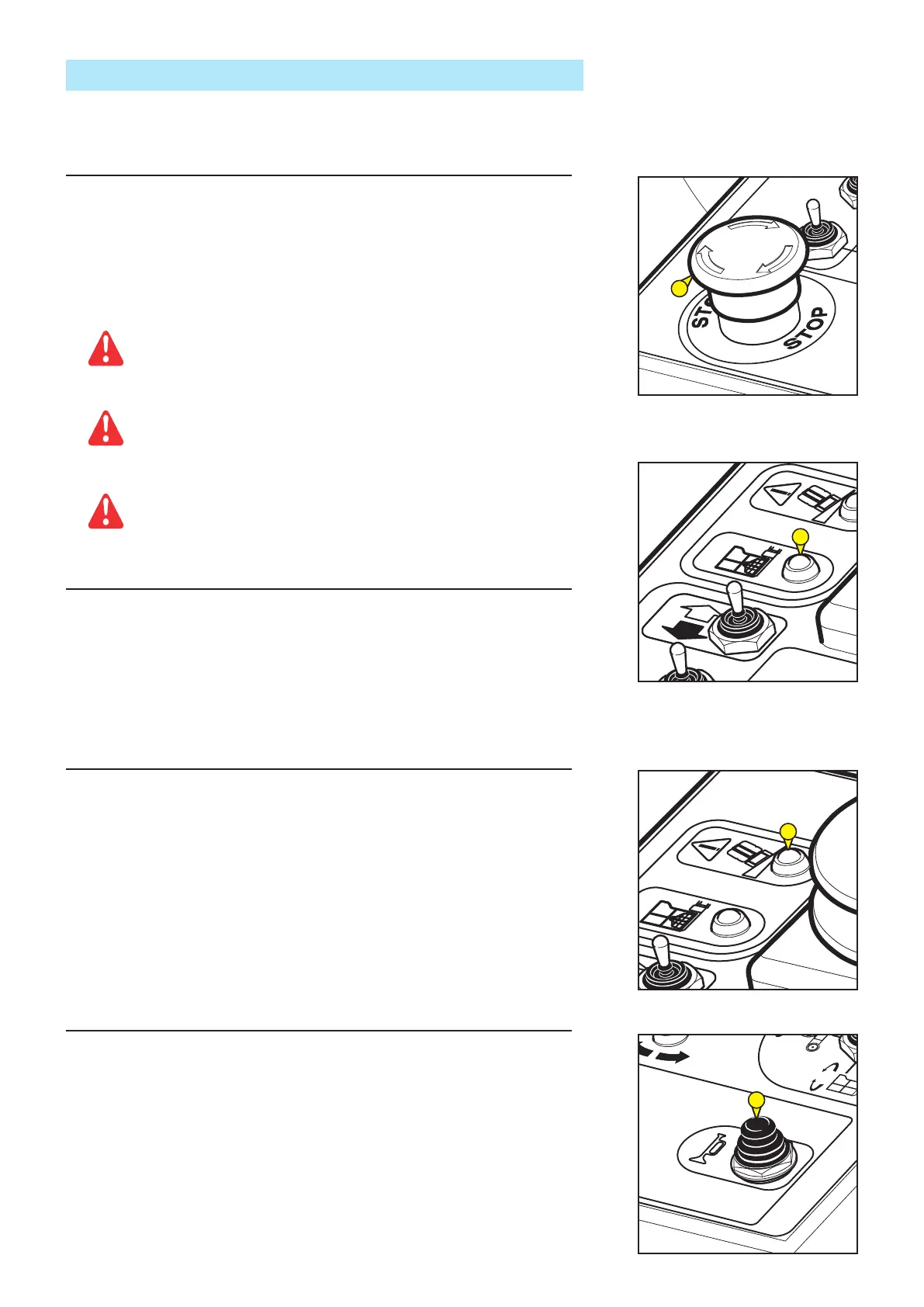

BASKET CONTROL STATION
21 - EMERGENCY STOP
This red mushroom-shaped button is used to stop all movement from the control
panel in the case of problems or danger.
- Press the emergency stop button to stop all movements controlled from the basket
control panel.
- Turn the button a quarter turn to the right to re-enable power (the switch will
automatically return to its initial position).
In all cases, this control has priority, except when movements are
being made from the emer
gency and ground maintenance station.
Do not use the emergency stop to simply shut down the lifting
platform. Otherwise, rearm it immediately as no action can be
performed on the ground maintenance station and the basket
command station.
To return to the ground even if the basket emergency stop is
engaged, use the emergency and ground maintenance station (See
“Rescue procedure” in section 2).
22 - OVERLOAD LAMP AND VARIATOR DEFECTS
THIS LAMP HAS TWO FUNCTIONS :
1 - If the basket is overloaded, the LED flashes intermittently (See : ACCESS PLATFORM
OPERATION – SAFETY INSTRUCTIONS).
2 - In case of fault, the number of flashes indicates the type of fault detected by the
variator (See: 4 - Lamp“MAINTENANCE MACHINE” p 2-17).
23 - SLOPE LAMP
- When the access platform has reached the maximum authorised slope the LED flashes
intermittently See : ACCESS PLATFORM OPERATION – SAFETY INSTRUCTIONS).
24 - SOUND ALARM HORN
- When button 24 is pressed, it activates the sound alarm horn 19 located on the turret.
21
22
23
24
647536 (10/04/2017)
150 AETJ C / 170 AETJ L
