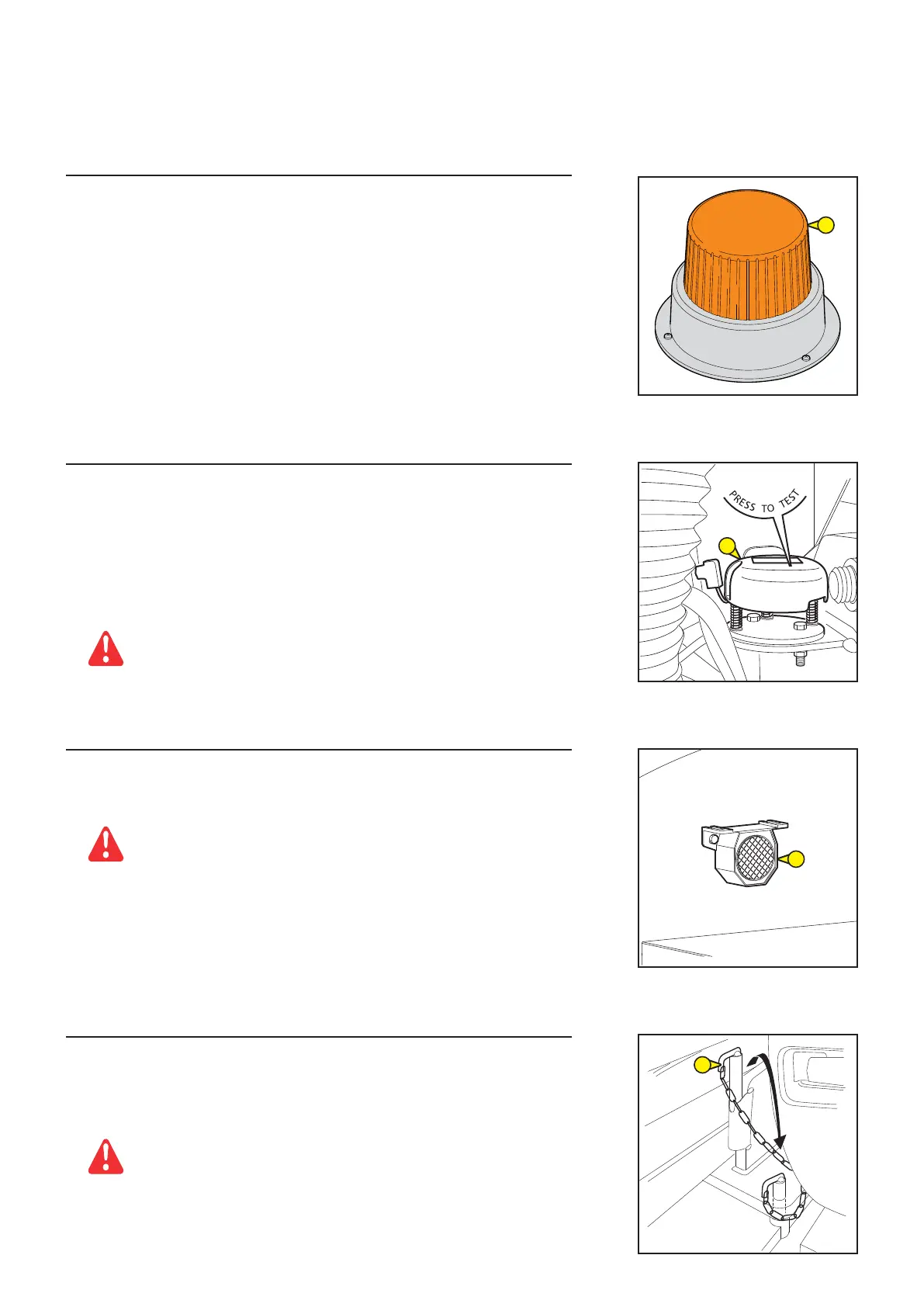

17 - FLASHING LIGHT (OPTION)
- The flashing alarm lamp turns on automatically when the platform is travelling, or if a
movement is carried out (Lifting, rotation,...).
18 - SLOPE SENSOR
- This sensor checks the platform’s inclination. When the platform reaches the maximum
authorised inclination (See the Chapter: CHARACTERISTICS), the buzzer (33) sounds
intermittently and all the “AGGRAVATING” movements – raising the arms, extending
the telescope – are blocked. The LED (23) on the platform is lit.
NB: SLOPE TEST; set the platform on a flat surface in base control position (see 2 – KEY-
OPERATED CONTACTOR). Press the sensor “PRESS TO TEST”, the buzzer should sound
and the LED light up.
If the buzzer does not sound and the LED does not light, immobilise
the platform and make the necessary repairs.
19 - SOUND ALARM HORN
- This sound alarm horn (fixed to the turret above the ground backup and maintenance station
box) is activated by pressing button 24.
The alarm will be activated if the BATTERY CUT-OUT is left on the ON
position when charging the ba
tteries (see 16 – BATTERY CUT-OUT).
20 - BLOCKAGE OF THE TURRET ROTATION
- Put the spindle in the space foreseen for this effect.
- This spindle is used to lock the turret rotation when she is in position.
- She must be used when the access platform is transported by truck or by another
transport (train ...).
Do not forget to remove its during the use of the access platform.
NB: Releasing the pin; you may have to rotate the turret right or left to free the pin to
extrac
t it from its location.
17
18
20
19
647536 (10/04/2017)
150 AETJ C / 170 AETJ L
