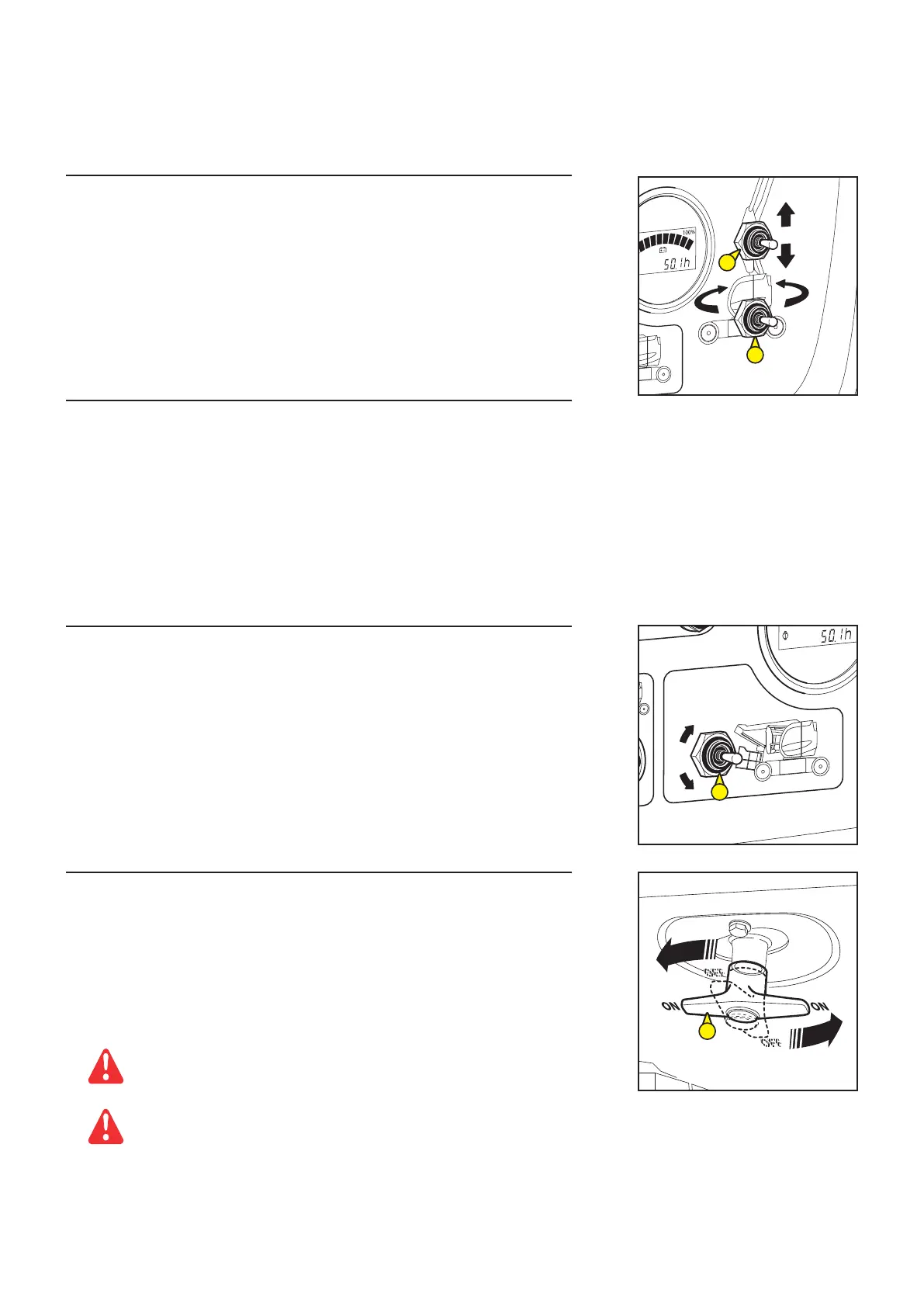

13 - RAISE AND LOWER CONTACTOR OF THE INFERIOR ARM
- This contactor is used to raise and lower the inferior arm.
LIFTING OF THE SUPERIOR ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 13 upwards.
LOWERING OF THE INFERIOR ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 13 downwards.
14 - TURRET ROTATION CONTACTOR
- This contactor is used to rotate the turret.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 14 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 14 to the left.
15 - INCLINATION CONTACTOR OF THE PLATFORM
- This contactor is used for the correction of the horizontality of the platform or the
complete re-folding of the platform in the transportation position.
CORRECTION OF THE PLATFORM UPWARD
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 15 upwards.
CORRECTION OF THE PLATFORM DOWNWARD
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 15 downwards.
16 - BATTERY SWITCH
The battery cut-out switch is located on the chassis on the ground backup and
maintenance station side.
IN THE ON POSITION
Turn the handle a quarter of a turn: current flows.
IN THE OFF POSITION
Turn the handle a quarter of a turn: current stops flowing.
Always set the battery cut-out to the OFF position when you are not
using the platform.
The sound alarm (see 19 - SOUND ALARM HORN) will come on if the
battery cut-out is left ON when the batteries are being charged.
13
14
15
16
647536 (10/04/2017) 150 AETJ C / 170 AETJ L
