Manitou 150 AETJ C User Manual

2-28

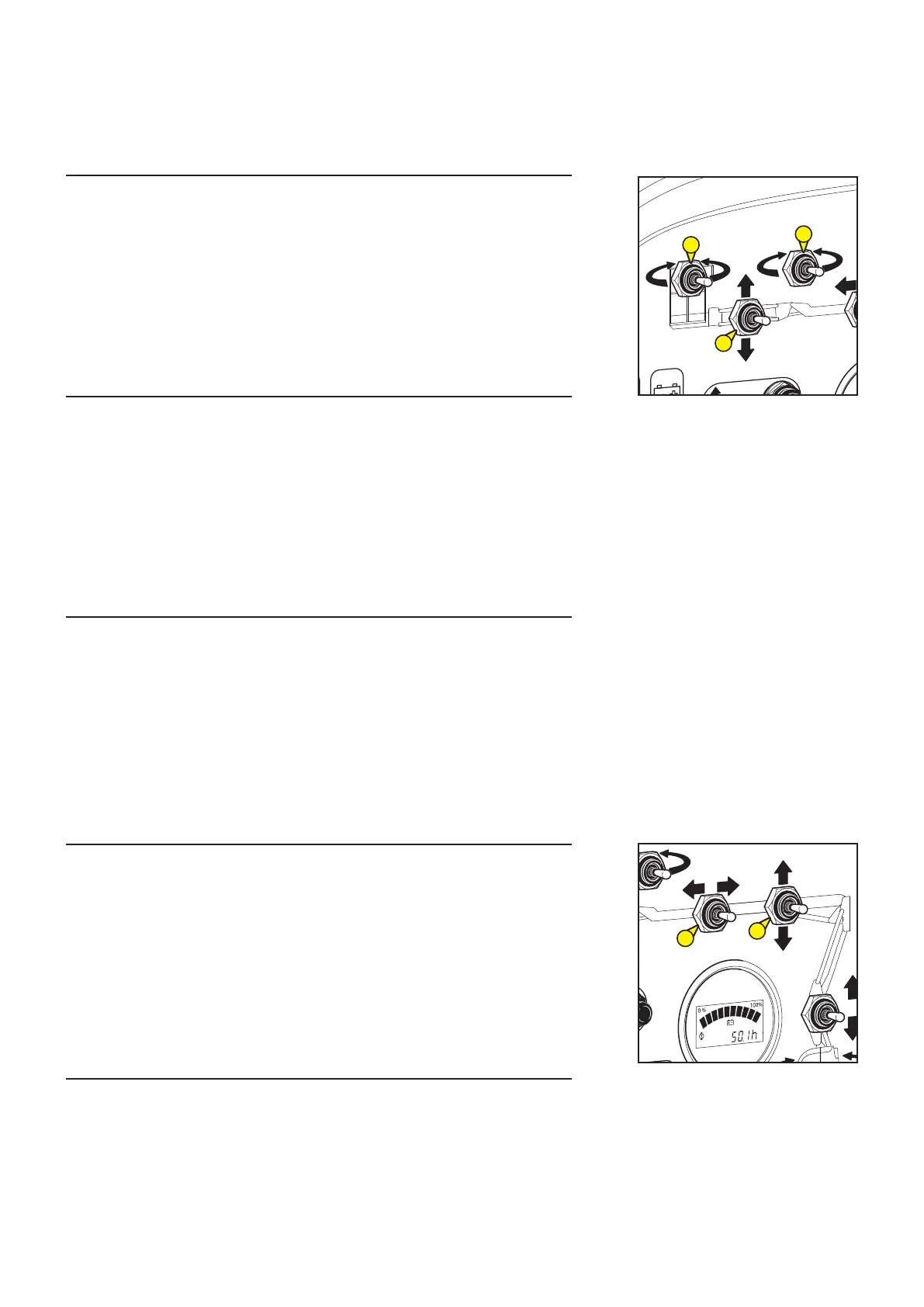

8 - BASKET ROTATION CONTACTOR
- This contactor is used to rotate the platform.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 8 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 8 to the left.
9 - RAISE AND LOWER CONTACTOR OF THE EXTENSION ARM
- This contactor is used to raise or lower the extension arm.
LIFTING OF THE EXTENSION ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 9 upwards.
LOWERING OF THE EXTENSION ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 9 downwards.
10 - ROTATION CONTACTOR FOR ROTATED JIB (OPTION 3D)
- This contactor enables you to rotate the pendular arm.
RIGHT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 10 to the right.
LEFT ROTATION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 10 to the left.
11 - TELESCOPE OUTPUTS AND INPUTS CONTACTOR
- This contactor enables you to extend and retract the telescope.
TELESCOPE EXTENSION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 11 to the left.
TELESCOPE RETRACTION
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 11 to the right.
12 - RAISE AND LOWER CONTACTOR OF THE SUPERIOR ARM
- This contactor is used to raise or lower the superior arm.
LIFTING OF THE SUPERIOR ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 12 upwards.
LOWERING OF THE SUPERIOR ARM
- Place the base/basket switch in the base position, keep the “dead man” button pushed
and push the switch 12 downwards
11
12
8
9
10
647536 (10/04/2017) 150 AETJ C / 170 AETJ L
