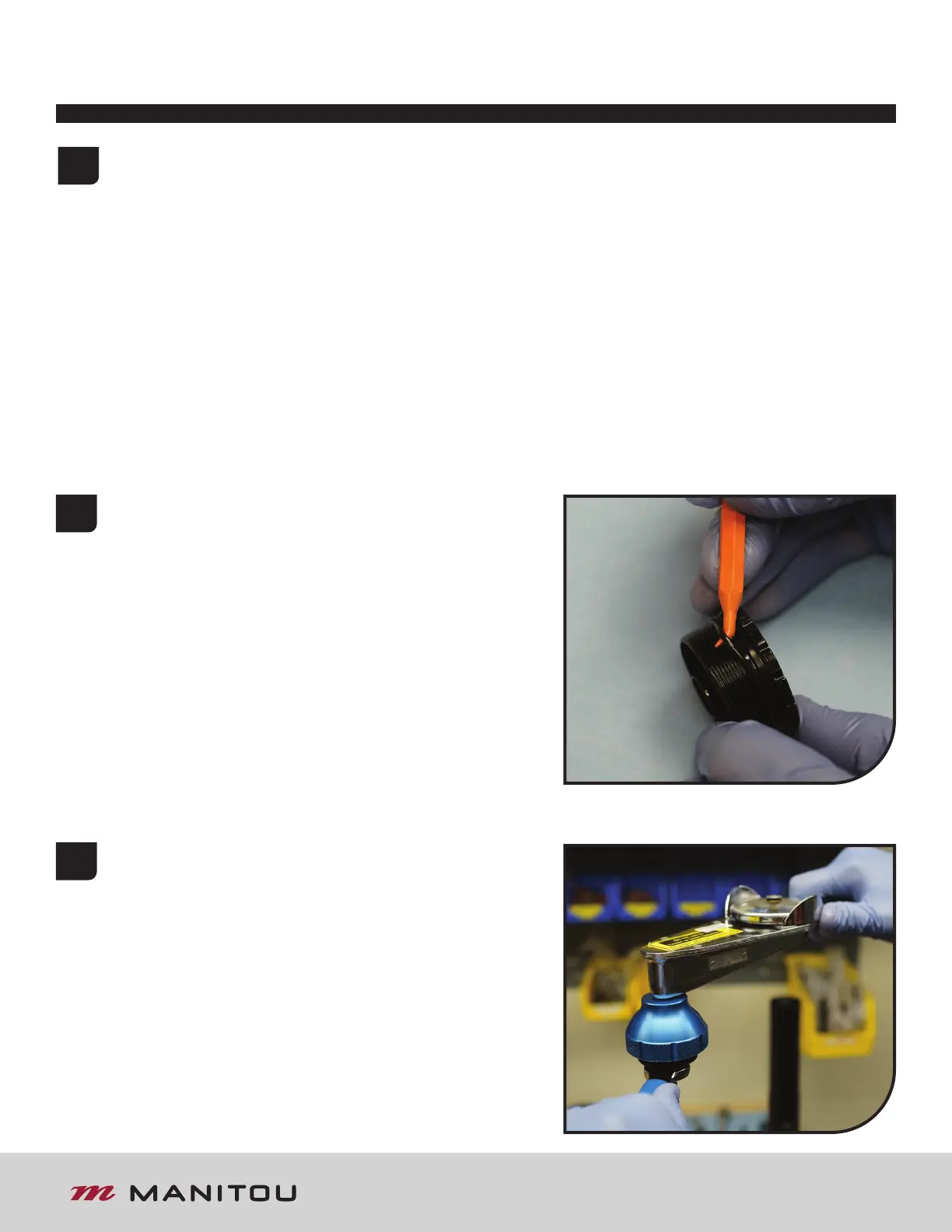

DORADO COMP 37MM SERVICE GUIDE
DAMPING LEG ASSEMBLY
6
Replace O-ring # 100-027 on the top cap.
Install the top cap onto the end of the rebound shaft.
Use a 16 notch Bottom Bracket Tool and a 12mm
wrench to tighten to the proper torque of
6.8-9.0 N m (60-80 in lb).
5
Replace the oil and dust seals on the outer leg following the directions on pages 18-19. Inspect the inside of the outer leg and
the outside of the inner leg and be sure they are free from debris and contaminants. Lube the oil seal and dust wiper on the
outer leg with a small amount of Slickoleum grease. Slide the inner leg into the outer leg and clamp into the bike stand.
4
To Next Page
