12
DORADO COMP 37MM SERVICE GUIDE
7
8
Install the rebound knob into the top cap by snapping it into place. Fully close the rebound by turning the knob clockwise.
Fully extend the rebound shaft, pulling the inner leg up into the outer leg.
DAMPING LEG ASSEMBLY
9

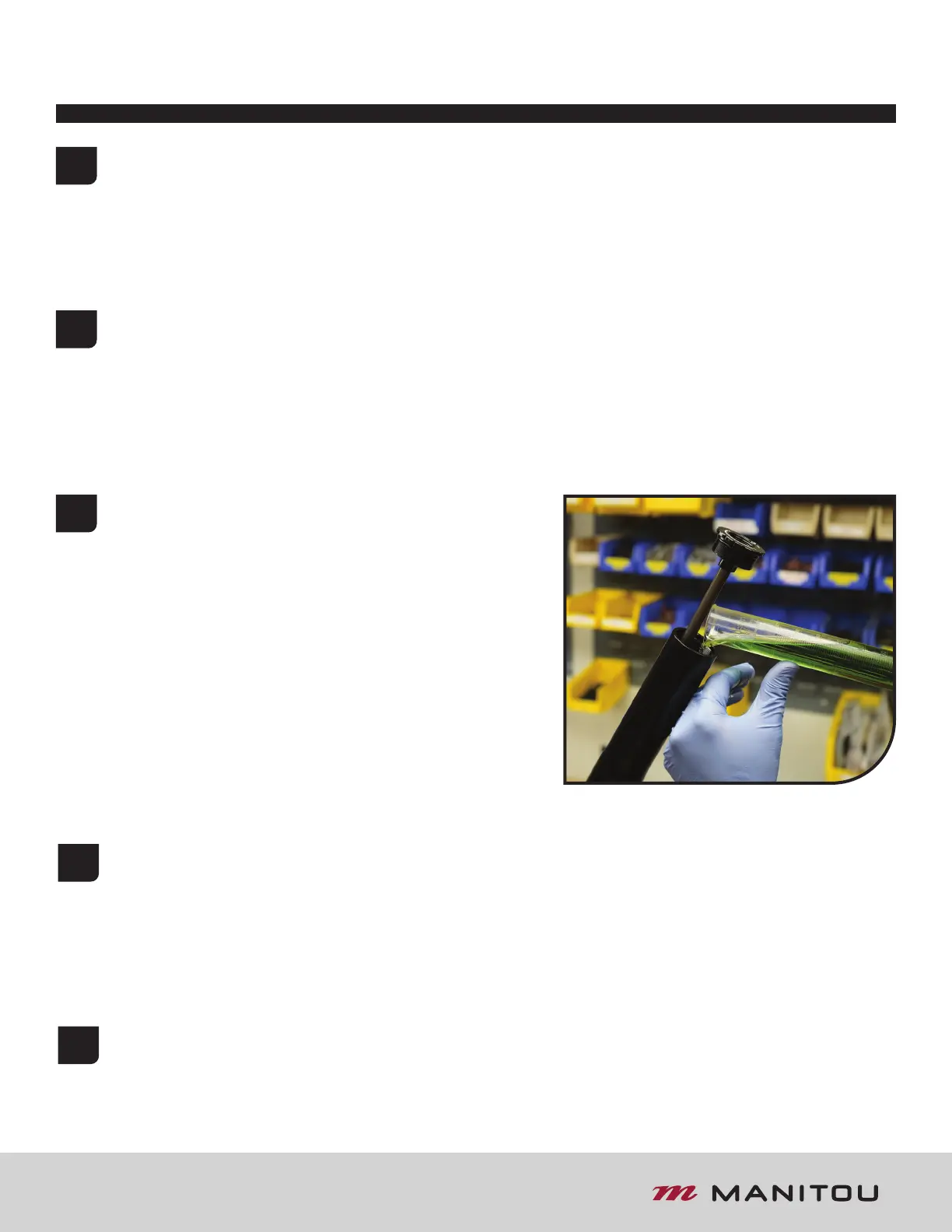

Pour 320cc damper oil (5wt fork oil) into the leg. Stroke
the rebound shaft to bleed the system and release the
air. You want to stroke the rebound shaft a few times
with the rebound fully closed, then turn the rebound
knob open two clicks counterclockwise. Stroke the
rebound shaft another 15-20 times and the system will
be bled.
10
11
After damper is fully bled, fully extend the inner leg and tighten down the top cap using a 16 notch Bottom Bracket Tool to the
proper torque of 6.8-9.0 N m (60-80 in lb).
Thoroughly clean leg assembly of all residual oil, then reinstall the damping leg into the fork crowns on the bike.
