MHT 10120 L M
eries

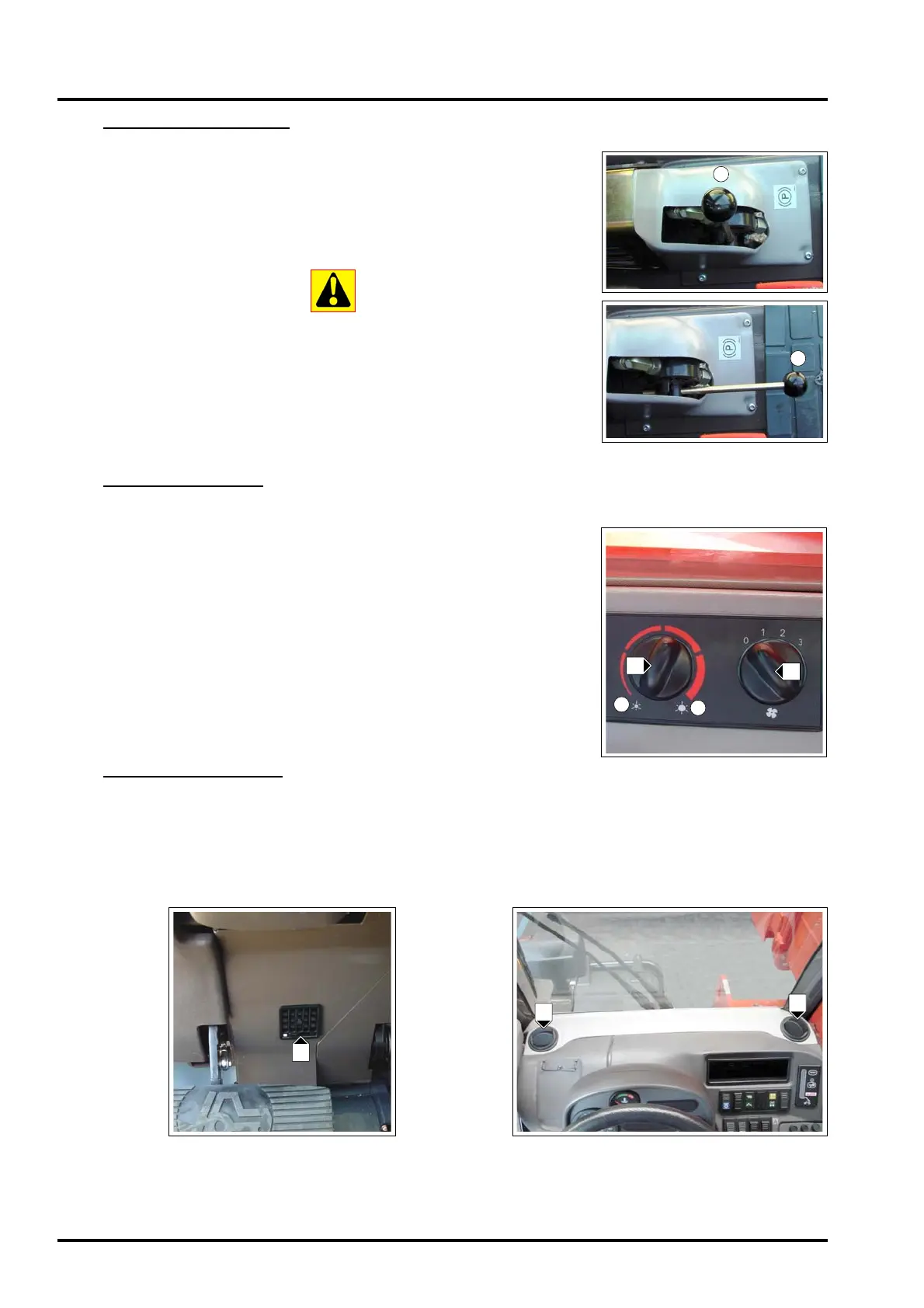

PARKING BRAKE LEVER
To prevent any accidental release, the lever has a safety
locking system.
- To engage the parking brake, pull the lever back (Position A).
- To disengage the parking brake, release the lever and push it forward
(Position B).
Con il freno di stazionamento attivato (leva in posizione “A”) insieme
all’accensione della spia sul cruscotto, viene anche inibito
il comando della traslazione del carrello elevatore.
HEATING CONTROLS
C) Fan knob
This 3-speed knob allows distribution of warm or cold air from the outlets.
D)Temperature regulator knob.
This knob allows regulation of the temperature inside the cab.
-” - Valve closed, fan delivering cold air.
+” - Valve completely open, fan delivering warm air.
The intermediate positions allow regulation of the temperature.
VENTILATION OUTLETS
These allow direction of the ventilation jets inside the cab; they
are placed in the top of the cab “E” and near the drivers feet “F”.
A
B
-
+
D
C
F
E
E
The forward/reverse motion of the lift tuck is prohibited when the
handbrake is activated (lever in position "A"), also the park brake light on
the dashboard is activated.
