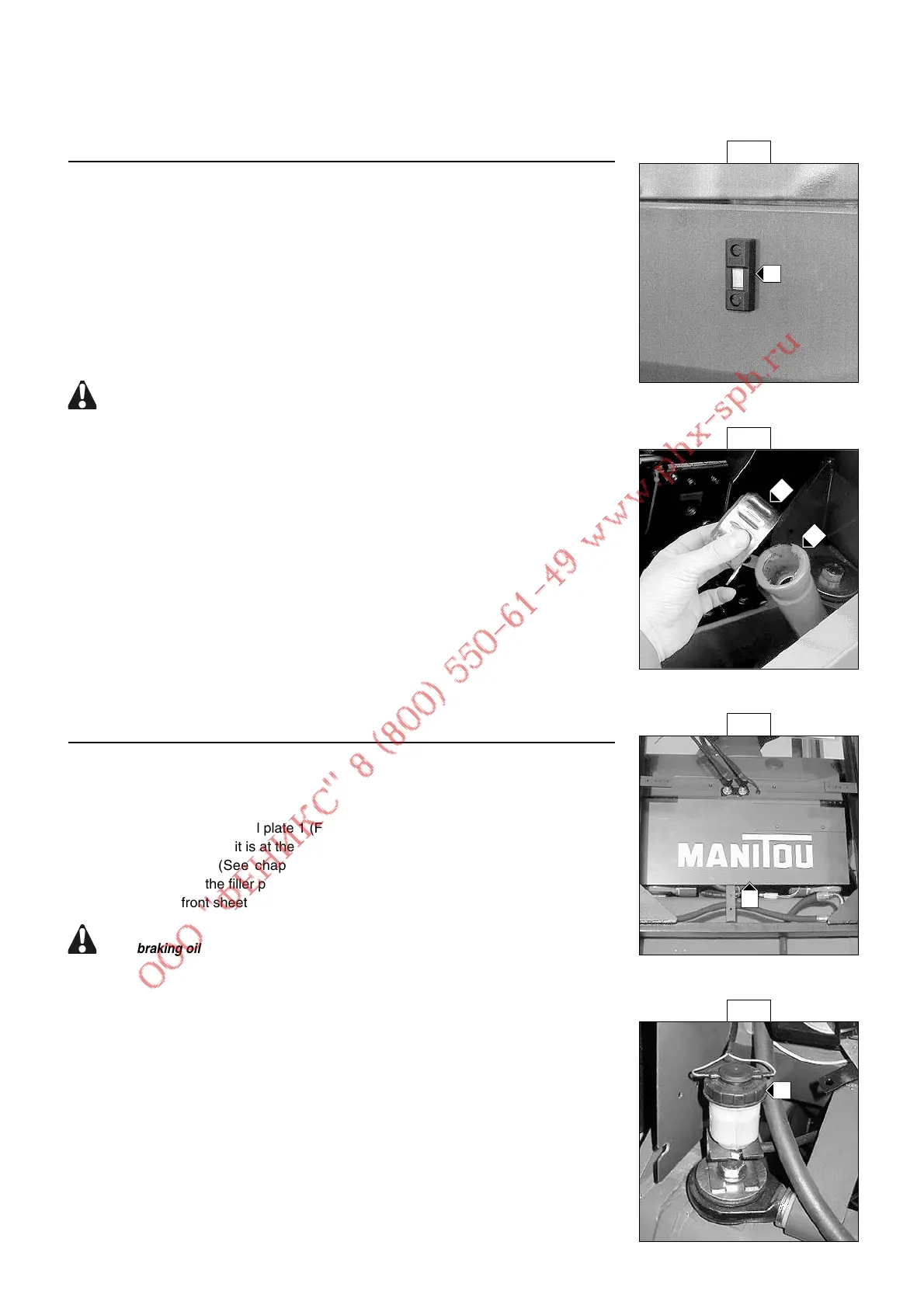

B8 - HYDRAULIC OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, the mast tilted
backwards and lowered as far as possible.
- Refer to gauge 1 (Fig. B8/1).
- The level is correct when it is equidistant between the lower and the upper marks.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE).
- Remove cap 2 (Fig. B8/2).
- Add oil by filler port 3 (Fig. B8/2).
Use a clean funnel and clean the underside of the oil drum before filling.
- Put the cap back.
Always maintain the oil level at maximum as cooling depends on the oil flowing through
the tank.
B9 - B
RAKE OIL LEVEL
CHECK
Place the lift truck on level ground.
- Remove the front sheet metal plate 1 (Fig. B9/1).
- The level is correct when it is at the MAXI level on the tank.
- If necessary, add oil (See chapter : LUBRICANTS AND FUEL in paragraph : 3 -
MAINTENANCE) by the filler port 2 (Fig. B9/2).
- Reassemble the front sheet metal plate 1 (Fig. B9/1).
If the braking oil level is abnormally low, consult your dealer.
B8/1
B8/2
1
2
3
1
2
