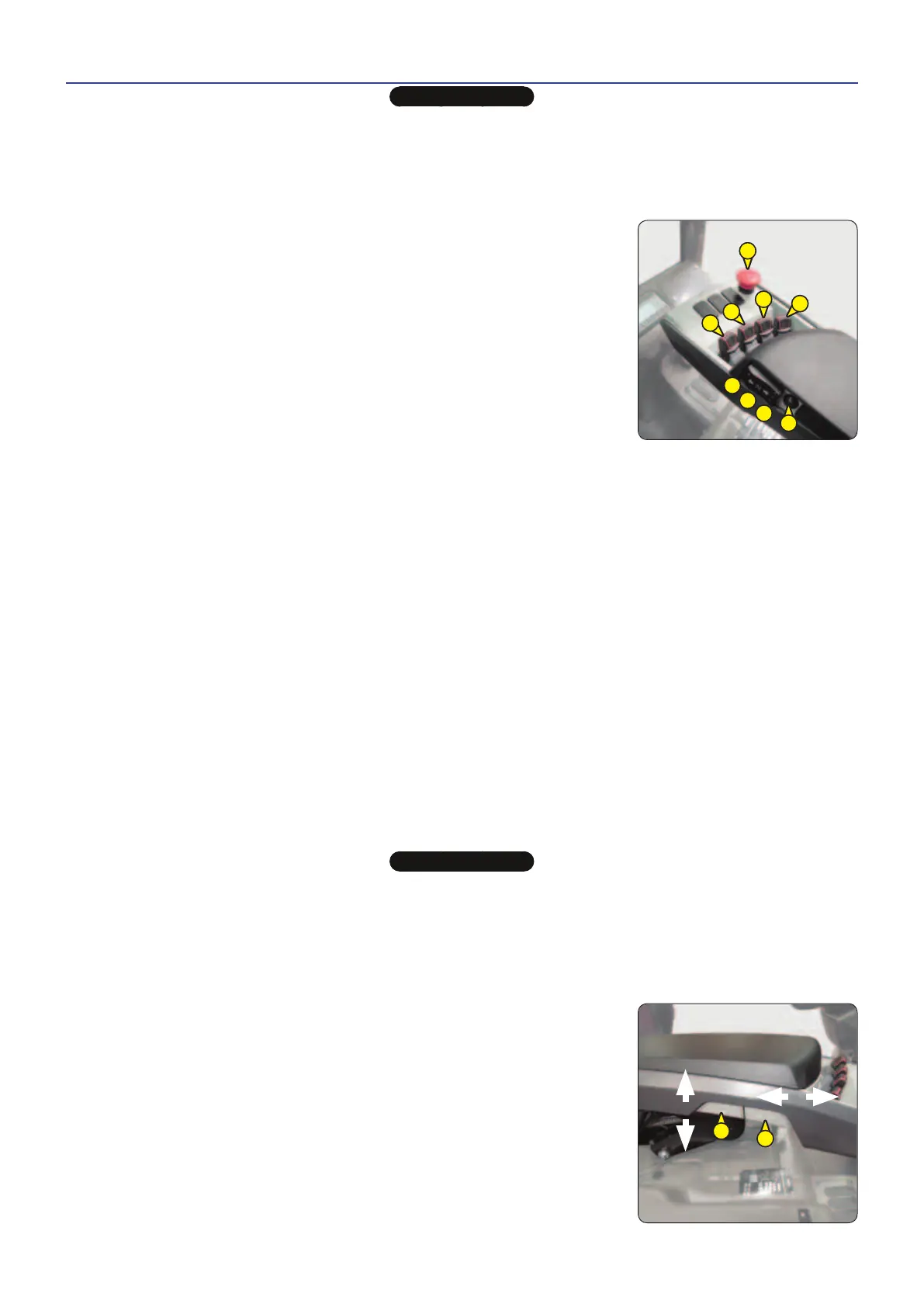

31 - MINI LEVERS HYDRAULIC CONTROLS (OPTION)
IMPORTANT
Do not attempt to alter the hydraulic system pressure by interfering with the pressure regulating valve. In the event of suspected malfunction, contact your dealer.
ANY ALTERATION MAY RENDER THE WARRANTY NULL AND VOID.
Use the hydraulic controls carefully without jerking, to avoid accidents caused by shaking the lift truck.
Using the hydraulic controls is only possible if the driver is present and correctly sat on his seat.
LIFTING THE LOAD
• The mini-lever A backwards when lifting.
• The mini-lever A forwards when lowering.
TILTING THE MAST
• The mini-lever B backward for backward tilting.
• The mini-lever B forwards for forward tilting.
CARRIAGE SIDE-SHIFT
• The mini-lever C backwards to move sideways to the right.
• The mini-lever C forwards to move sideways to the left.
ATTACHMENT (OPTION)
• The mini-lever C forwards or backwards.
FORWARD/NEUTRAL/REVERSE GEAR SELECTION
When operating this control, the lift truck should be travelling at slow speed and not accelerating.
• FORWARD: Push the knob forward E1.
• REVERSE: Pull the knob backwards E2.
• NEUTRAL: The knob must be in the intermediate position to start the lift truck E3.
NOTE: The reversing lights and the acoustic reversing alarm indicate that the lift truck is running in reverse.
SAFETY FOR MOVING THE LIFT TRUCK
The operator must observe the following sequence to move the truck forwards or backwards:
• 1 - sit down correctly in the driver’s seat,
• 2 - switch on the ignition,
• 3 - release the parking brake,
• 4 - engage forward or reverse movement.
To stop the forklift truck, the following sequence must be observed:
• 1 - set the forward/reverse selector to neutral,
• 2 - apply the parking brake,
• 3 - switch off the ignition,
• 4 - get out of the lift truck.
If these sequences are not followed you must then return the reversing gear to the neutral position and repeat the sequence.
EMERGENCY STOP BUTTON
IMPORTANT
Be ready for hydraulic movements suddenly stopping when you press this button.
In case of danger, switches off the electrical power supply circuit.
• Pull the button F to disable it before restarting the lift truck.
HORN
• Press the red button G to operate the horn.
ADJUSTING THE ARMREST
The armrest is adjustable in height and length.
- Press the button H to adjust in height.
- Press the button I to régler in length.
2-32
H
I
D
A
B
F
C
E2
E3
E1
G
647503 (10/05/2017)
E 418/420/425C 48V S3
