2-77
EN
IT
EN ESNO

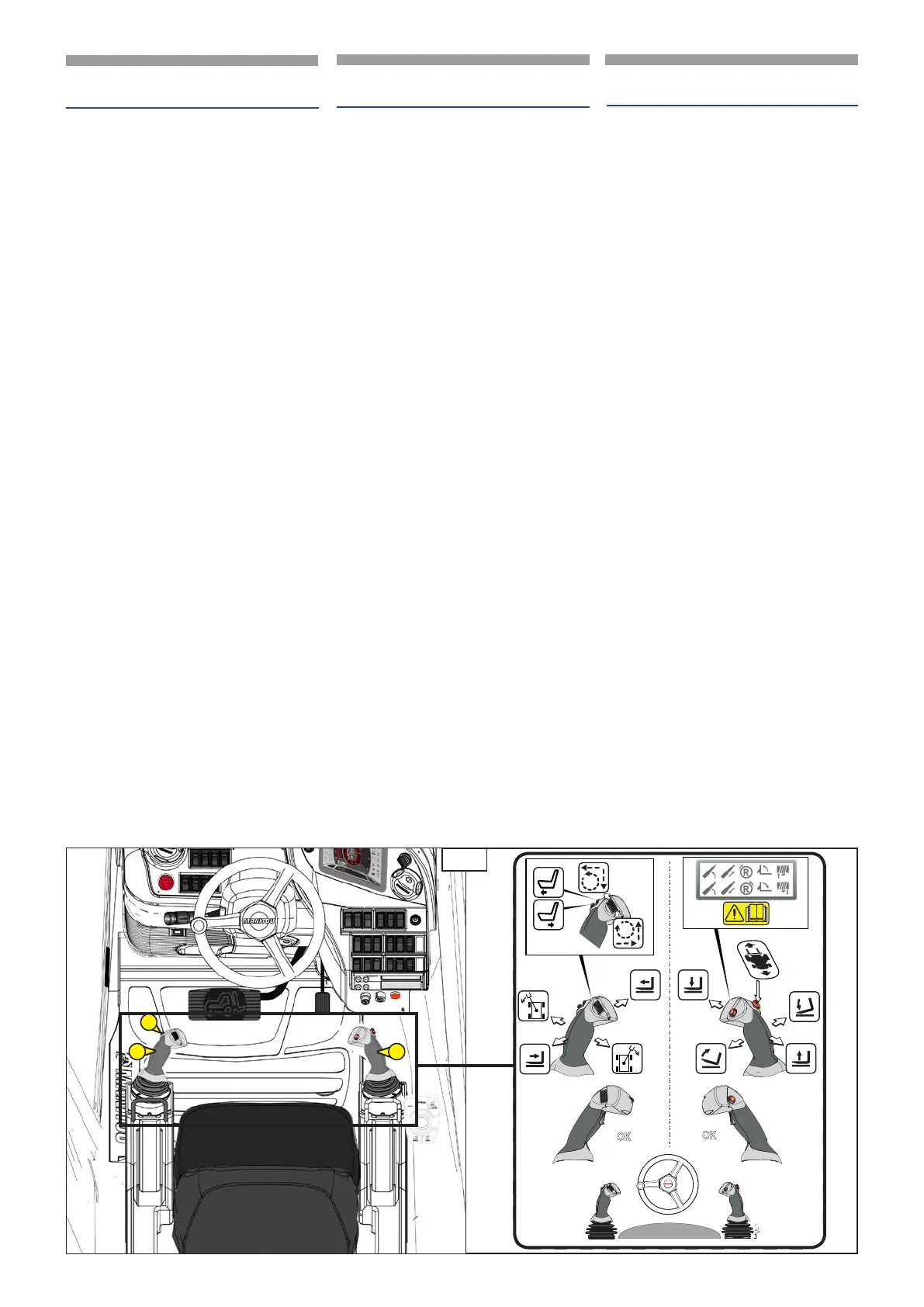

16  PROPORTIONAL ELECTROHYDRAULIC
SERVOCONTROLS
The forklift truck is equipped with two
electro-hydraulic servocontrols, one to the RH
(1,15)of the operator and the other to the
LH (2,15) both on the arm-rests to ensure
better control and comfort.
p
The manipulators work only
with the cab door closed and the
manoeuvre consent pushbuttons
pressed.
Servocontrol (1,15)
It can simultaneously activate two
double-action movements: lifting the load
and inclining the forks.
To enable and carry out the movements
keep the manoeuvre enable (OK,15) on
manipulator (1,15) pressed.
- To raise the load, pull the lever backwards.
- To lower the load, push the lever for-
wards.
- To incline the fork downwards push the
lever to the RH.
- To incline the fork upwards push the le-
ver to the LH.
- Pushbutton for setting maximum speed
of hydraulic movements
Servo-control (2,15)
It can simultaneously activate three double-
action movements: Telescopic boom
extension, turret rotation and optional
command.
To enable and carry out the movements
keep the manoeuvre enable (OK,15) on
manipulator (2,15) pressed.
- To extend the telescopic boom press the
lever forwards.
- To retract the boom, pull the lever back-
wards.
- To rotate the turret clockwise push the
lever to the RH.
- To rotate the turret anticlockwise push
the lever to the LH.
- To control the movements of the option-
al turn the roller on the lever (2,15)
- Move the seat forwards-backwards
electrically by pressing the two but-
tons on the LH manipulator (3,15).
It can also be inclined upwards forwards
by 13°.
53010700
OK
OK
15
1
2
3
16  SERVOCOMANDI ELETTROIDRAULICI
PROPORZIONALI
Il carrello è dotato di due servocomandi
elettroidraulici uno alla destra (1,15)
dell’operatore e uno alla sinistra (2,15)
entrambi sui braccioli del sedile per garantire
un migliore controllo e comfort.
p
I manipolatori funzionano solo
con portiera cabina chiusa e
pulsanti di consenso manovre
premuti.
Servocomando (1,15)
Può azionare simultaneamente due
movimenti a doppio effetto: sollevamento del
carico e inclinazione delle forche.
Per abilitare e compiere i movimenti
mantenere premuto il consenso manovre
(OK,15) su manipolatore (1,15).
- Per sollevare il carico tirare indietro la
leva.
- Per abbassare il carico spingere la leva in
avanti.
- Per far inclinare la forca verso il basso
spingere la leva verso destra.
- Per inclinare verso l’alto la forca spingere
la leva a sinistra.
- Pulsante per impostare la velocità
massima dei movimenti idraulici
Servocomando (2,15)
Può azionare simultaneamente tre movimenti
a doppio effetto: Sfilo del braccio telescopico;
rotazione della torretta e comando optional.
Per abilitare e compiere i movimenti
mantenere premuto il consenso manovre
(OK,15) su manipolatore (2,15).
- Per slare il braccio telescopico spingere
la leva in avanti.
- Per far rientrare il braccio tirare indietro
la leva.
- Per far ruotare la torretta in senso orario
spingere la leva verso destra.
- Per far ruotare la torretta in senso
antiorario spingere la leva verso sinistra.
- Per comandare l’optional nei suoi
movimenti ruotare il roller sopra la leva
(2,15).
- Muovere avanti-indietro il sedile
elettricamente premendo i due bottoni
(3,15) su manipolatore sinistro.
In avanti si inclina anche di 13° verso
l’alto.
16  PROPORSJONALE ELEKTROHYDRAULISKE
SERVOSTYRINGER
Trucken er utstyrt med to elektrohydrauliske
servobetjeninger, en til høyre (1,15) for
føreren og en til venstre (2,15), begge
på setets armlener for å garantere bedre
kontroll og komfort.
p
Manipulatorene fungerer kun
når førerhusdøren er lukket og
tilstedeværelselssensorene er
aktivert.
Servobetjening (1,15)
Brukes til å aktivere to
dobbeltvirkende bevegelser samtidig:
løfting av last og tilting av gafler.
For å aktivere og utføre bevegelsene må
du holde inne tilstedeværelsesknappen
(OK,15) på manipulatoren (1,15).
- Trekk spaken bakover for å løfte lasten.
- Skyv spaken forover for å senke lasten.
- Skyv spaken mot høyre for å tilte
gaelen nedover.
- Skyv spaken mot venstre for å tilte
gaelen oppover.
- Knapp for innstilling av maksimal
kontrollhastighet på hydrauliske
bevegelser
Servobetjening (2,15)
Den kan aktivere tre dobbeltvirkende
bevegelser samtidig: Utkjøring av
teleskoparmen, rotering av tårnet og
betjening av tilleggsutstyr.
For å aktivere og utføre bevegelsene må
du holde inne tilstedeværelsesknappen
(OK,15) på manipulatoren (2,15).
- Skyv spaken forover for å kjøre ut
teleskoparmen.
- Trekk spaken bakover for å trekke armen
tilbake.
- Skyv spaken mot høyre for å rotere
tårnet i urviserretningen.
- Skyv spaken mot venstre for å rotere
tårnet mot urviserretningen.
- For å betjene tilleggsutstyrets
bevegelser må du bruke rullebryteren
oppå spaken (2,15).
- Beveg setet forover-bakover elektrisk
ved å trykke på de to knappene (3,15)
på den venstre manipulatoren.
Forover vippes setet i tillegg 13 grader
oppover.
