2-38

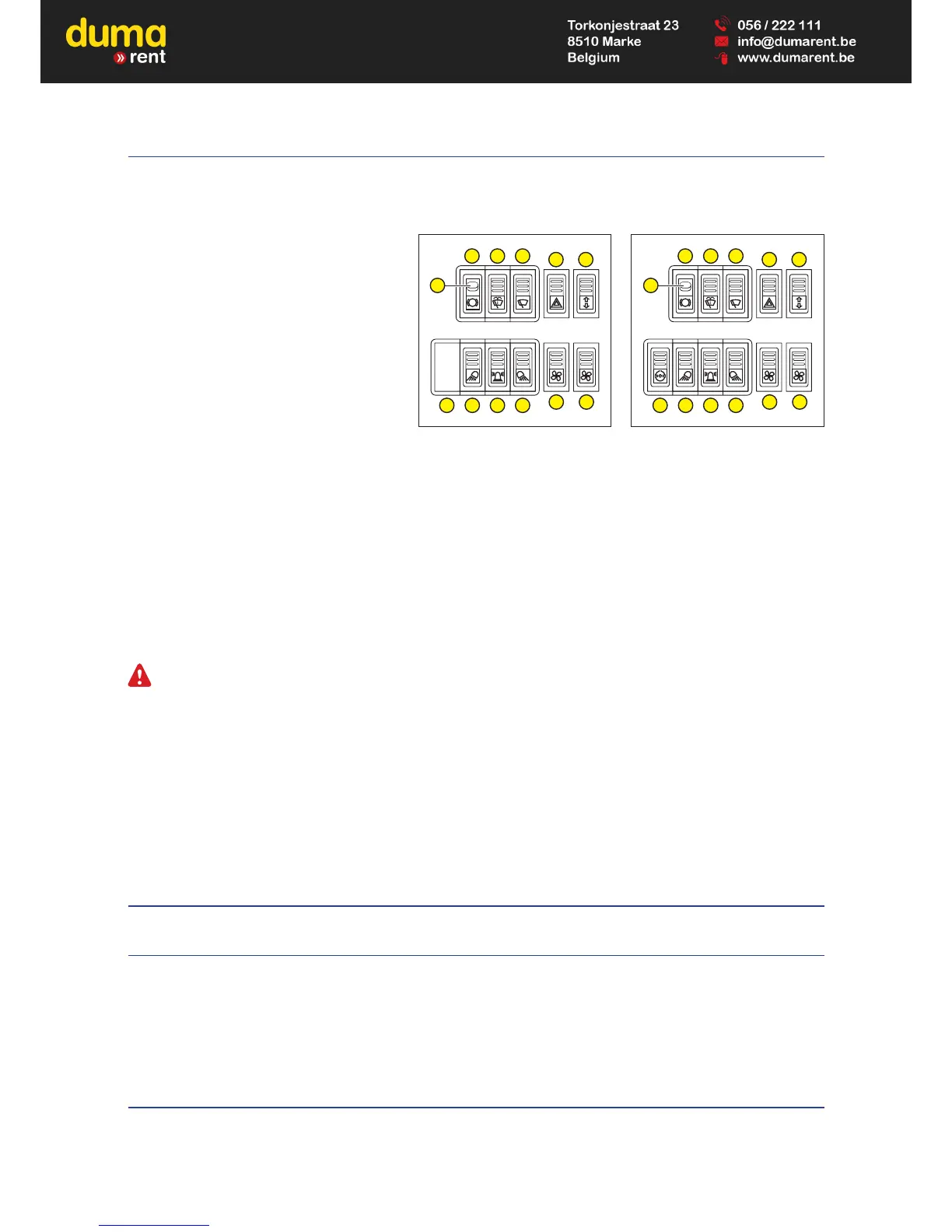

4 - SWITCHES
NOTE: The location of the switches may vary
depending on the options.
A - PARKING BRAKE
To connect the parking brake, lower the button 1
and press the bottom of the switch. The signal
lamp shows it is being used. To disconnect the
parking brake, press the top of the switch.
B - FRONT WINDSCREEN WIPER AND WINDSCREEN
WASHER
This switch, when set to the “intermediate”
position, the windscreen wiper to be operated and
the “down” position and simultaneously pressed,
the windscreen-washer to be operated.
C - REAR WINDSCREEN WIPER
D - WARNING LIGHTS OPTION
This switch enables the L.H. and R.H. Indicators to be switched on simultaneously, with the ignition off. The signal light indicates
that the switch is being used.
E - OVERHEAD GUARD OR CAB LIFTING
See: 2 - DESCRIPTION: 18 - OVERHEAD GUARD LIFTING or 18 - CAB LIFTING (OPTION) for operation of the switch.
F - OPTION
MSI 20 T Série 2-E3 + BUGGIE MSI 25 T Série 2-E3 + BUGGIE
MSI 30 T Série 2-E3 + BUGGIE MSI 35 Turbo Série 2-E3 + BUGGIE
F - SPEED COMPENSATION ON THE 4 WHEELS
MH 20-4 Turbo Série 2-E3 MH 25-4 Turbo Série 2-E3
In the event of skidding, by holding this switch down in high position, the four drive wheels will turn at the same speed and hence
improve drivability, no matter what the condition of the ground.
When the speed compensation on the 4 wheels is engaged, always drive in straight line and slowly.
G - FRONT WORK LIGHTS OPTION
H - REVOLVING LIGHT OPTION
I - REAR WORK LIGHTS OPTION
A - HEATING FAN OPTION
This two speed switch allows warm or cold air to pass through the heating ventilators.
K - ADDITIONAL OR LOW-LEVEL HEATING OPTION
5 - HORN SWITCH
6 - IGNITION SWITCH
The key switch has five positions:
P - Ignition off, parking position.
O - Ignition switched off and I.C. engine stopped.
I - Ignition on.
II - Heating.
III - The I.C. engine starts, return to position I as soon as the key is released.
7 - BATTERY CUT-OFF
Enables the battery to be rapidly cut off from the electric circuit in the event of a short circuit or a fire.
MSI 20 T Série 2-E3 + BUGGIE
MSI 25 T Série 2-E3 + BUGGIE
MSI 30 T Série 2-E3 + BUGGIE
MSI 35 T Série 2-E3 + BUGGIE
MH 20-4 Turbo Série 2-E3
MH 25-4 Turbo Série 2-E3
P
A B C
D E
F G H I
J K
1
P
A B C
D E
F G H I
J K
1
