2-20

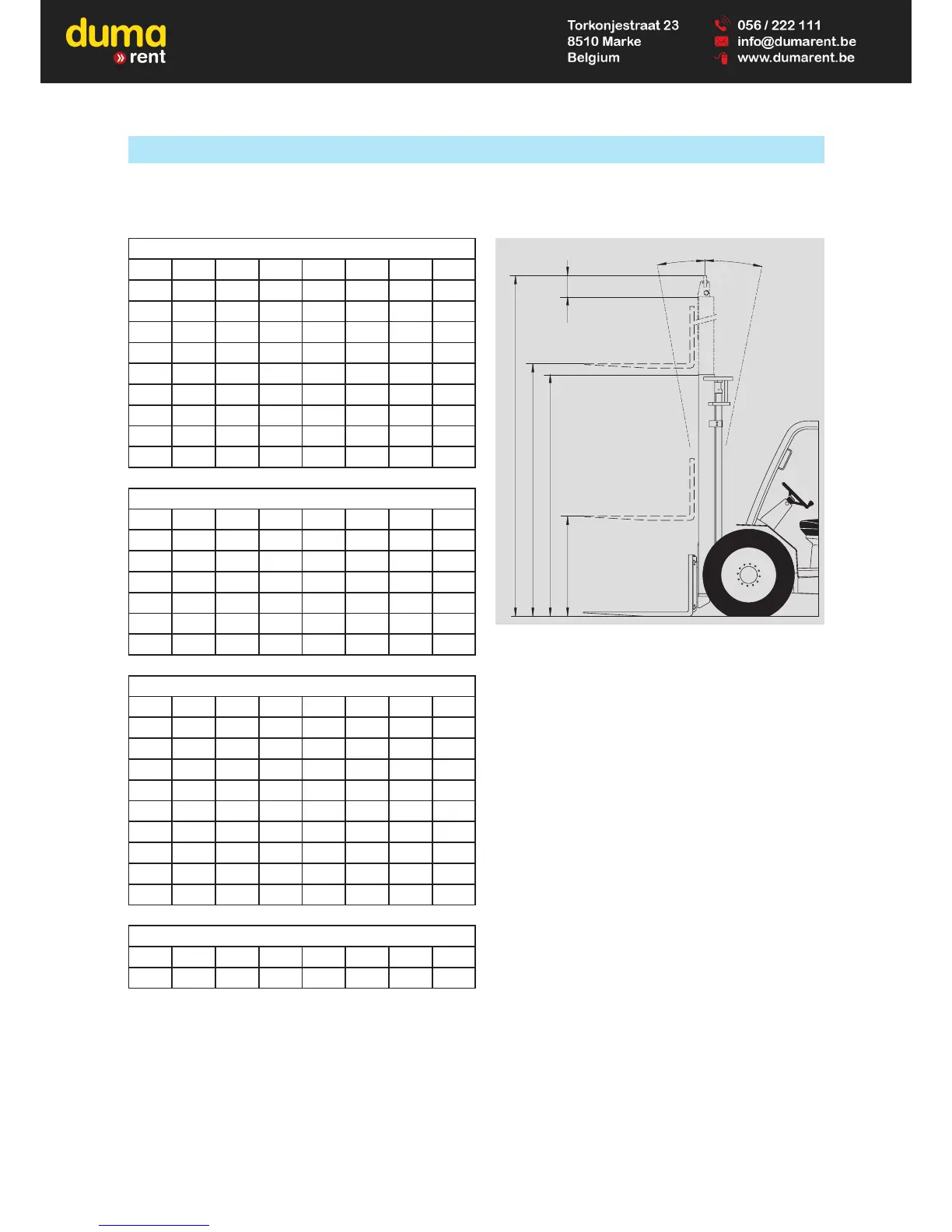

CHARACTERISTICS OF MASTS WITH ROLLERS
MSI 20 T Série 2-E3 MSI 20 T BUGGIE Série 2-E3
MSI 25 T Série 2-E3 MSI 25 T BUGGIE Série 2-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3030 10° 12° 130 2150 3831 241
3m30 3330 10° 12° 130 2300 4131 241
3m50 3530 10° 12° 130 2400 4331 241
3m70 3730 10° 12° 130 2560 4531 181
4m00 4030 10° 12° 130 2750 4831 141
4m50 4530 10° 12° 130 3000 5331 141
5m00 5030 6° 6° 130 3250 5831 141
5m50 5530 6° 6° 130 3500 6331 141
6m00 6030 6° 6° 130 3790 6831 101
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3040 10° 12° 1393 2150 3797 147
3m30 3340 10° 12° 1543 2300 4097 147
3m50 3540 10° 12° 1643 2400 4297 147
3m70 3740 10° 12° 1803 2560 4497 147
4m00 4040 10° 12° 1993 2750 4797 147
4m50 4540 10° 12° 2243 3000 5297 147
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3740 10° 12° 1221 1950 4469 49
4m00 4040 10° 12° 1321 2050 4769 49
4m30 4340 10° 12° 1421 2150 5069 49
4m70 4740 10° 12° 1571 2300 5469 49
5m00 5040 6° 6° 1671 2400 5769 49
5m50 5540 6° 6° 1831 2560 6269 49
6m00 6040 6° 6° 2021 2750 6769 49
6m50 6540 6° 6° 2271 3000 7269 49
7m00 7040 6° 6° 2521 3250 7769 49
TRIPLE MAST WITHOUT FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m30 3340 10° 12° 0 1840 4070 30
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with folded mast in mm
H1 : Overall height with spreaded out mast in mm
H2 : Carriage overshooting in mm
LL
H
HL
H1
H2
Z
Y
LL
H
HL
H1
H2
Z
Y
