2-48

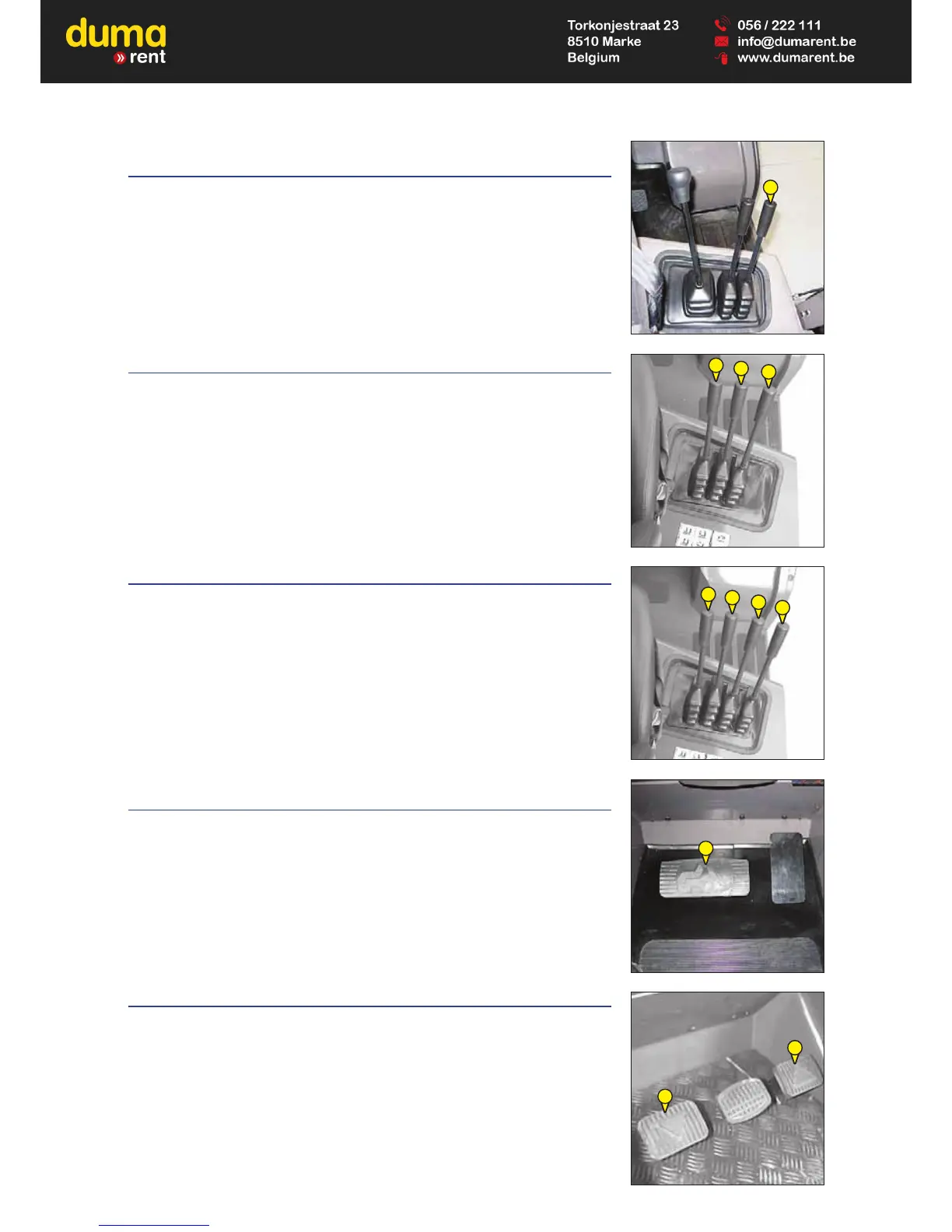

10 - ADAPTATION 4TH SINGLE-ACTING OR DOUBLE-ACTING DISTRIBUTOR
ELEMENT
ADDITIONAL ATTACHMENT
- The lever C forwards or backwards.
11 - ADAPTATION 3 ON LINE DISTRIBUTOR ELEMENTS
LIFTING OF THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
NOTE : The engine r.p.m. automatically increases when lifting the load.
TILT OF THE MAST
- The lever B backwards for backward tilting.
- The lever B forwards for for ward tilting.
ATTACHMENT
- The lever C forwards or backwards.
12 - ADAPTATION 4 ON LINE DISTRIBUTOR ELEMENTS
LIFTING OF THE LOAD
- The lever A backwards when lifting.
- The lever A forwards when lowering.
NOTE : The engine r.p.m. automatically increases when lifting the load.
TILT OF THE MAST
- The lever B backwards for backward tilting.
- The lever B forwards for for ward tilting.
ATTACHMENT
- The lever C forwards or backwards.
ADDITIONAL ATTACHMENT
-The lever D forwards or backwards.
13 - ADAPTATION «INCHING» HYDRAULIC TRANSMISSION CUT-OFF
This pedal operates in two steps :
- First, the pedal acts upon a hydraulic valve which progressively cuts off the hydrostatic
transmission so as to carry out a slow approach with all the I.C. engine output.
- Then, the pedal acts upon a hydraulic valve which progressively makes the pressure in the
brakes drop so as to immobilize the lift truck.
14 - FOOT ADAPTATION GEAR REVERSER
The lift truck must be stationary when operating the for ward/reverse lever.
FORWARD : Press the pedal 1 on the right.
REVERSE : Press the pedal 2 on the left.
NEUTRAL : To start the lift truck, do not press the reverser pedals.
