B9 - REAR AXLE
GREASE
MSI 20 T Série 2-E3 - MSI 20 T BUGGIE Série 2-E3
MSI 25 T Série 2-E3 - MSI 25 T BUGGIE Série 2-E3
MSI 30 T Série 2-E3 - MSI 30 T BUGGIE Série 2-E3
MSI 35 T Série 2-E3 - MSI 35 T BUGGIE Série 2-E3
- Clean and lubricate the following points with grease (see : 3 - MAINTENANCE : LUBRICANTS
AND FUEL) and remove the surplus of grease.

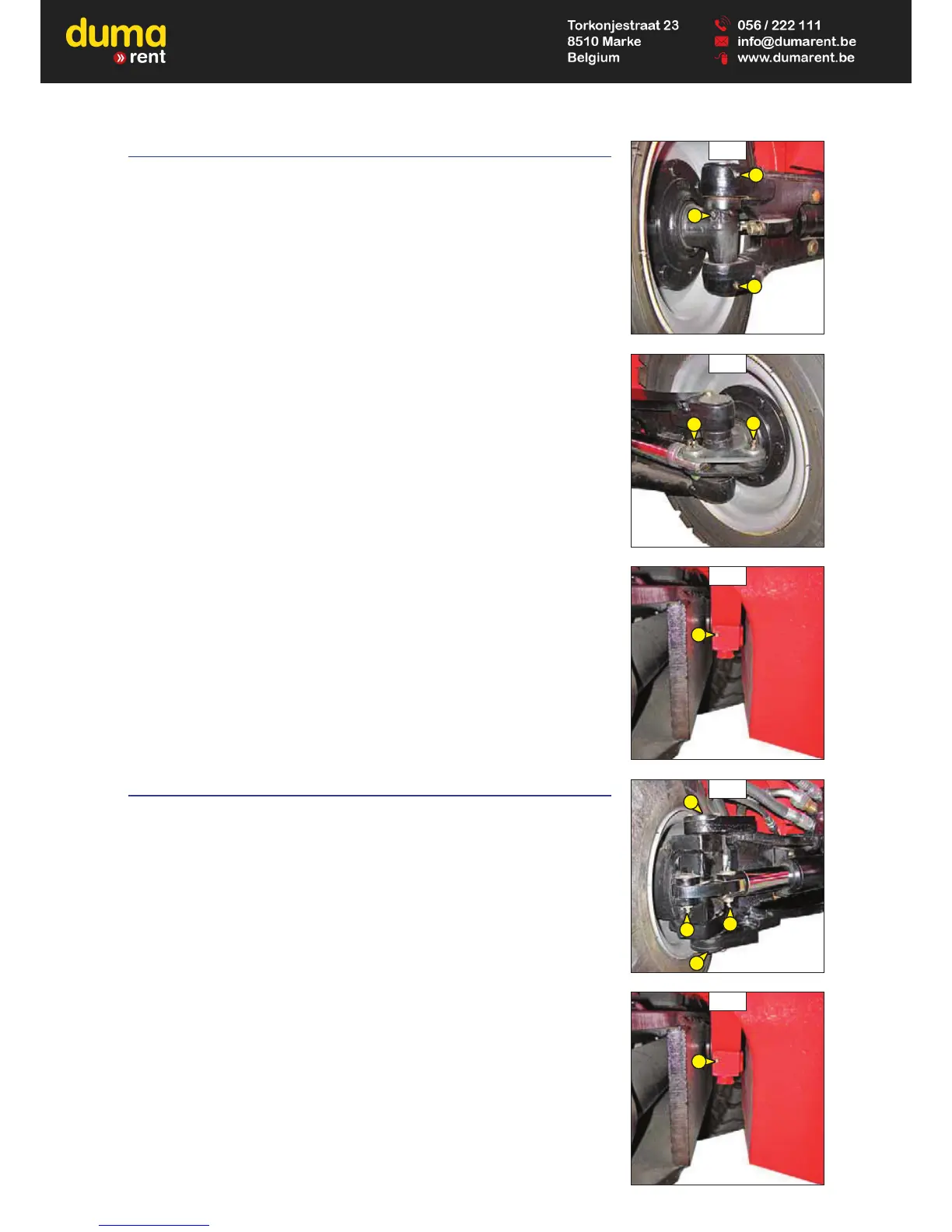

1 - Lubricators of the swivel pins (6 lubricators) (fig. B9/1).
2 - Lubricators of the steering cylinder head axles (4 lubricators) (fig. B9/2).
3 - Lubricators of the rear axle oscillation pin (2 lubricators) (fig. B9/3).
B9 - REAR AXLE
GREASE
MH 20-4 T BUGGIE Série 2-E3
MH 25-4 T BUGGIE Série 2-E3
- Clean and lubricate the following points with grease (see : 3 - MAINTENANCE : LUBRICANTS
AND FUEL) and remove the surplus of grease.
1 - Lubricators of the swivel pins (4 lubricators) (fig. B9/1).
2 - Lubricators of the steering cylinder head axles (4 lubricators) (fig. B9/1).
3 - Lubricators of the rear axle oscillation pin (2 lubricators) (fig. B9/2).
B9/1
1
1
1
B9/2
2
2
B9/3
3
B9/2
3
B9/1
2
2
1
1
