2-39
8 - ACCELERATOR PEDAL
9 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
This pedal operates in two steps:
- First, the pedal acts upon a hydraulic valve which progressively cuts off the hydrostatic transmission so as to carry out a slow
approach with all the I.C. engine output.
- Then, the pedal acts upon a hydraulic valve which progressively makes the pressure in the brakes drop so as to immobilise the
lift truck.

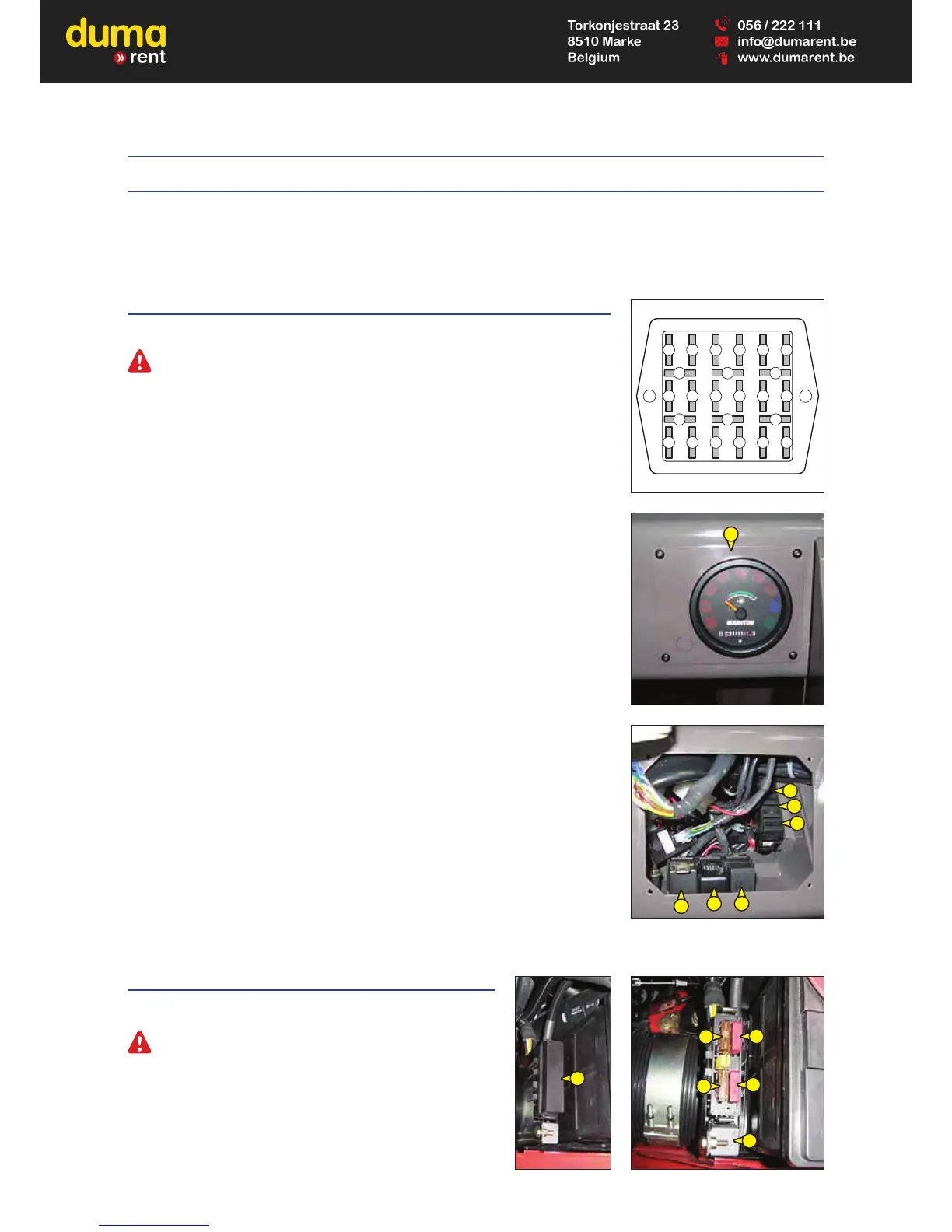

10 - FUSES AND RELAYS IN THE CAB
- Remove the casing to access fuses F1 to F24.
Always replace a faulty fuse with another of equivalent rating. Never use a fuse that has been
repaired.
F1 - OPTION Light switch power supply, horn and indicators (15A).
F2 - OPTION Hazard warning lights power supply (10A).
F3 - Rear windscreen wiper (7.5A).
F4 - Stop I.C. engine electrovalve (5A).
F5 - OPTION 1 Front work light (7.5 A).
- OPTION 2 Front work lights (15A).
F6 - OPTION Heating (15A).
F7 - Control panel (5A).
F8 - Front windscreen wiper and windscreen-washer (10A).
F9 - OPTION Indicator power supply (10A).
F10 - Reversing gear (10A).
- OPTION Reversing light (10A).
- OPTION Audible reversing alarm (10A).
F11 - Parking brake (10A).
- Sound alarm (10A).
- OPTION stop switch (10A).
F12 - OPTION Revolving light (7.5A).
F13 - OPTION Right-hand sidelights (5A).
F14 - OPTION Left-hand sidelights (5A).
F15 - OPTION Right-hand indicators (7.5A).
F16 - OPTION Left-hand indicators (7.5A).
F17 - OPTION Dipped headlights (10A).
F18 - OPTION Main headlights (10A).
F19 - OPTION Roof light (3A).
F20 - OPTION (+) permanent (3A).
F21 - OPTION 1 Rear work light (7.5A).
- OPTION 2 Rear work lights (15A).
F22 - Differential lock (5A).
MH 20-4/25-4 Turbo BUGGIE Série 2-E3
F23 - Starter (20A).
F24 - Overhead guard or cab lifting (5A).
- Remove plate 1 to access relays K1 to K6 and B2.
K1 - Safety system starting switch relay.
K2 - OPTION Flashing unit.
K3 - Reverse gear relay.
K5 - Transmission cut-off relay.
K6 - Forward gear relay.
B2 - Buzzer.
11 - FUSES AND RELAYS UNDER THE CAB
Remove cover 1 in order to gain access to the fuses.
Always replace a faulty fuse with another of equivalent rating. Never use a
fuse that has been repaired.
F25 - Preheating I.C. engine (50A).
F26 - Alternator (70A).
F27 - Lift truck electrical equipment (70A).
F28 - Overhead guard or cab lifting (50A).
K7 - Preheating relay.
- OPTION diesel decongealant relay.
- OPTION diesel decongealant fuse (15A).
7 8 9 10 11 12
1 2 3 4 5 6
13
22 2423
19 2120
14 15 16 17 18
