17 - LEVEL INDICATOR
Enables the operator to check that the lift truck is in the horizontal position.
18 - OVERHEAD GUARD LIFTING
Make sure that the mast is tilted forwards to a maximum and the engine is stopped before lifting the
overhead guard.

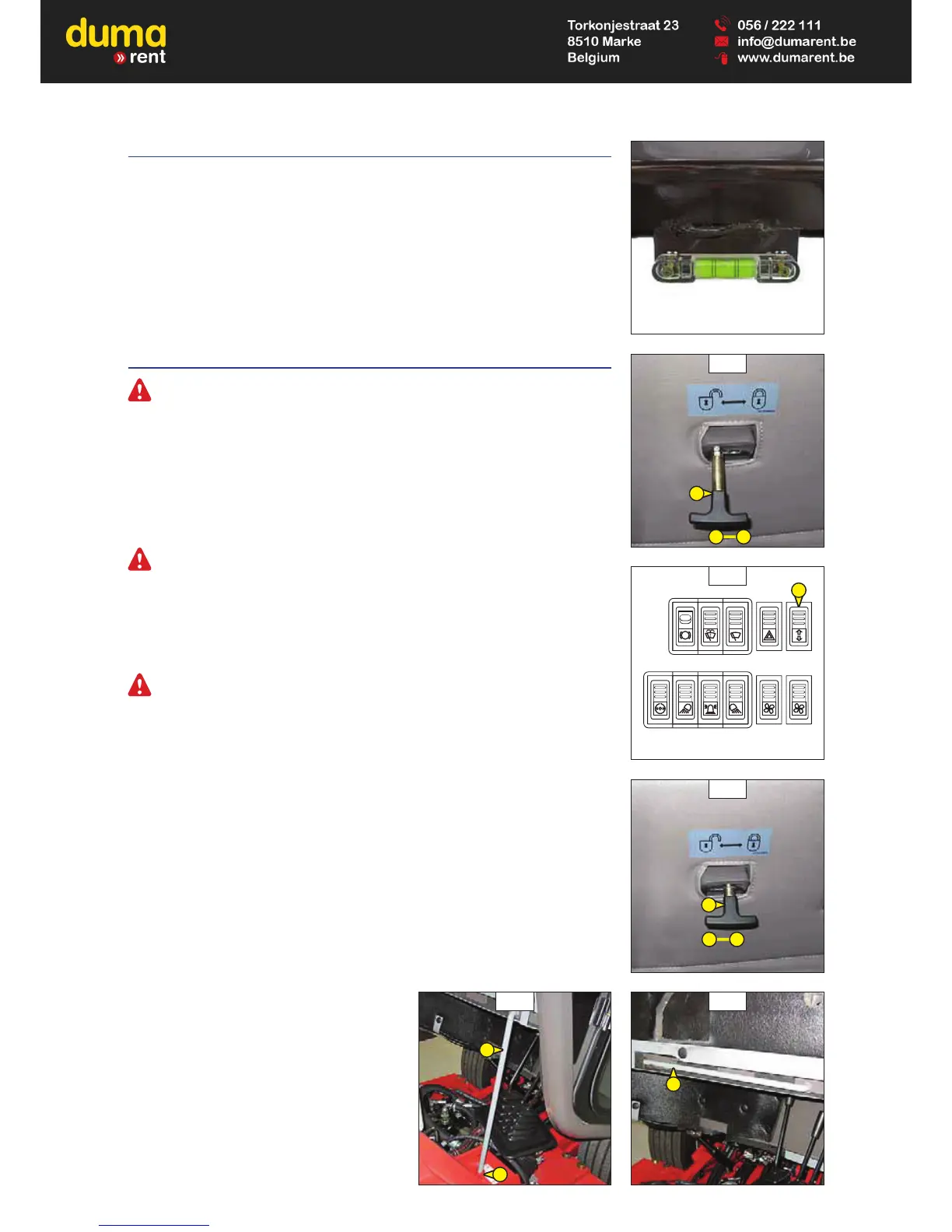

UNLOCKING THE OVERHEAD GUARD
- Keep the ignition on in the lift truck.
- Unlock the overhead guard by means of the lever 1 (fig. A) in position A.
LIFTING THE OVERHEAD GUARD
- Press the top of the switch 2 (fig. B) until complete lifting of the overhead guard.
- Put the lever 1 back into position B (fig. C).
- Place the safety prop 3 onto its stop 4 (fig. D).
Check that there is nothing laying on the driver’s seat, which could disrupt the operation.
LOWERING THE OVERHEAD GUARD
- Fold the safety prop back into its clip 5 (fig. E).
- Lower the overhead guard into its initial position by pressing the bottom of the switch 2
(fig. B).
- Ensure that the overhead guard is locked.
Check that nothing or nobody can impede the lowering of the overhead guard.
