2-21

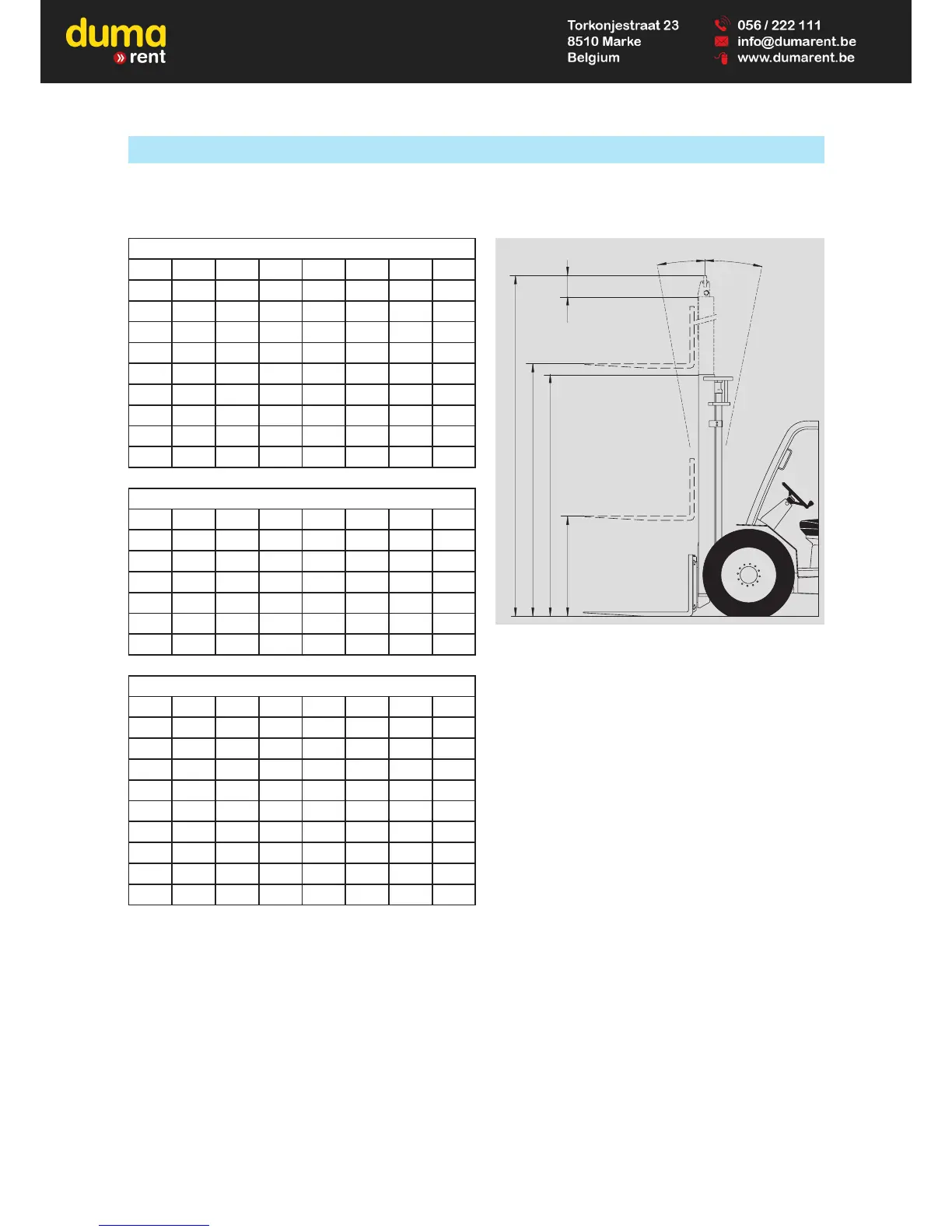

CHARACTERISTICS OF MASTS WITH ROLLERS
MSI 30 T Série 2-E3 MSI 30 T BUGGIE Série 2-E3
MSI 35 T Série 2-E3 MSI 35 T BUGGIE Série 2-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
3m00 3035 10° 12° 135 2150 3893 298
3m30 3335 10° 12° 135 2300 4193 298
3m50 3535 10° 12° 135 2400 4393 298
3m70 3735 10° 12° 135 2560 4593 238
4m00 4035 10° 12° 135 2750 4893 198
4m50 4535 10° 12° 135 3000 5393 198
5m00 5035 6° 6° 135 3250 5893 198
5m50 5535 6° 6° 135 3500 6393 198
6m00 6035 6° 6° 135 3790 6893 158
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3045 10° 12° 1396 2150 3799 159
3m30 3345 10° 12° 1546 2300 4099 159
3m50 3545 10° 12° 1646 2400 4299 159
3m70 3745 10° 12° 1806 2560 4499 159
4m00 4045 10° 12° 1996 2750 4799 159
4m50 4545 10° 12° 2246 3000 5299 159
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3745 10° 12° 1297 2050 4500 38
4m00 4045 10° 12° 1397 2150 4800 38
4m30 4345 10° 12° 1547 2300 5100 38
4m70 4745 10° 12° 1647 2400 5500 38
5m00 5045 6° 6° 1807 2560 5800 38
5m50 5545 6° 6° 1997 2750 6300 38
6m00 6045 6° 6° 2247 3000 6800 38
6m50 6545 6° 6° 2497 3250 7300 38
7m00 7045 6° 6° 2747 3500 7800 38
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with folded mast in mm
H1 : Overall height with spreaded out mast in mm
H2 : Carriage overshooting in mm
LL
H
HL
H1
H2
Z
Y
