2-22

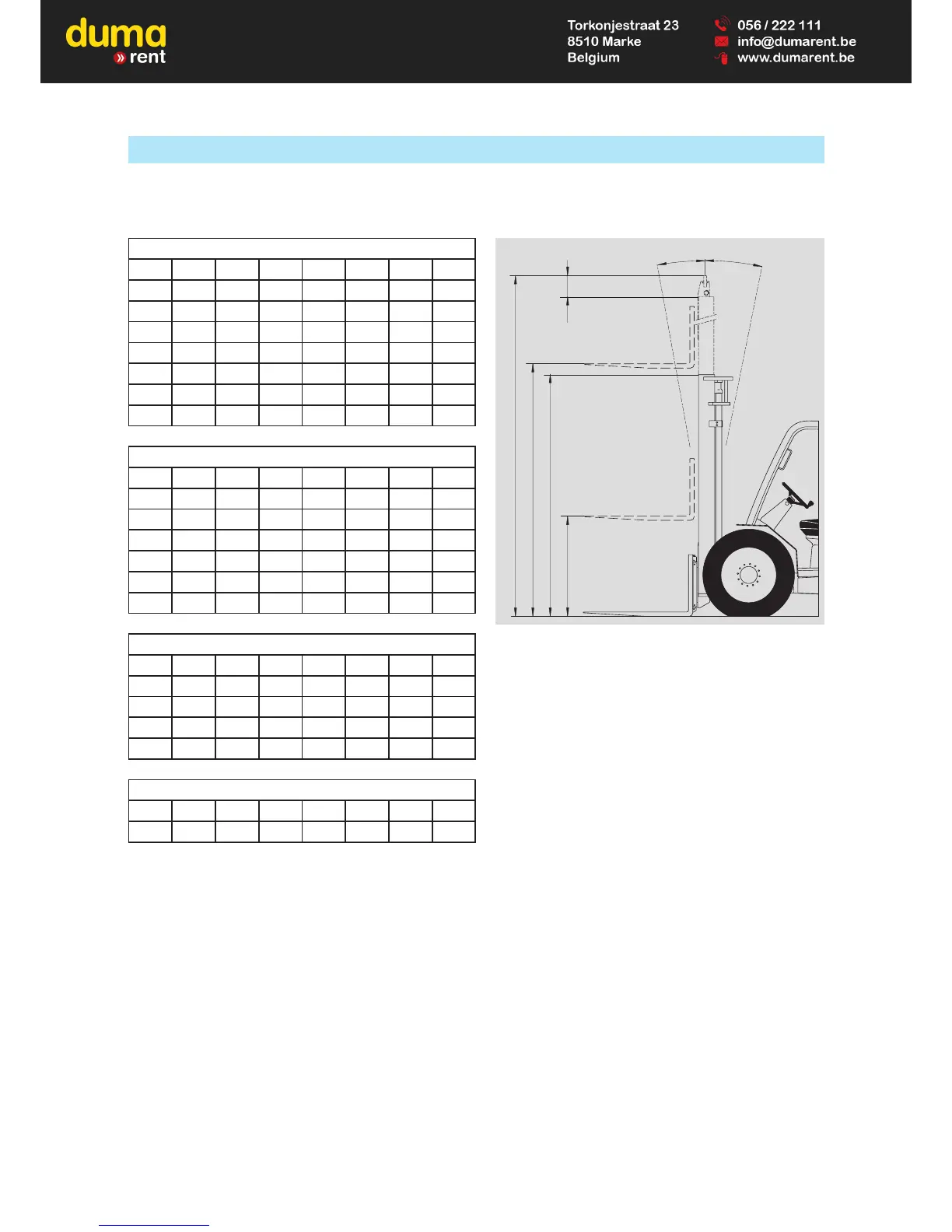

CHARACTERISTICS OF MASTS WITH ROLLERS
MH 20-4 T BUGGIE Série 2-E3
MH 25-4 T BUGGIE Série 2-E3
DOUBLE MAST WITH ALL-ROUND VISION
MAST HL Z Y LL H H1 H2
2m70 2730 10° 12° 130 1995 3531 246
3m00 3030 10° 12° 130 2145 3831 246
3m30 3330 10° 12° 130 2295 4131 246
3m50 3530 10° 12° 130 2395 4331 246
3m70 3730 10° 12° 130 2555 4531 186
4m00 4030 10° 12° 130 2745 4831 146
4m50 4530 10° 12° 130 2995 5331 146
DOUBLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m00 3040 10° 12° 1388 2145 3797 152
3m30 3340 10° 12° 1538 2295 4097 152
3m50 3540 10° 12° 1638 2395 4297 152
3m70 3730 10° 12° 1798 2555 4497 152
4m00 4040 10° 12° 1988 2745 4797 152
4m50 4540 10° 12° 2238 2995 5297 152
TRIPLE MAST WITH TOTAL FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m70 3740 10° 12° 1216 1945 4469 54
4m00 4040 10° 12° 1316 2045 4769 54
4m30 4340 10° 12° 1416 2145 5069 54
4m70 4740 10° 12° 1566 2295 5469 54
TRIPLE MAST WITHOUT FREE-ACTING LIFT
MAST HL Z Y LL H H1 H2
3m30 3340 10° 12° 0 1835 4070 35
HL : Lift height in mm
Z : Forward tilting
Y : Backward tilting
LL : Free-acting lift in mm
H : Overall height with folded mast in mm
H1 : Overall height with spreaded out mast in mm
H2 : Carriage overshooting in mm
LL
H
HL
H1
H2
Z
Y
