Manitou MT 1435 EASY 75D ST3B S1 User Manual

3 - 28

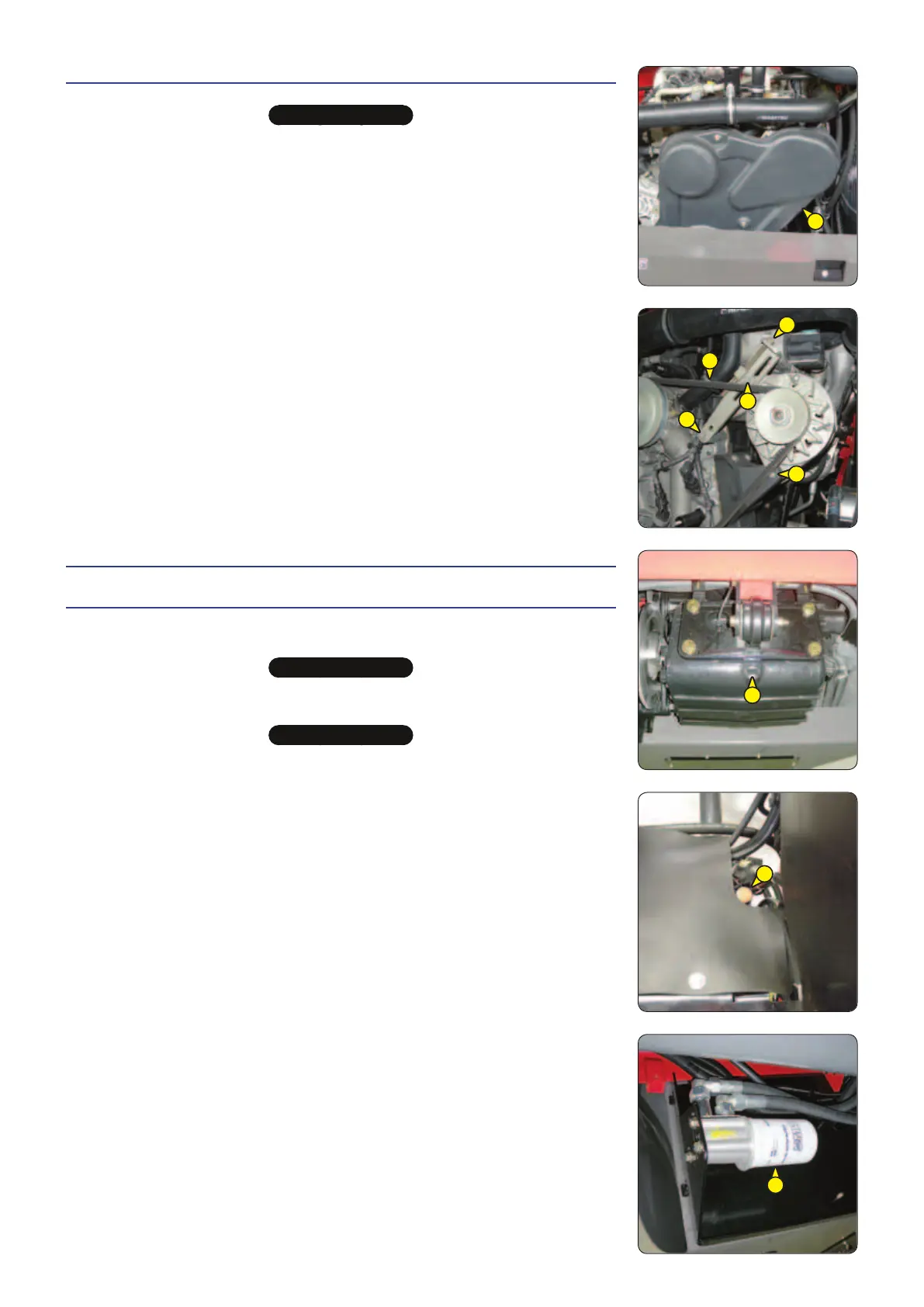

E7 – GEAR BOX OIL
DRAIN
E8 – GEAR BOX OIL FILTER
REPLACE
Place the lift truck on level ground with the engine stopped and the gear box oil still warm.

IMPORTANT

Dispose of the waste oil in an ecological manner.
Hand-tighten the oil filter and lock in place with a quarter turn.

IMPORTANT

Raise the boom and place the boom safety wedge on the rod of the lifting cylinder (see: 1 - OPERATING AND SAFETY
INSTRUCTIONS: LIFT TRUCK MAINTENANCE INSTRUCTIONS).
DRAINING THE OIL
- Place a container under drain plug 1 and unscrew the plug.
- Remove gauge 2 to ensure proper emptying.
REPLACEMENT OF THE FILTER
- Unscrew and discard gear box oil filter 3, together with its seal.
- Clean the filter holder with a clean, lint-free cloth.
- Lightly grease the new seal before refitting the new oil filter (see: 3 - MAINTENANCE:
FILTERS, CARTRIDGES AND BELTS) on its bracket.
FILLING UP THE OIL
- Refit and tighten the drain plug 1 (tightening torque 34 to 54 N.m).
- Fill up with oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) through filler port 2.
- Start the engine and leave it at idle.
- Check for possible leaks from the drain plug and the oil filter.
- Check the correct level against the MAX mark on the dipstick 2.
- Top up the level if necessary.
E6 – ALTERNATOR/FAN/CRANKSHAFT BELT
REPLACE

IMPORTANT

If the alternator belt has to be changed, check the tension again after the first 20 hours of operation.
- Open the engine bonnet.
- Remove the protective casing 1.
- Loosen the screws 2 and 3 by two to three thread turns.
- Loosen the screw 4 to swivel the alternator assembly so as to free the belt 5.
- Remove the belt and replace with a new one (see: 3 - MAINTENANCE: FILTER
ELEMENTS AND BELTS).
- Adjust the belt tension between the crankshaft and alternator pulleys.
- Tighten the screw 4 to tighten the belt to the tension required.
- Under a normal pressure exerted with the thumb (45 N), the belt should move
approximately 10 mm.
- Re-tighten the screws 2 (tightening torque 30 N.m) and the screw 3 (tightening
torque 42 N.m).
- Refit the protective casing 1.
1
3
2
2
3
4
5
2
1
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
