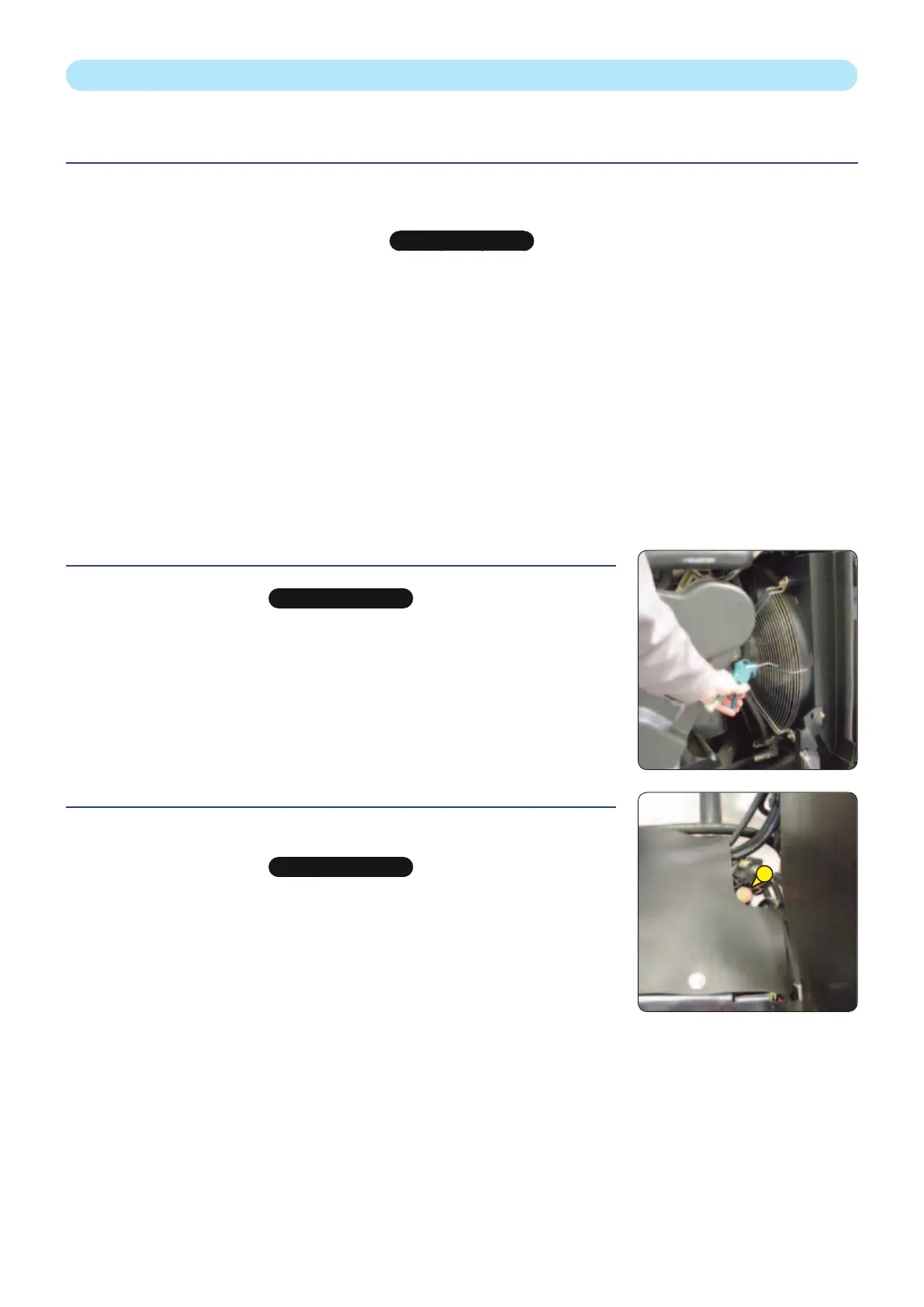

B - EVERY 50 HOURS OF SERVICE
Carry out the operations described previously as well as the following operations.
B1 – DRY AIR FILTER CARTRIDGE
CHECK - CLEAN
In case of use in a heavily dust laden atmosphere, there are pre-filtration cartridges (see: 3 - MAINTENANCE: FILTERS CARTRIDGES
AND BELTS). Also, the checking and cleaning periodicity of the cartridge must be reduced.

IMPORTANT

If the clogging indicator light comes on, this operation must be carried out as quickly as possible (1 hour maximum). The cartridge must not be cleaned more than seven
times, after which the cartridge must be changed. Never use the lift truck without an air filter or with a damaged air filter.
Respect the safety distance of 30 mm between the air jet and the cartridge to avoid tearing or making a hole in the cartridge. The cartridge must not be blown anywhere
near the air filter box. Never clean the cartridge by tapping it against a hard surface. Your eyes must be protected during this intervention.
Never clean the dry air filter cartridge by washing it in liquid. Do not clean by any means the safety cartridge located inside the filter cartridge, change it for a new one if it
is clogged or damaged
- For the dismantling and reassembly of the cartridge, see: 3 - MAINTENANCE: E1 - AIR FILTER CARTRIDGE.
- Clean the filter cartridge using a compressed air jet (max. pressure 3 bar) directed from the top to the bottom and from
the inside towards the outside at a minimum distance of 30 mm from the cartridge wall.
- Cleaning is completed when there is no more dust on the cartridge.
- Clean the cartridge seal surfaces with a damp, clean lint-free cloth and grease with a silicone lubricant (MANITOU part
no.: 479292).
- Check visually the outer condition of the air filter and its mounts. Verify the condition of the hoses and their mounts also.
B2 – RADIATOR CORE
CLEAN

IMPORTANT

In a polluting atmosphere, clean the radiator core every day. Do not use a water jet or high-pressure steam as this
could damage the radiator fins.
- Open the engine bonnet.
- If necessary, clean the suction grid on the engine hood.
- Using a soft cloth, clean the radiator in order to remove as much dirt as possible.
- Clean the radiator using a compressed air jet aimed from the engine towards the
radiator, in the opposite direction to the cooling air flow.
B3 – GEAR BOX OIL LEVEL
CHECK
Place the lift truck on level ground with the boom raised and the engine running.

IMPORTANT

Raise the boom and place the boom safety wedge on the rod of the lifting cylinder (see: 1 - INSTRUCTIONS AND SAFETY
RECOMMENDATIONS: FORKLIFT TRUCK MAINTENANCE INSTRUCTIONS).
- Remove dipstick 1 by unscrewing it.
- Wipe the dipstick and check the correct level against the MAX mark.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the same hole.
- Retigthen the gauge 1.
- Visually check that there is no leakage or seepage of oil in the gearbox.
1
647563 (22/08/2017) MT 1435/1440/1840 EASY 75D ST3B S1
