Manitou MT-X 625 2-E3 Series User Manual

3-18

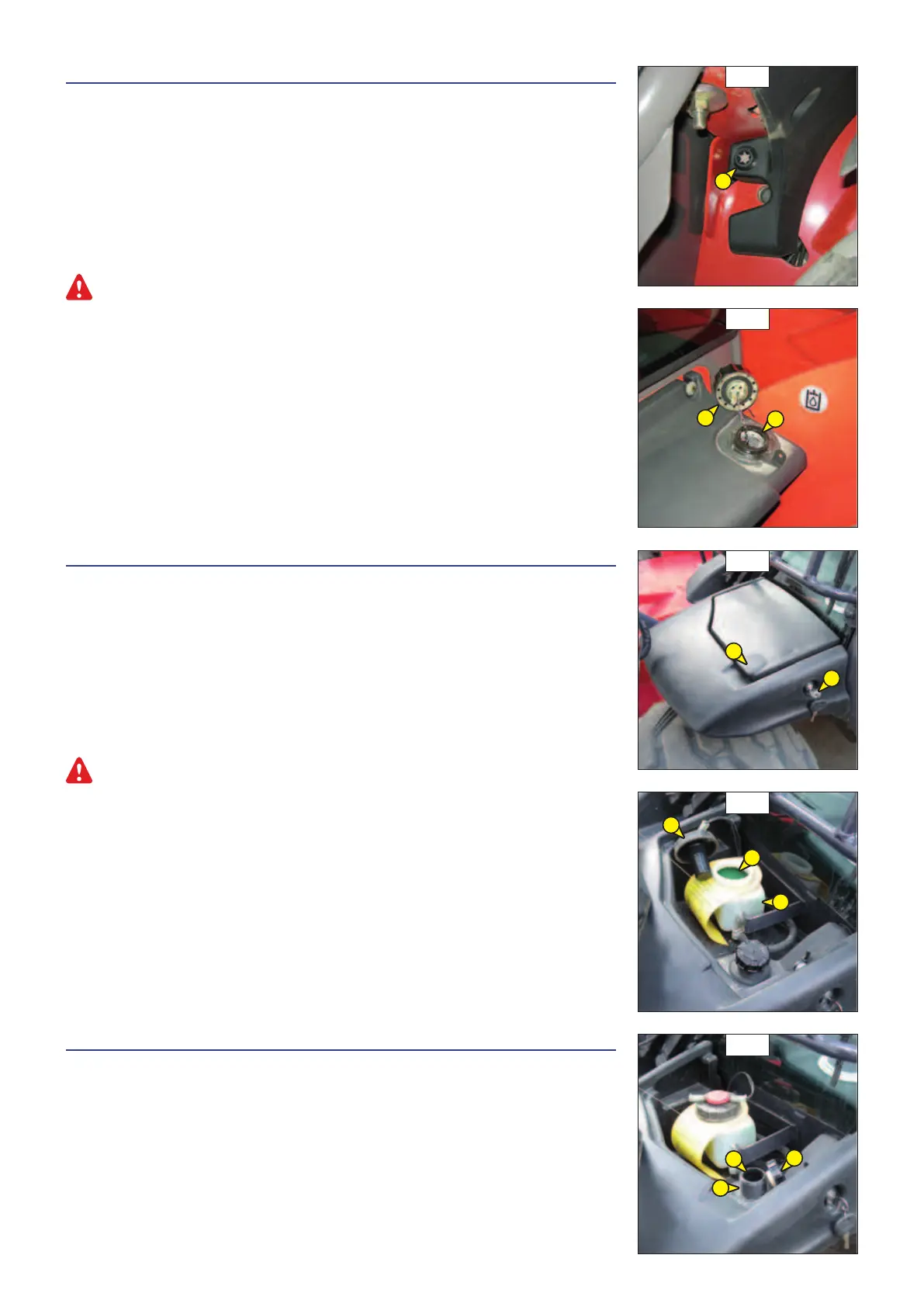

B5 - HYDRAULIC OIL LEVEL
CHECK
If necessary, remove and reconnect the hydraulic attachment (see: 4 - OPTIONAL ATTACHMENTS
FOR USE WITH THE RANGE: PICKING UP THE ATTACHMENTS). Place the lift truck on level ground
with the engine stopped and the jib retracted and lowered to its maximum extent.
- Refer to gauge 1 (fig. B5/1).
- The oil level is correct when it is at the level of the red point.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 2 (fig. B5/2).
- Add oil through filler port 3 (fig. B5/2).
Use a clean funnel and clean the underside of the oil drum before filling.
- Replace the cap.
- Check visually that there is no leakage in the tank and pipes.
Always maintain the oil level at maximum as cooling depends on the oil flowing through the
tank.
B6 - BRAKE OIL LEVEL
CHECK
Place the lift truck on level ground.
- Remove protective casing 1 (fig. B6/1) using key 2 (fig. B6/1).
- Check tank 3 (fig. B6/2). The correct level must stand at the MAX level in the tank.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Remove cap 4 (fig. B6/2).
- Add oil through filler port 5 (fig. B6/2).
- Put the cap back.
- Check visually that there is no leakage in the tank and pipes.
If the braking oil level is abnormally low, consult your dealer.
B7 - WINDSCREEN WASHER LIQUID LEVEL
CHECK
- Remove cap 1 (fig. B7).
- Visually check the level in tank 2 (fig. B7).
- If necessary add windscreen washer liquid (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL)
through filler port 3 (fig. B7).
- Put the cap back.
B5/2
3
2
B5/1
1
B7
1
B6/1
1
2
B6/2
5
3
4
2
3
647421 (22/08/2017) MT-X 625 Série 2-E3 + COMFORT
