3-28
F - EVERY 2000 HOURS OF SERVICE
Carry out the operations described previously as well as the following operations.
F1 - SAFETY DRY AIR FILTER CARTRIDGE
CHANGE
- For the disassembly and reassembly of the dry air filter cartridge, see: 3 - MAINTENANCE: D3 -
AIR FILTER CARTRIDGE.

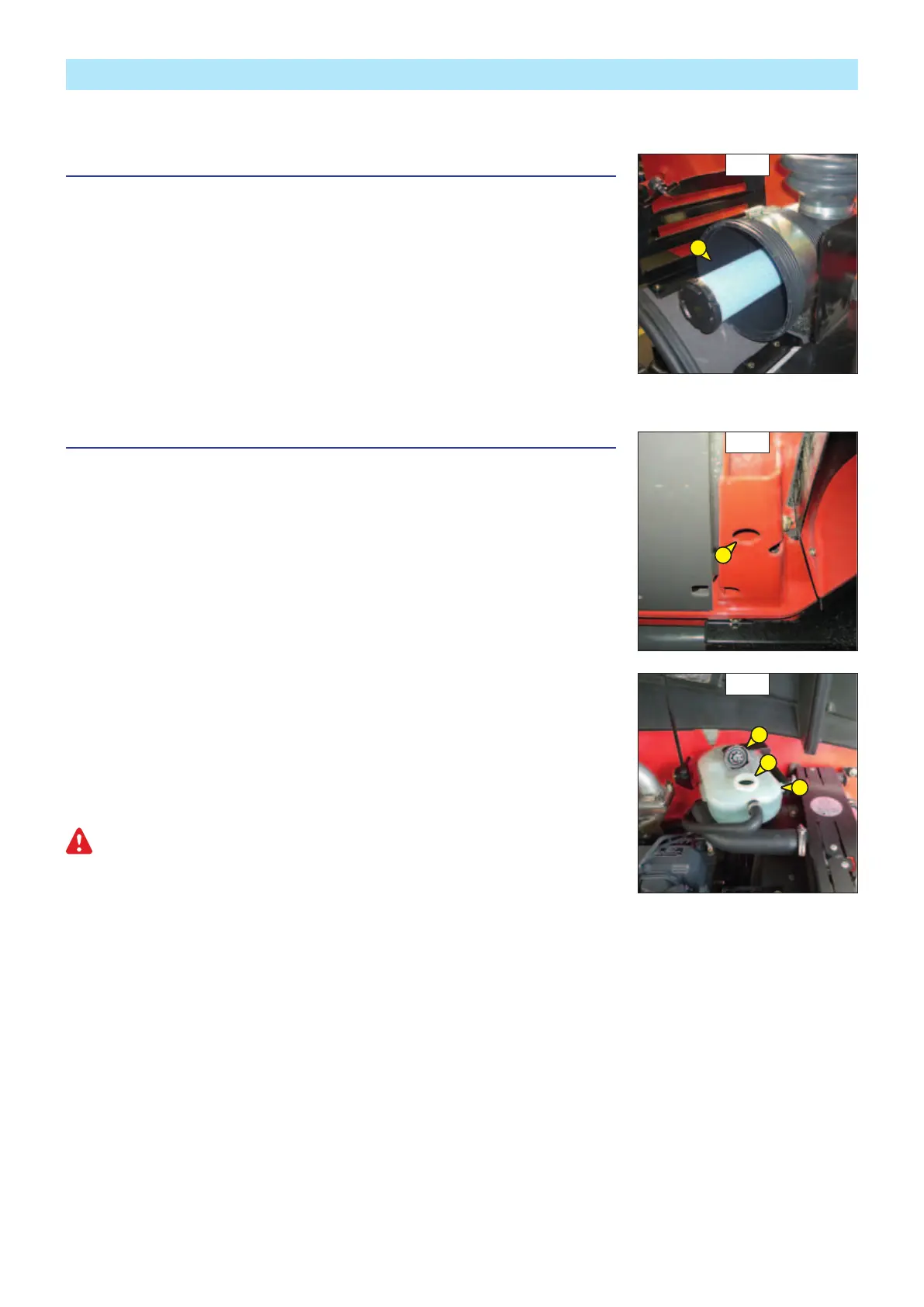

- Gently remove the dry air filter safety cartridge 1 (fig. F1), taking care to avoid spilling the dust.
- Clean the gasket surface on the filter with a damp, clean lint-free cloth.
- Check the condition of the new safety cartridge before fitting (see: 3 - MAINTENANCE: FILTERS
AND BELTS).
- Insert the cartridge within the axis of the filter and push it home, pressing against the outer
edge and not the centre.
NOTE: The safety cartridge changing frequency is given for information only. It must be changed
for every two changes of the dry air filter cartridge.
F2 - COOLING LIQUID
DRAIN
These operations are to be carried out if necessary or every two years at the beginning of winter.
Place the lift truck on level ground with the I.C. engine stopped and cold.
DRAINING THE LIQUID
- Place a container under drain plug 1 (fig. F2/1) and unscrew the plug.
- Open the I.C. engine bonnet.
- Remove expansion pan filler plug 2 (fig. F2/2).
- Let the cooling circuit drain entirely while ensuring that the ports do not get clogged.
- Check the condition of the hoses as well as the fastening devices and change the hoses if
necessary.
- Rinse the circuit with clean water and use a cleaning agent if necessary.
FILLING THE LIQUID
- Retighten drain plug 1 (fig. F2/1) (tightening torque 20 N.m).
- Slowly fill up the circuit with cooling liquid (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) to
mid-height on expansion pan 3 (fig. F1/2) through filler port 4 (fig. F2/2).
- Put back filler plug 2 (fig. F2/2).
- Run the I.C. engine at idle for a few minutes.
- Check for any possible leaks.
- Check the level and refill if necessary.
The I.C. engine does not contain any corrosion resistor and must be filled during the whole year with a mixture
containing 25 % of ethylene glycol-based antifreeze.
F2/1
1
F2/2
3
2
4
F1
1
647421 (22/08/2017)
MT-X 625 Série 2-E3 + COMFORT
