1-13
STACKY operating and safety instructions2012.12

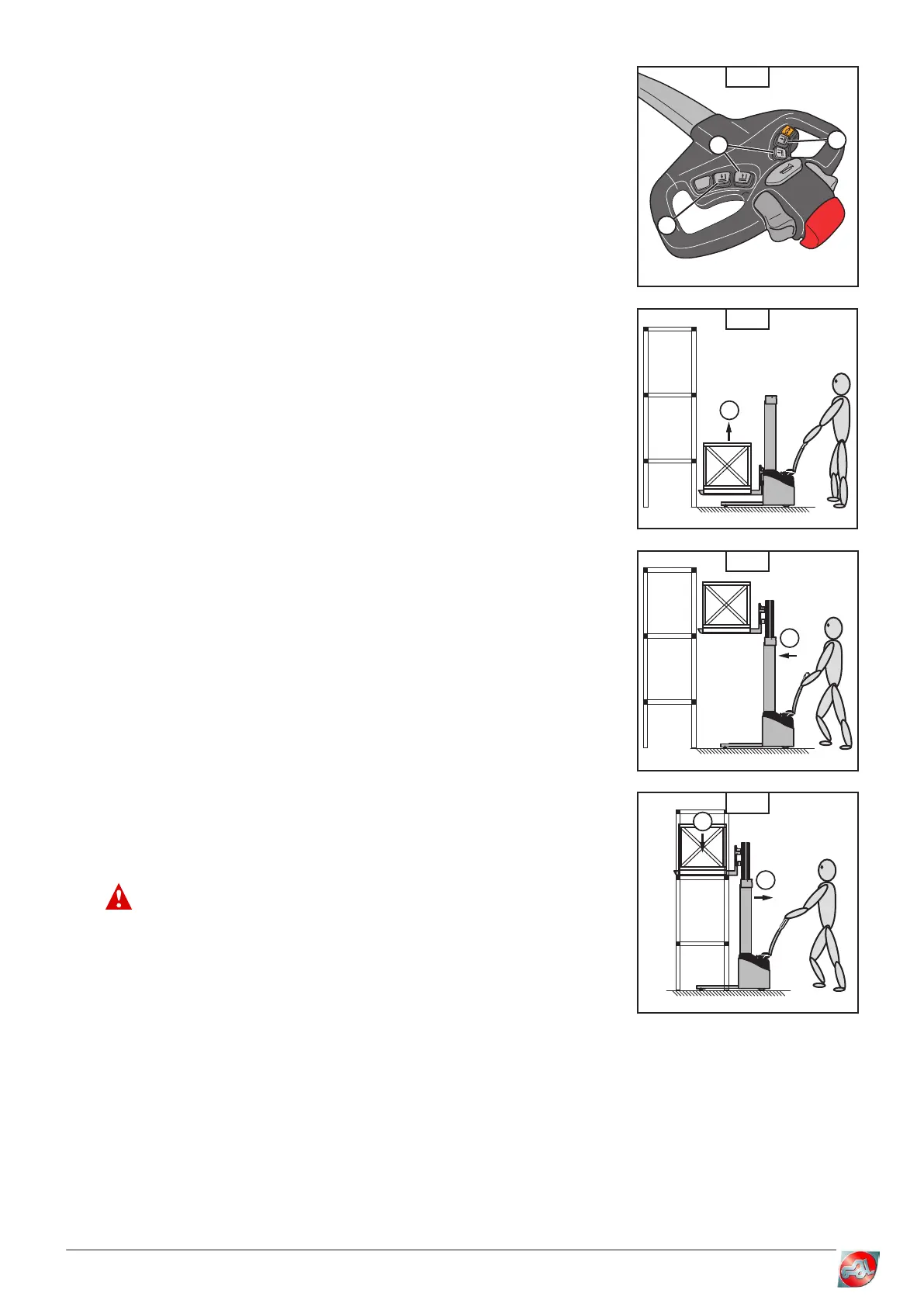

D - PICKING UP AND SETTING DOWN A LOAD
Lifting and lowering are controlled by means of two buttons situated on the tiller
arm (1) and (2) (g. D1). These controls are duplicated to be equally accessible for left
or right hand use.
- To lift the load, press button (1) (g. D1),
- To lower the load, press button (2) (g. D1).
E - SETTING-DOWN A LOAD IN A STORAGE STRUCTURE
- As you approach the storage structure, slow the stacker to arrive at moderate speed,
- Position the stacker in front of its storage location,
- Check that no obstacle risks to be caught by the load, the fork or the tool during
lifting,
- Raise the load so that the underside is higher than the bearing surface (1) (g. E1).
Check that, when it is inserted into its housing, the load does not risk to catch any
lateral or horizontal part of the support structure.
- Operate a buttery control switch to move slowly forward until the load is above
its intended position, taking care not to knock against the storage structure with
the stacker (2) (g. E2),
- Slowly set down the load (3) (g. E3),
- Check the lifting chain tension : if it is slack, the fork is resting on the storage
structure. Raise the fork slightly by lightly pressing the UP button,
- Ensure that the area of manoeuvre is unobstructed,
- Slowly reverse the stacker by operating a buttery control switch to release the fork
(4) (g. F3), checking that it will not catch any obstacle as it is lowered,
- Lower the fork or tool into the down position.
In order to avoid the risk of destabilising or overturning the stacker during these
operations, take care not to :
•catch the load or tool,
•hit the bearing surface with the fork or the tool,
•drag the fork or tool across the bearing surface.
3
4
E3
2
E2
1
2
2
D1
1
E1
