Maintenance - STACKY 2012.12
D - YEARLY
Carry out the operations described previously as well as the following operations :
D1 - MAST
CHECK
SK 10 FR D28 and SK 10 LE D28
Check the clearance between the moving frame and the chassis. If necessary, adjust :
- the nylon slide pad (1) (g. D1/1),
- the nylon slide pad (2) (g. D1/1),
- the brass screws (3) (g. D1/2).
Check the condition of the runner rollers (2) (g. D1/1).
D2 - CARRIAGE
CHECK
Check the carriage’s side clearance. If necessary, add a washer between the nylon pad and the roller to eliminate any play.
D3 - SPEED OF HYDRAULIC MOVEMENTS
CHECK
Check the rate of ascent and the rate of descent of the tool against the values contained in the table of technical characteristics on
page 2-8. If the measured values dier from the nominal values, contact your dealer.
D4 - OPERATION OF PRESSURE LIMITER
CHECK
Check the operation of the pressure limiter by verifying that the stacker cannot lift a load exceeding the rated capacity.
D5 - HYDRAULIC UNIT OIL
DRAIN
Drain and replace the oil of the hydraulic unit. Check that the fork or the tool is in the down position before draining the system.
Draw out the oil from the tank using a suction device.
Ensure that drainage products are removed and disposed of in accordance with current environmental protection decrees.

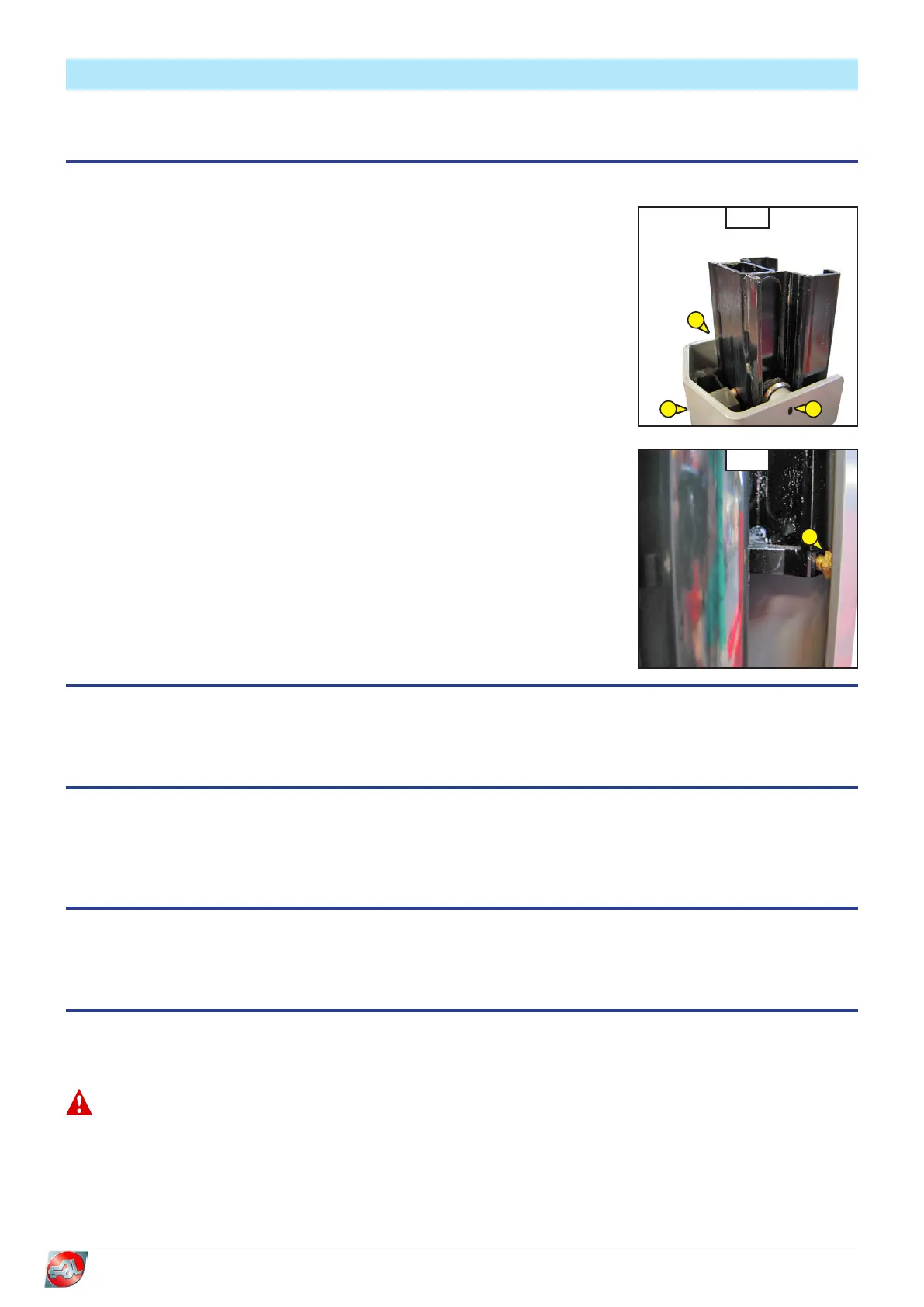

D1/1
2
2
1
D1/2
3
