4 Models and Parts
Operating and Installation Instructions UL 26
Stacking kit parts: Base with casters

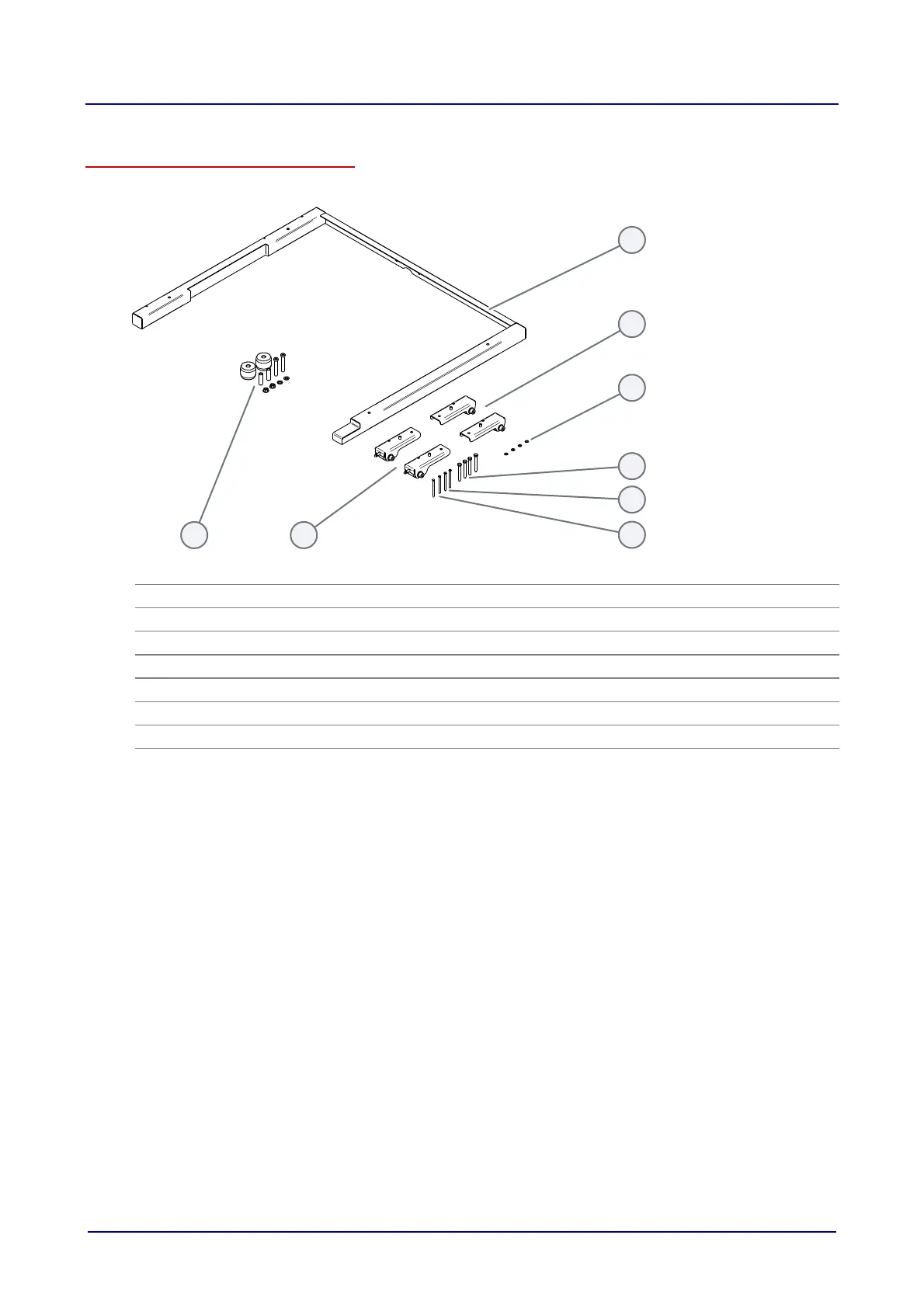

The following figure shows a base with casters for a stacking kit:
78
1
2
3
4
5
6
No. Designation Qty.
1
Upper part of base frame 1
2
Rear casters (4” or 6” tall) 2
3
e S8 A2 P2 P3 Schnorr locking washer 4
4
DIN 931A2 P4 M8 x 70 hex bolt 4
5
DIN 7976 A2 P4 4.8 x 90 hex washer head self-tapping screw 2
6
DIN 931A2 P4 M5 x 75 hex bolt 2
7
Front casters (4” or 6” tall) 2
8
Leveling kit 1
