6 Installation
Operating and Installation Instructions UL 34

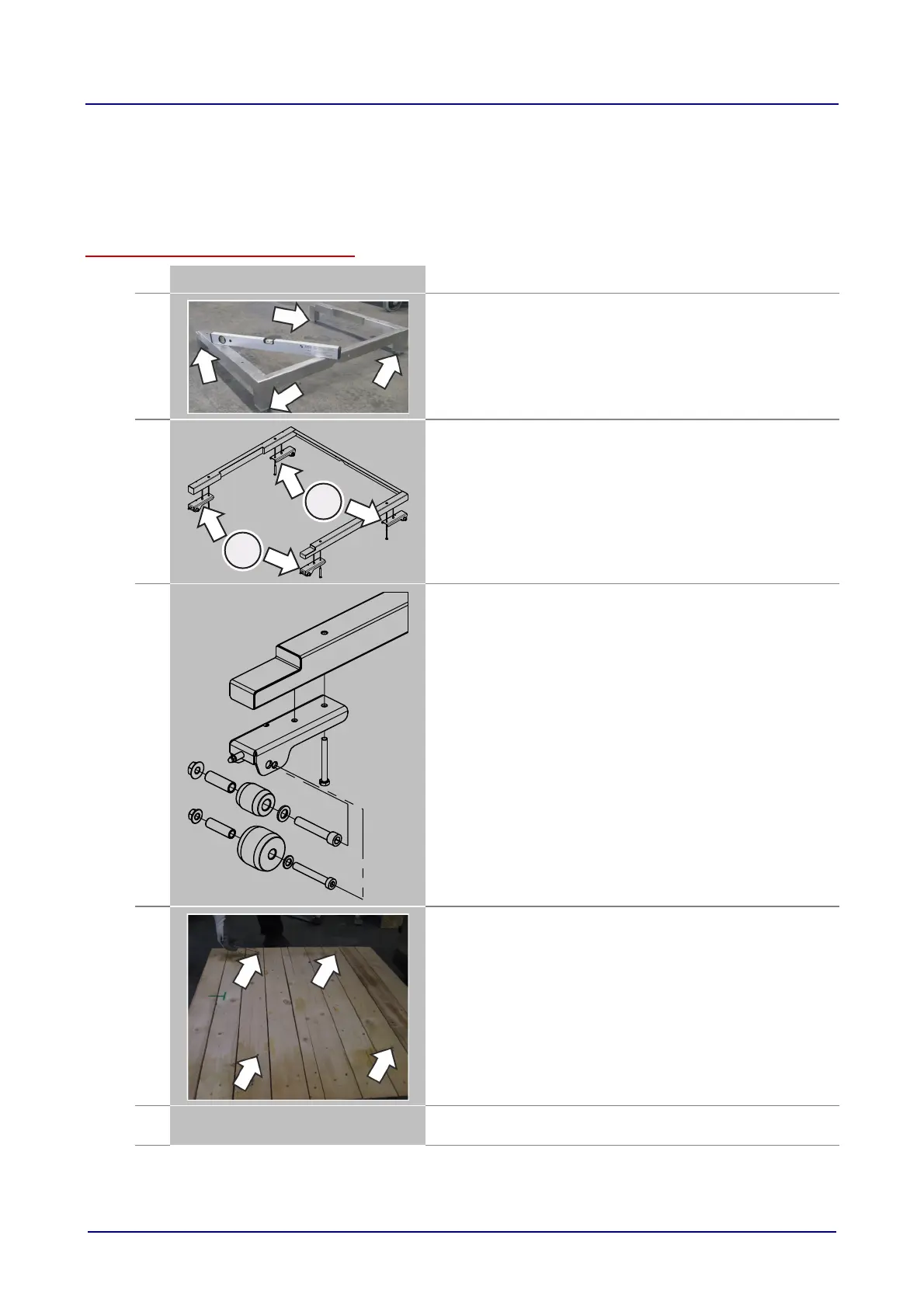

6.2 The bottom combi oven is mounted on the base
The figures below show an electrical stacking kit for stacking a size 6.10 unit on a size 6.10 unit. They
are used as an example representing all unit sizes and unit models:
Preparing the bottom unit
1.
Use a spirit level to level the stacking kit’s base frame.
1.a
Stacking kit with 6" and 12" foot height
Place the stacking kit base frame at the intended installation
location and use the height-adjustable feet to level it.
1.b
1
2
Stacking kit with 4” or 6” tall casters
Use the nuts included with the installation kit to install the cast-
ers on the stacking kit’s base frame (long casters (1) in the
back, short casters (2) in the front).
Place the base frame with casters at the intended installation
location and use a spirit level to level it
You can replace the smaller casters with the bigger ones as
necessary (in the front or in the back) in order to level the base
frame.
2.
Remove all screws from the transport pallet.
3.
Make sure that the bottom unit’s oven cavity is empty (rack,
suction panel, sheet pans, etc.).
