6 Installation
Operating and Installation Instructions UL 38
6.3 Installing the center adapter
The figures below show an electrical stacking kit for stacking a size 6.10 unit on a size 6.10 unit. They
are used as an example representing all unit sizes and unit models:

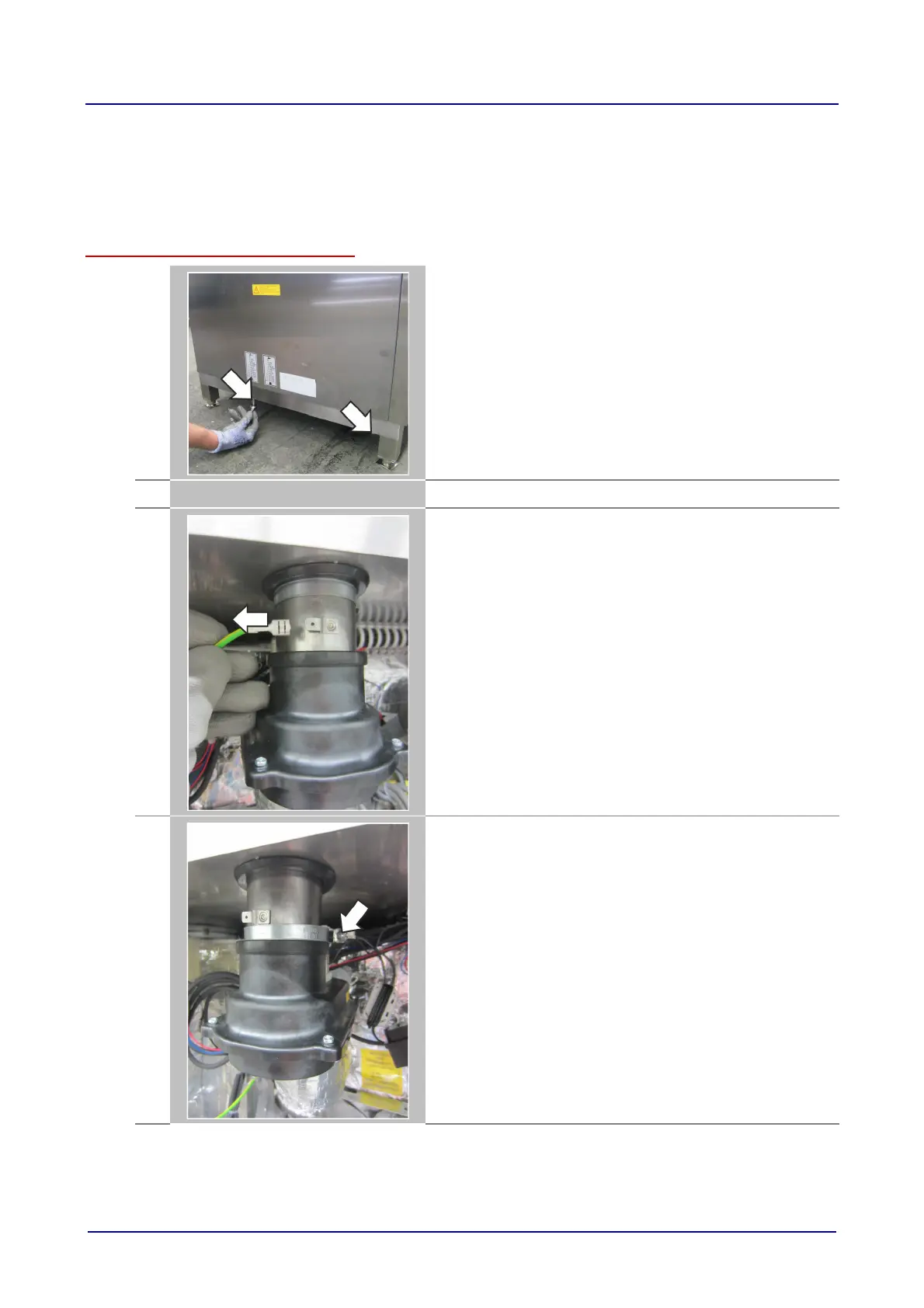

Preparation steps
1.
Remove the two long screws on the left side of the base.
Remove the left side panel.
2.
10.10/10.20:
2.a
Disconnect the grounding cable from the spade terminal on the
dry air intake.
2.b
Use a socket wrench with a width across flats of 7 mm to loos-
en the screw on the dry air intake’s hose clamp until the clamp
can be pulled over the spade terminal.
