6 Installation
Operating and Installation Instructions UL 43
Installing the moisture removal box

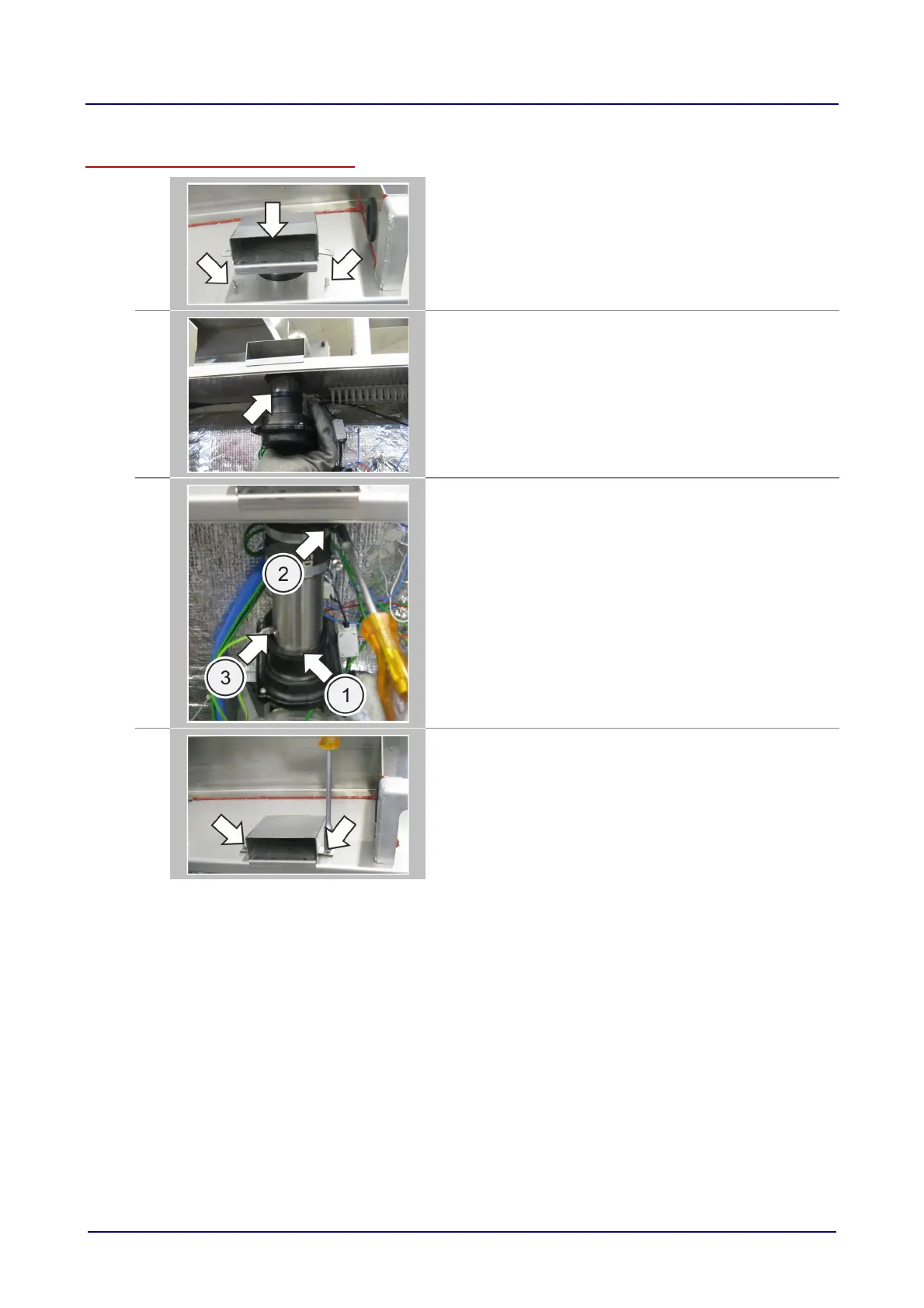

1.
Carefully insert the moisture removal box.
Make sure that the gasket is in its correct position and has a
proper fit.
2.a
6.10/6.20:
Insert the lower pipe end of the moisture removal box into the
dehumidifier valve’s gasket.
2.b
10.10/10.20:
Insert the lower end of the intake pipe into the dehumidifier
valve’s gasket (1).
Use a socket wrench with a width across flats of 7 mm together
with the hose sleeve and the hose clamp (2) to connect the
intake pipe and the lower pipe end of the moisture removal box.
Connect the grounding cable to the intake pipe’s spade terminal
(3).
3.
Use the serrated flange nuts to fasten the moisture removal box
at the top of the unit.
