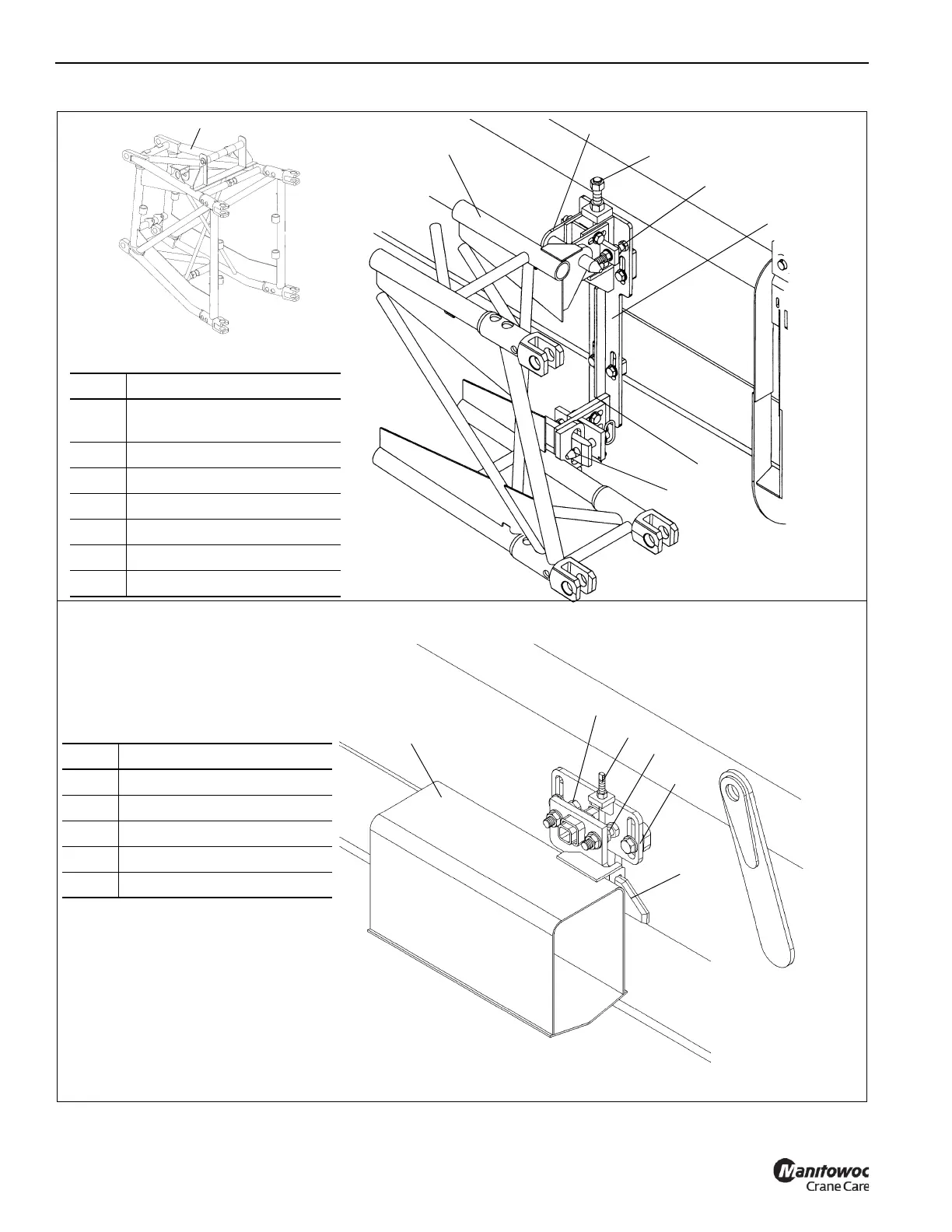

SET-UP AND INSTALLATION RT770E OPERATOR MANUAL
4-10 Published 04-04-2017, Control # 446-09
DETAIL A
DETAIL B
6058
6058
5
6
4
2
2
3
1
7
Item Description
1
Boom Extension Base
Section
2 Adjusting Bolt
3 Upper Hanger
4 Main Hanger
5 Lower Support
6 Lock Hitch Pin
7 Adapter
6160
Item Description
1 Boom Extension Fly Section
2 Adjusting Bolt
3 Adjusting Bolts
4 Front Mount
5 Hanger
1
3
2
3
4
5
FIGURE 4-10 continued
