RT770E OPERATOR MANUAL SET-UP AND INSTALLATION
4
1
3
2
4
3
4
5
6
6
7
7
8
9
6055

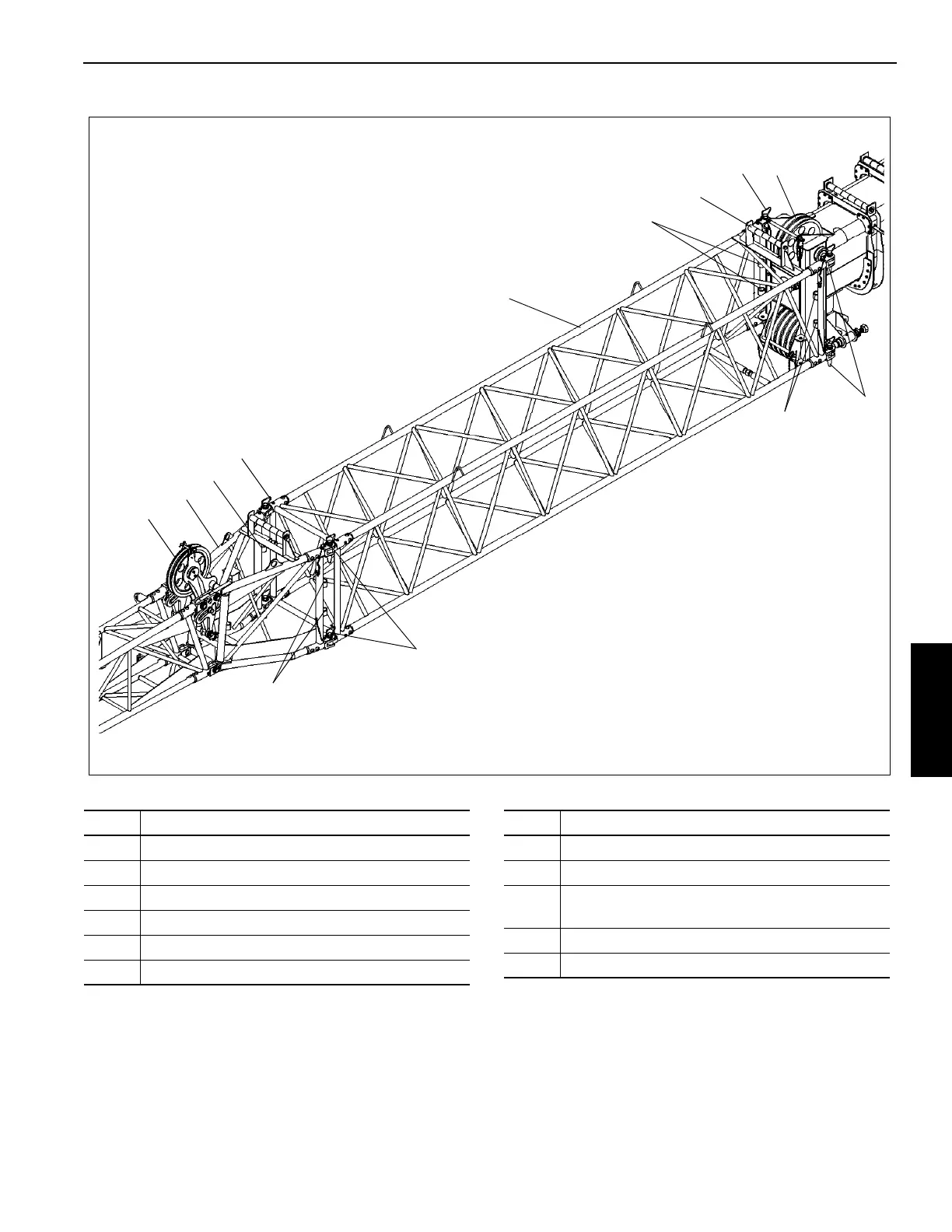

FIGURE 4-18
Item Description
1 Boom Nose Upper Sheaves
2 Cable Roller
3 Insert Attachment Pins
4 Insert Attachment Pins Stowage Lugs
5 6.1 m (20 ft) Insert
6 Bi-Fold Extension Attachment Pins
Item Description
7 Boom Nose Lower Sheaves
8 Boom Extension Attachment Pins
9
Bi-Fold Extension Attachment Pins Stowage
Lugs
10 Offset Link Pins
11 Zero Degree Offset Holes
