Manitowoc J250 User Manual

Section 2 Installation References
2-3
ICE STORAGE BINS

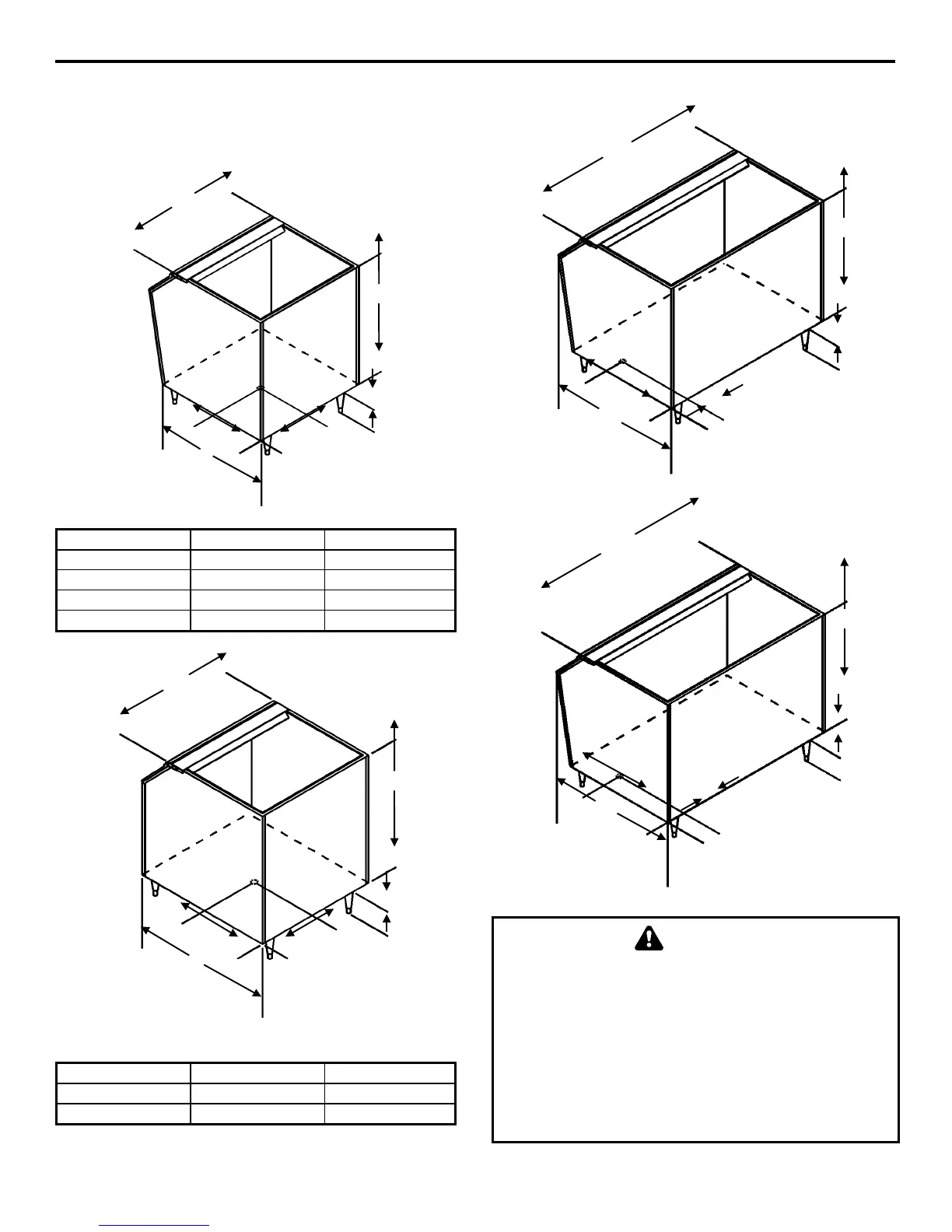

C170/C400/C470/C570 Ice Storage Bins
Bin Model Dimension A Dimension B
C170 28.25 19.06
C400 34.00 31.37
C470 29.50 44.00
C570 34.00 44.00
C320/C420 Ice Storage Bins
NOTE: All measurements are in inches.
Bin Model Dimension A Dimension B
C320 34.00 32.00
C420 34.00 44.00
C730 Ice Storage Bin
C970 Ice Storage Bin
WARNING
All Manitowoc ice machines require an ice storage
system with an ice deflector. The J1300 and J1800
require a Manitowoc Ice Deflector Kit (K00092)
when installing with a non-Manitowoc ice storage
system.
For other Manitowoc Ice Machines, do not use a
non-Manitowoc ice storage system before
confirming with the manufacturer that their ice
30.00
SV1187
SV1272
SV1296
SV1497
B
14.00
14.00
A
6.50
22.00
B
11.00
17.00
A
6.50
40.00
6.75
16.00
31.50
4.25
42.00
44.00
6.75
17.00
52.00
4.25
48.25
