Section 2Installation References
2-10
Water Connections and Drains
CAUTION
Plumbing must conform to local and state
codes.
Location
Water
Temperature
Water
Pressure
Female Pipe Fitting
(F.P.T.)
1
Size
Tube Size Up to Ice
Machine Fitting
Ice making
water inlet
33°F (0.6°C) min.
90°F (32.2°C) max
20 psi min.
80 psi max
3/8” F.P.T. 3/8”
Ice making
water drain
- - 1/2” F.P.T. 1/2”
Condenser
water inlet
33°F (0.6°C) min.
90°F (32.2°C) max
20 psi min.
150 psi max
J1300/J1800 - 1/2” F.P.T.
All Others - 3/8” F.P.T.
Condenser
Water Drain
- - 1/2” F.P.T. 1/2”
Bin Drain - - 3/4” F.P.T. 3/4”
1
F.P.T. - Female Pipe Thread

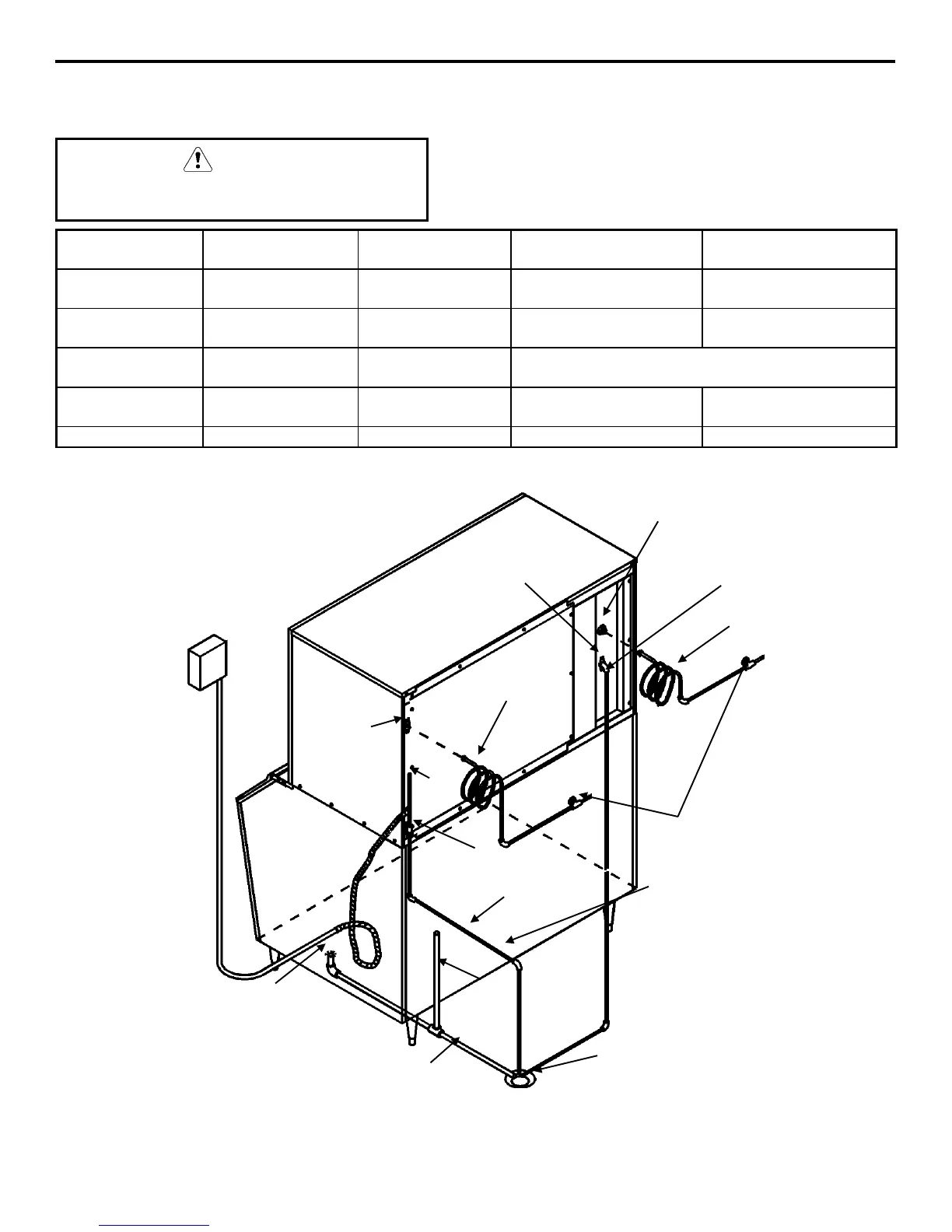

CONDENSER WATER
DRAIN FITTING
1/2” F.P.T.
SV1304
CONDENSER WATER
INLET FITTING
1/2” F.P.T.
CONDENSER WATER
DRAIN TUBING
1/2” MIN. I.D.
CONDENSER WATER
INLET TUBING
1/2” MIN. I.D.
WATER
SHUT OFF
V
ALVE
ICE MAKING WATER
DRAIN FITTING
1/2” F.P.T.
ICE MAKING WATER
DRAIN TUBING
1/2” MIN. I.D.
OPEN, TRAPPED OR
V
ENTED DRAIN
VENT
SLOPE
BIN DRAIN
TUBING
3/4” MIN. I.D.
BIN DRAIN
FITTING
3/4” F.P.T.
18”
V
ENT
ICE MAKING WATER
INLET FITTING
3/8” F.P.T.
ICE MAKING WATER
INLET TUBING
3/8” MIN. I.D.

Manitowoc J250 Specifications

General

Brand	Manitowoc
Model	J250
Category	Ice Maker
Language	English
