Section 3 Maintenance
3-11

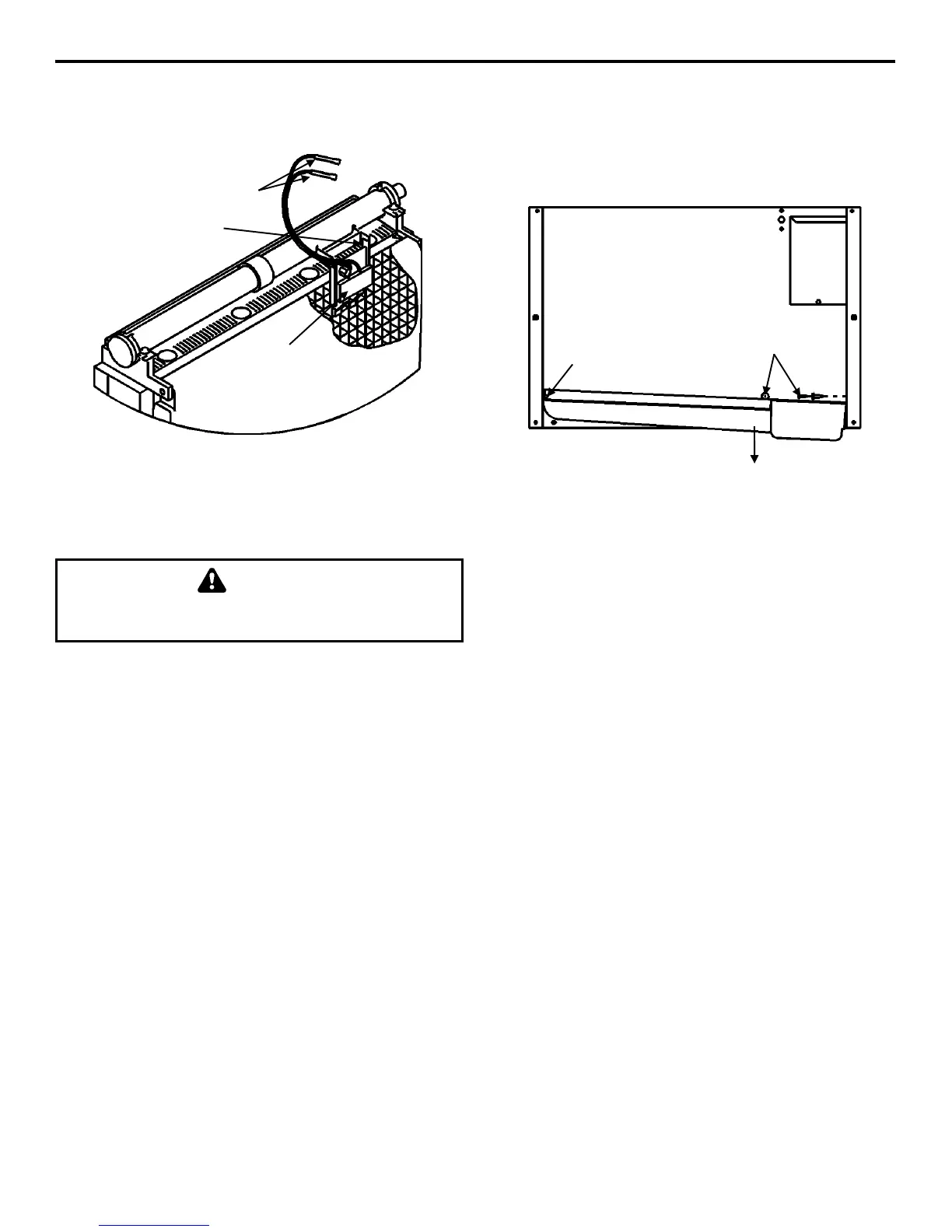

ICE THICKNESS PROBE
1. Compress the side of the ice thickness probe near
the top hinge pin and remove it from the bracket.
Ice Thickness Probe Removal
NOTE: At this stage, the ice thickness probe can
easily be cleaned. If complete removal is desired,
continue with step 2 below.
WARNING
Disconnect the electric power to the ice machine at
the electric service switch box.
2. Disconnect the wire leads from the control board
inside the electrical control box.
WATER TROUGH
Water trough removal varies slightly by model. The
following procedure is typical.
1. Remove the push-in screws holding the trough in
place.
Water Trough Removal
2. Lower the right side of the trough into the bin.
3. Disengage the left side of the trough from its
holding pegs and remove the trough.
DISCONNECT
WIRE LEADS
SV1212
SV1216
COMPRESS
HINGE PIN
ICE THICKNESS
PROBE
3. REMOVE
TROUGH
FROM PEGS
1. REMOVE
PUSH-IN
SCREWS
2. LOWER RIGHT
SIDE OF TROUGH
To Next Page
