Section 3 Maintenance
3-13

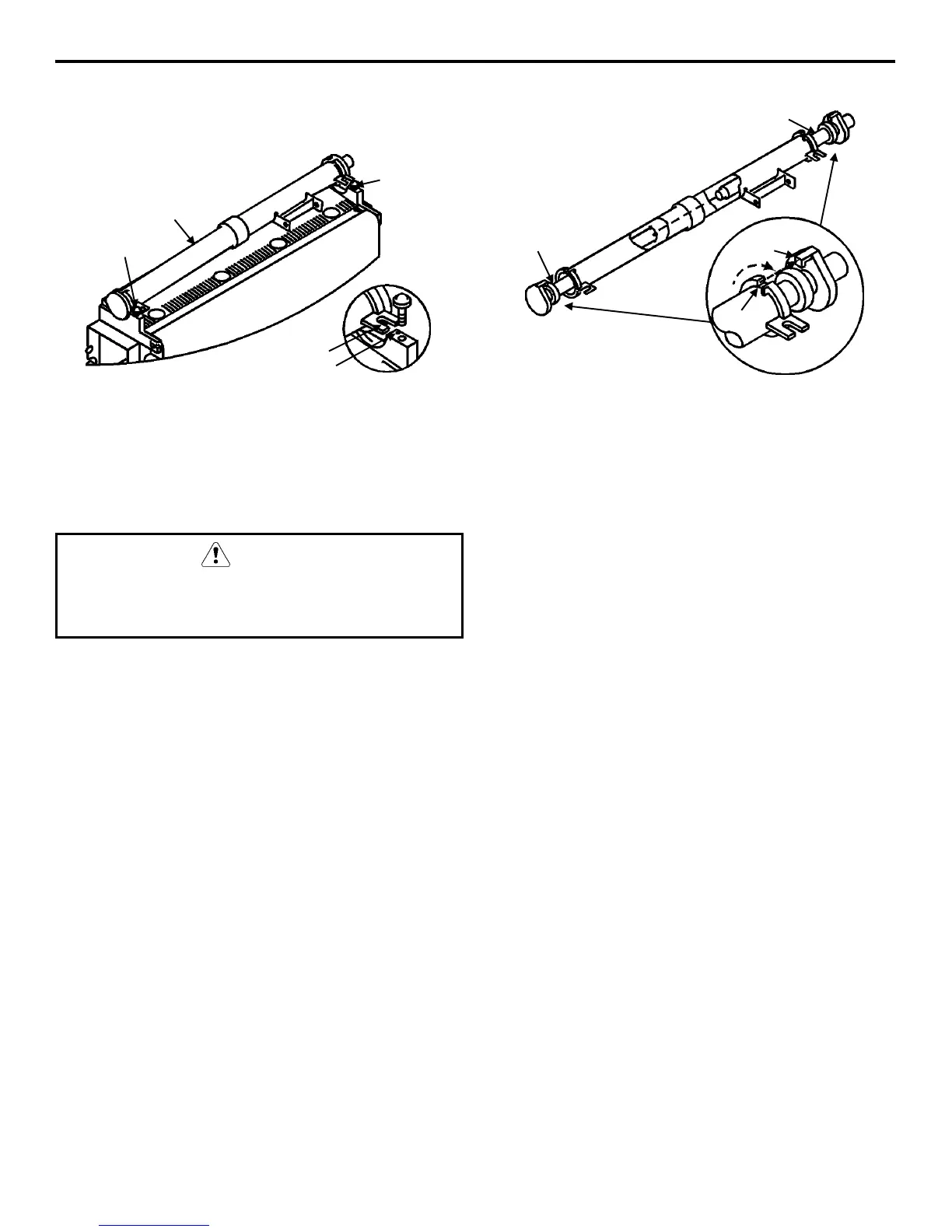

WATER DISTRIBUTION TUBE
1. Disconnect the water hose from the distribution
tube.
Water Distribution Tube Removal
2. Loosen the two thumbscrews which secure the
distribution tube.
3. Lift the right side of the distribution tube up off
the locating pin, then slide it back and to the right.
CAUTION
Do not force this removal. Be sure the locating pin
is clear of the hole before sliding the distribution
tube out.
4. Disassemble for cleaning.
Water Distribution Tube Disassembly
A. Twist both of the inner tube ends until the
tabs line up with the keyways.
B. Pull the inner tube ends outward.
SV1210
SV1211
THUMBSCRE
DISTRIBUTION
TUBE
THUMBSCRE
LOCATING PIN
LOCATING HOLE
INNER
TUBE
INNER
TUBE
KEYWAY
TAB
To Next Page
