26 Part Number 000012545 Rev 02 11/16
Maintenance Section 4

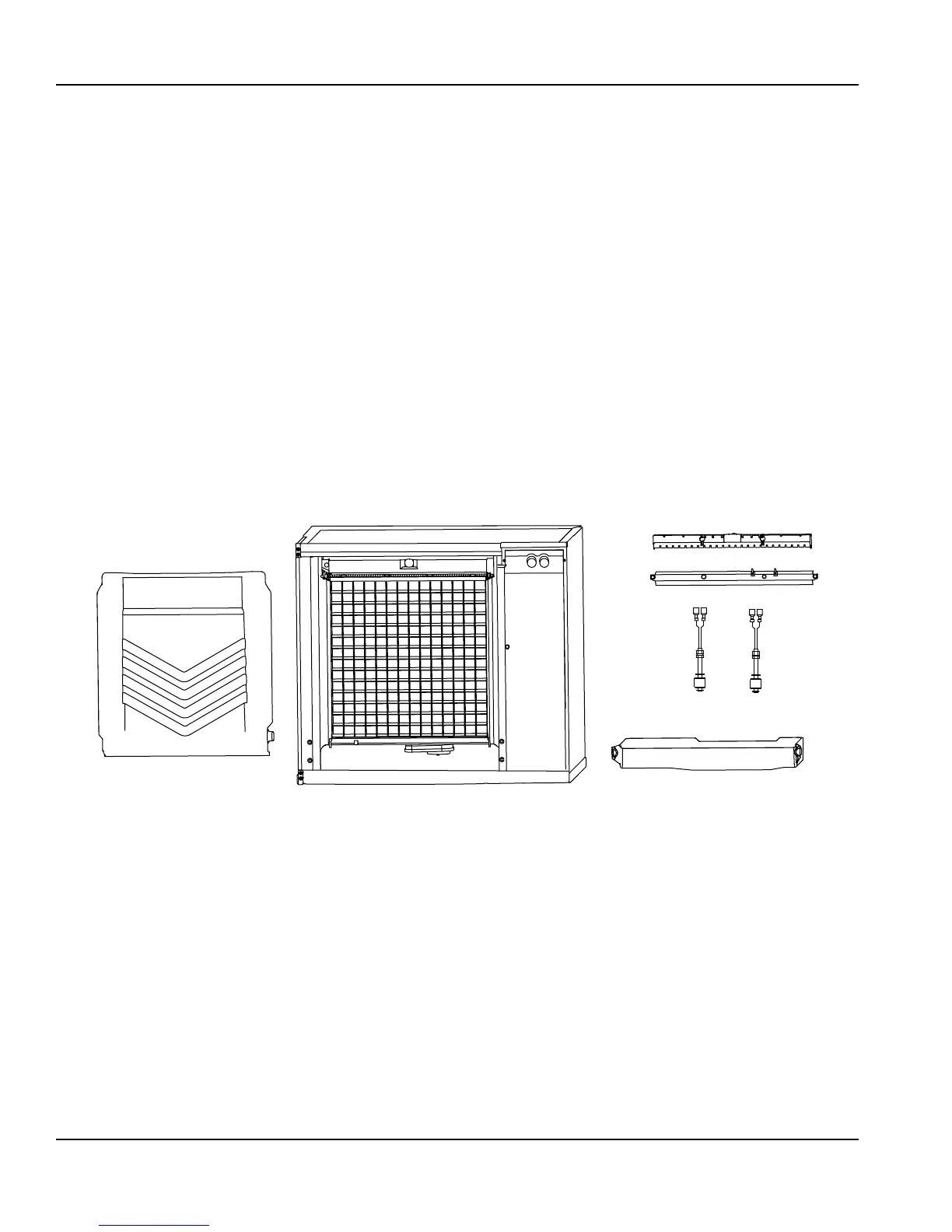

Parts Removal for Cleaning/Sanitizing
Single Evaporator Ice Machines
A. Remove the water curtain
• Gently flex the curtain in the center and remove it from
the right side.
• Slide the left pin out.
B. Remove the water trough
• Depress tabs on right and left side of the water trough.
• Allow front of water trough to drop as you pull forward
to disengage the rear pins.
C. Remove the ice thickness and harvest float switches
• Pull the float switch straight down to disengage.
• Lower the float switch until the wiring connector is
visible.
• Disconnect the wire lead from the float switch.
• Remove the float switch from the ice machine.
D. Remove the water distribution tube
NOTE: Distribution tube thumbscrews are retained
to prevent loss. Loosen thumbscrews but do not pull
thumbscrews out of distribution tube.
• Loosen the two outer screws (do not remove screws
completely they are retained to prevent loss) and pull
forward on the distribution tube to release from slip
joint.
• Disassemble distribution tube by loosening the two (2)
middle thumbscrews and dividing the distribution tube
into two pieces.
• Proceed to page 25 Step 6.
A
B
C
D
To Next Page
