Revision 03 February, 2003
Installation and Service Manual
LEFT SIDE PANEL
FRONT CHANNEL
BOTTOM SCREW
FRONT PANEL
SLOT
ICE DEFLECTOR
ENCLOSURE
I
C
E
COMPONENT
BOX COVER
When mounting an ice machine on top of a SerVend dis-
penser place the front edge of the machine with the outside
front edge of the dispenser bin. With some ice makers, there
may be an overhang of the ice machine on the back of the
dispenser.
Installations that include a SerVend ice machine on a SerVend
dispenser, you must install an ice deflection baffle. Some
installations may also require a manual fill lid, and possibly a
strip lid kit.

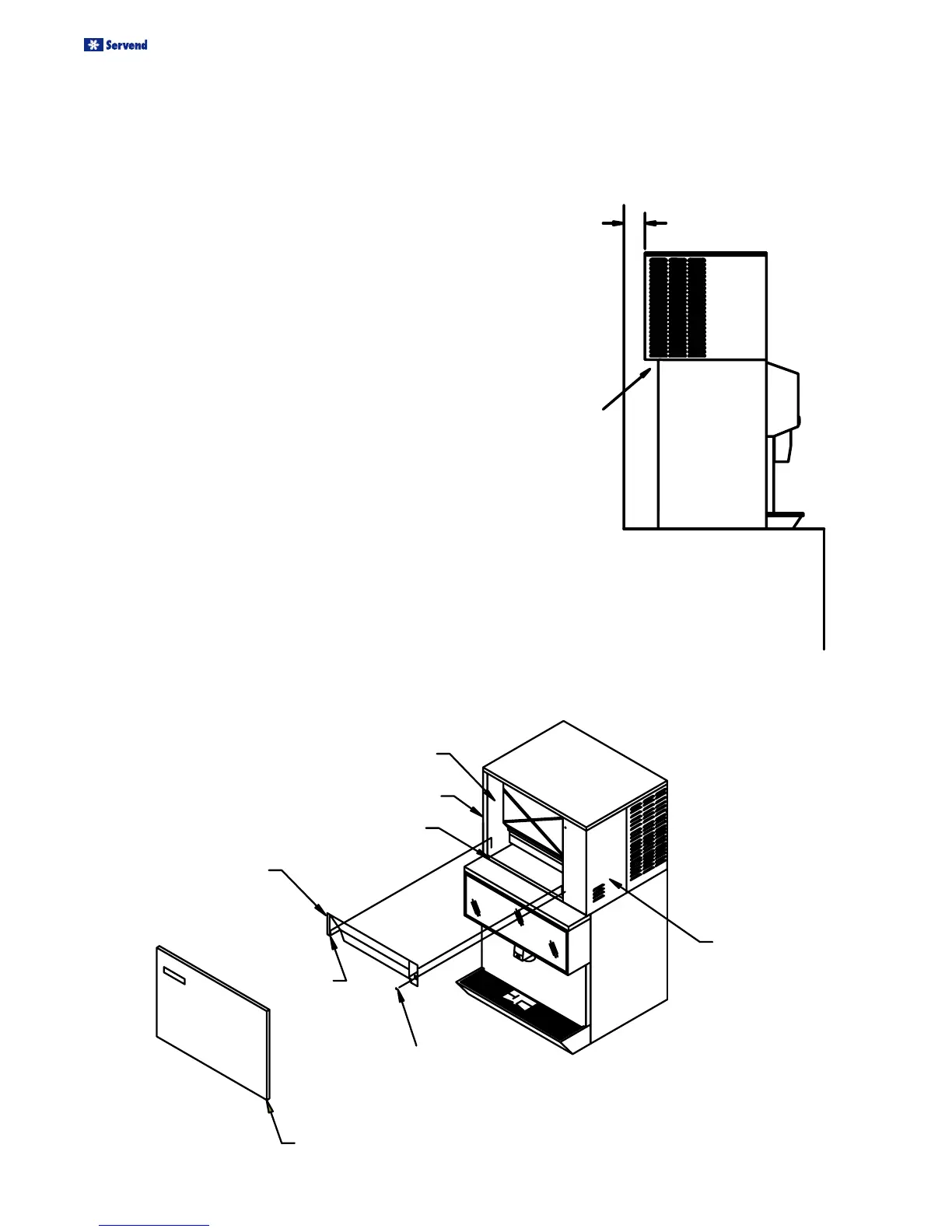

With a SerVend ice machine, the baffle will mount through
the front panel of the ice machine. Refer to the drawing be-
low.
Several SerVend dispensers have a manual fill area in the
front of the dispenser. This manual fill area is not covered by
the ice machine. Order and obtain a manual fill lid from your
local SerVend Distributor. Be sure to have the model and
serial number of the dispenser available when ordering this
or any part.
SerVend manufactures dispensers in 22 inch, 30 inch, 36
inch, and 42 inch widths. At times a customer wishes to in-
stall a narrower ice machine than the width of the dispenser.
In those instances, a strip lid kit is necessary to fill the ex-
cess bin opening of the dispenser. This strip lid kit must be
ordered from your local SerVend distributor. You will need
the model and serial number of your dispenser and the model
of the SerVend ice machine to order the correct strip lid.
Instructions for installation are included in each style of strip
lid.
6" MINIMUM
OVERHANG
ADDING AN ICE MACHINE TO A SERVEND DISPENSER
