9
Installation and Service Manual
5001192
Revision 03 February, 2003
HOW THE ICE DISPENSER WORKS (CONT’D)
SEQUENCE OF OPERATION:
KEY SWITCH OR COIN OPERATED ICE DISPENSING (H265)
< TOP DIMENSIONS

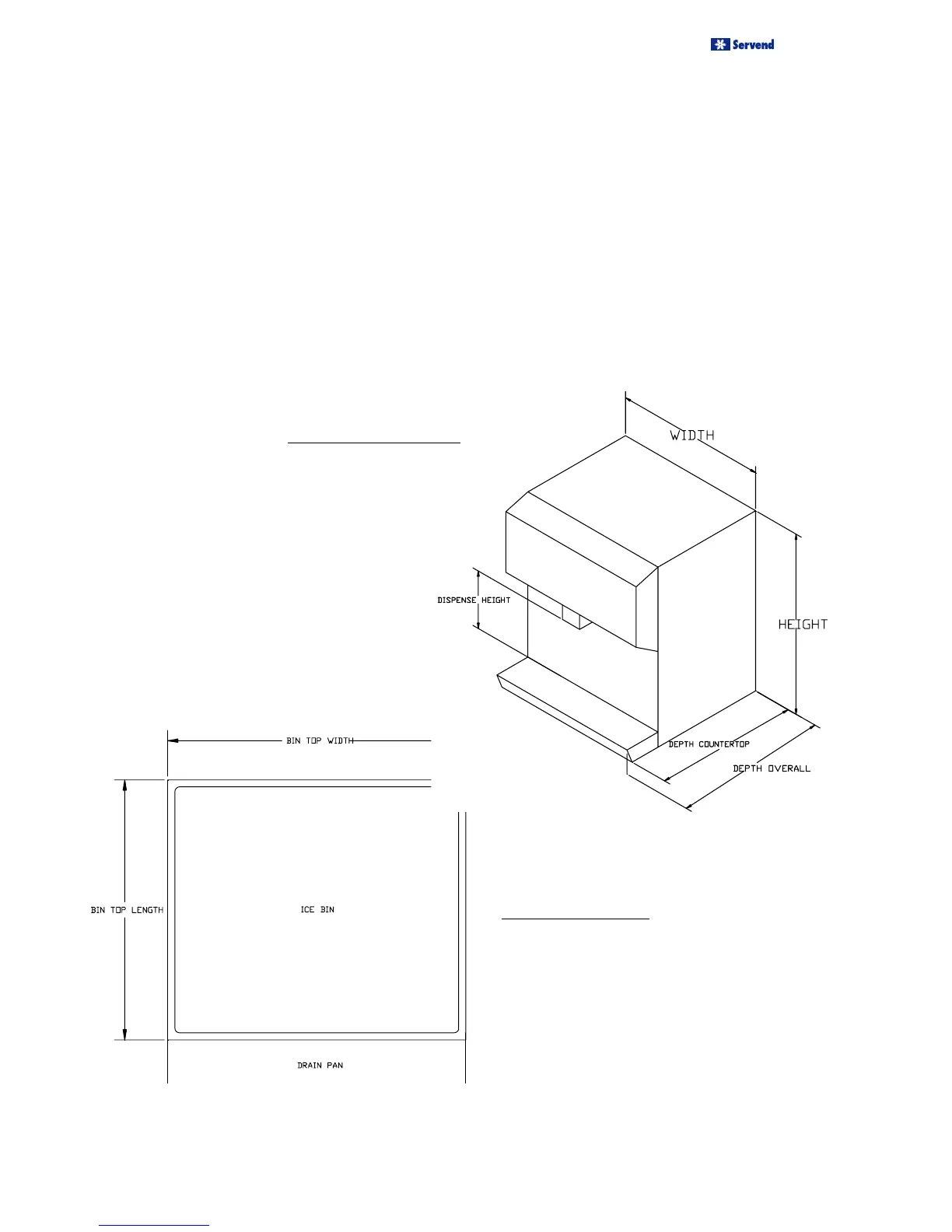

EQUIPMENT SPECIFICATIONS
OVERALL M - SERIES DIMENSIONS
The key switch or coin mechanism engages a microswitch.
The energized microswitch activates the solenoid, which
pulls down the solenoid plunger. The plunger is connected
to a cable, which is then connected to a pulley, this raises
the door of the ice chute.
The energized microswitch also activates the gear mo-
tor. The gear motor turns the agitator and paddle wheel,
lifting ice from the bottom of the bin to the ice dispense
point. Ice falls forward through the open door, through
the bin spout, into the ice chute and into the customer’s
container.
FRONT DIMENSIONS >
