25
Installation and Service Manual
5001192
Revision 03 February, 2003
GENERAL INSTRUCTIONS

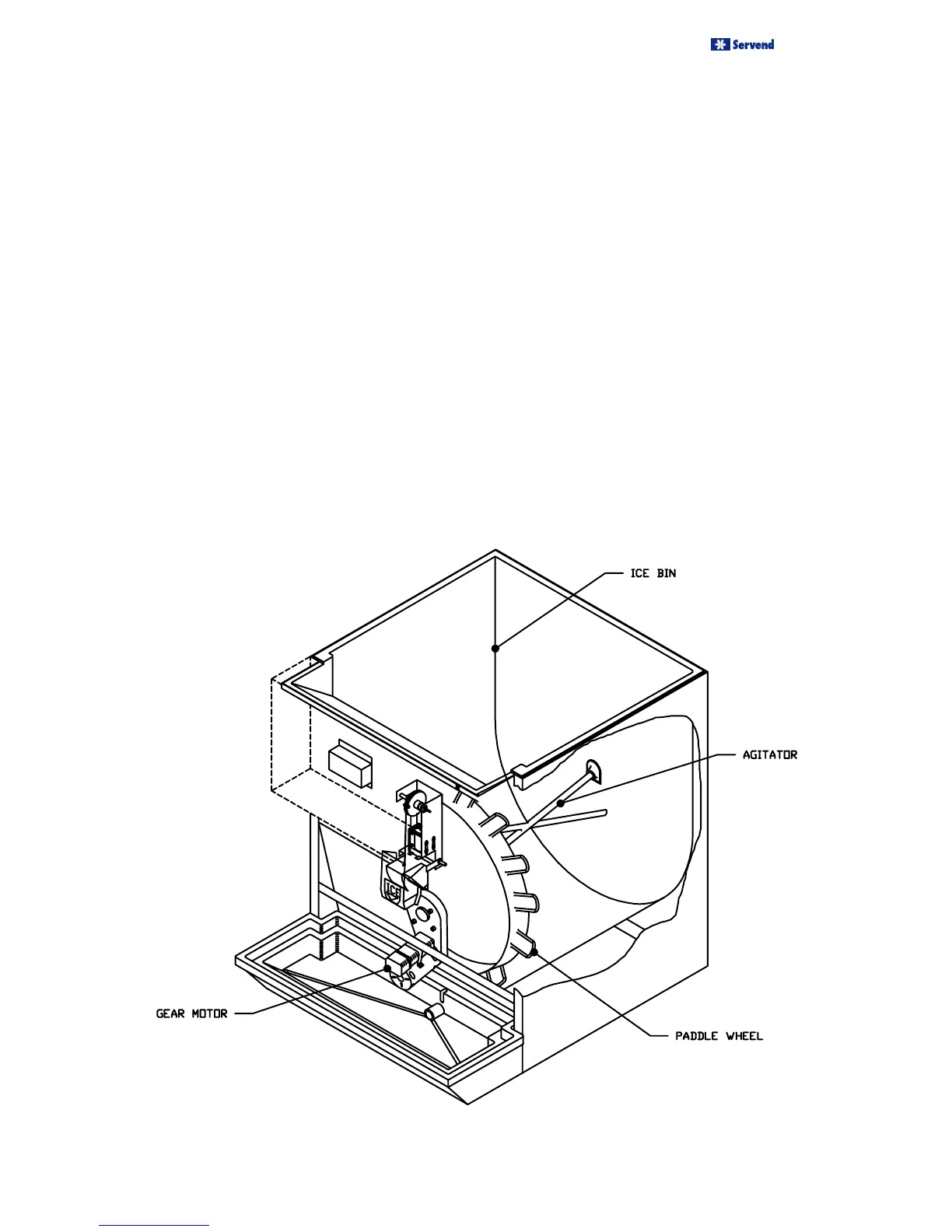

REMOVAL OF GEAR MOTOR
These instructions are provided as a guide for the removal of the gear motor. Depending on the model number of
your dispenser, these instructions may vary slightly.
1. Disconnect power from the electric receptacle.
2. Remove all ice from the ice storage bin of the dis-
penser.
3. Remove the paddle wheel pin from the paddle wheel
/ agitator assembly inside the dispenser bin.
4. Remove the agitator assembly from the dispenser
bin by pushing the agitator to the back of the bin.
Angle the front of the agitator to the side. Pull the
agitator forward then out of the dispenser.
5. Remove the paddle wheel from the dispenser by
pulling the hub of the paddle wheel to the back of
the bin and off the gear motor shaft.
6. Remove the four bolts from the front wall of the dis-
penser. These bolts mount into the gear motor case.
7. Remove the front from the dispenser and expose
the gear motor.
8. Disconnect the electric connector from the gear
motor wire leads.
9. Remove the strap from around the gear motor.
10. You should be able to remove the gear motor
from the dispenser.
11. To install a replacement gear motor, reverse
this procedure.
