ADJUSTMENTS
ICE FLOW
The delivery of the ice from the dispenser is influenced by
several factors. The primary influence is the type of ice be-
ing dispensed. If you are dispensing a wet, rounded corner
ice, this ice will dispense at a faster rate than an ice with
square corners.
Regardless of the ice you are dispensing, it is possible to
reduce the delivery of the ice. However the reduction will
depend upon the type of ice. DO NOT REDUCE THE DOOR
OPENING TO REDUCE ICE FLOW.
A flow restrictor is available as an option for installa-
tion in the dispensing chute of the dispenser. This
restrictor will prevent a full paddle wheel “cup” of ice
from being delivered into the chute. This will then
reduce the delivery of ice to the container.
Installation of flow restrictor
To install the ice flow restrictor:
1. Remove the merchandiser.
2. Remove the door assembly.

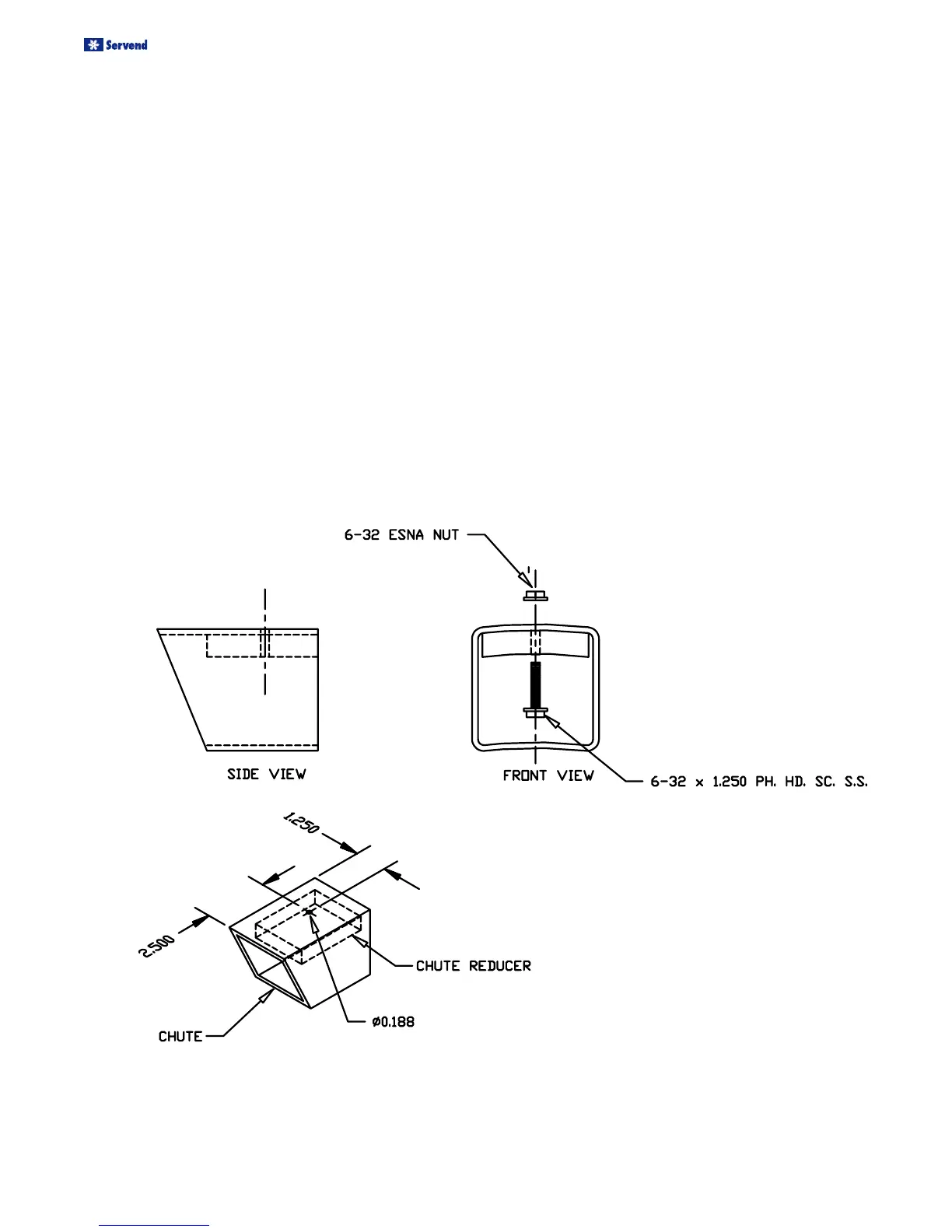

3. Drill 3/16” hole in top of chute from the bin as
shown in the above drawing.
4. Place the restrictor in the chute, holding with the
bolt and nut.
5. Tighten nut.
6. Replace door assembly and merchandiser.
