13
14
16
17A, 17B
15B
6
2
3
1
7
5
8
4
12
10
9
18
19
18

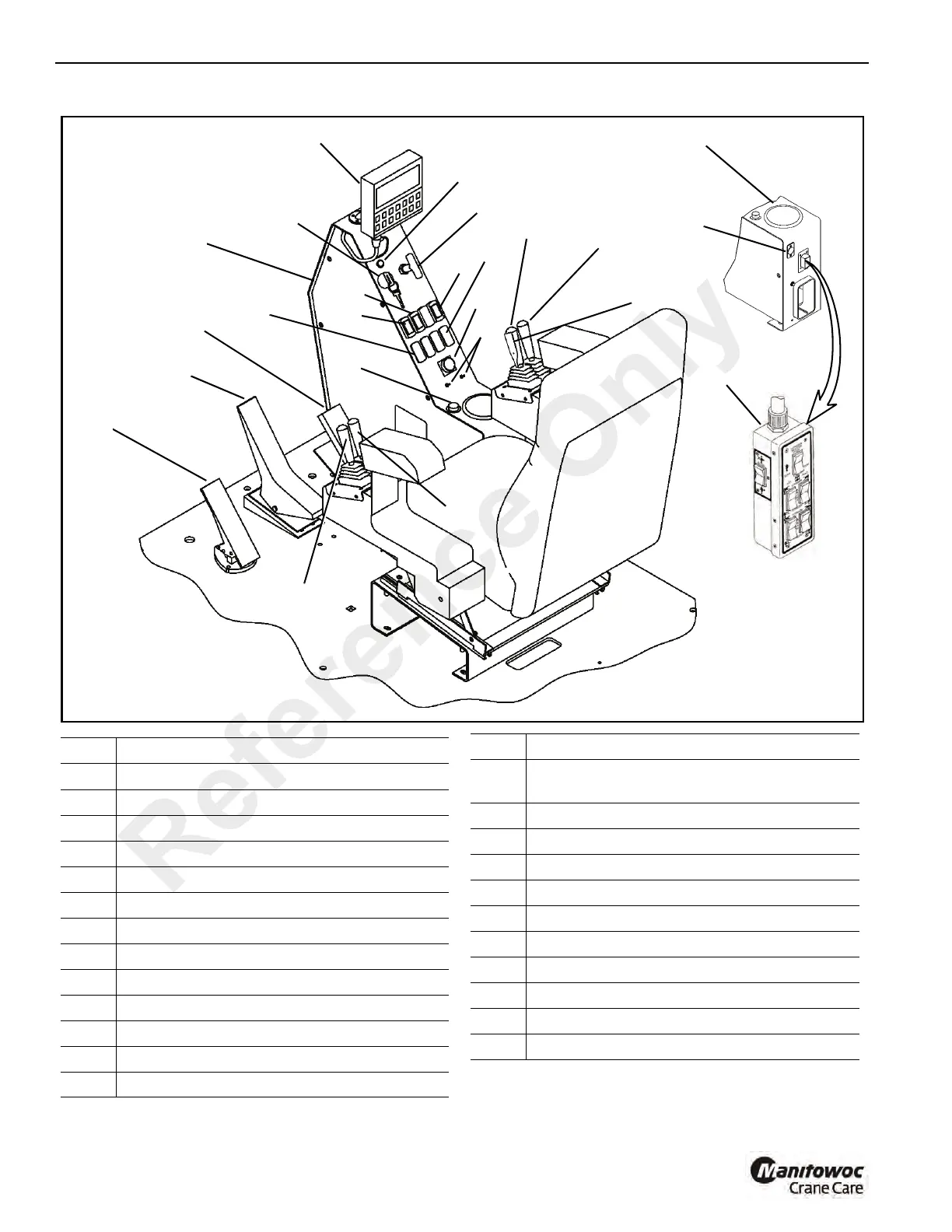

FIGURE 3-3
15A
20
Item Description
1 LMI Console
2 Hand Throttle
3 Crane Ignition Switch
4 Swing Horn Switch
5 Crane Power Switch
6 BOS Switch
7 Swing Brake Switch
8 Throttle Pedal
9 Secondary Level Indicator (Optional)
10 Swing Brake
11 Power Adapter (12V)
12 Telescope Pedal (Optional)
13 Swing Control Lever
14
Telescope Control Lever (Optional Wireline
Control)
15A Heater Controls
15B Air Conditioner Controls (Optional)
16 Boom Lift Control Lever
17A Hoist Control Lever
17B Hoist Rotation Indicator (Optional)
18 Crane Cab Console
19 Crane Cab Outrigger Control Box (Optional)
20 Hydraulic Oil Temperature Warning Light
21 Radio Remotes Power Switch (Optional)
22 LMI Override Switch
Item Description
11
21
22
