5-4 Published 12-21-2011 CTRL #050-09
LUBRICATION PROCEDURE AND CHARTS 1300A OPERATOR’S MANUAL
Item Application
Recommended
Lubricant
Procedure Frequency
1 Hydraulic oil reservoir HYDO Check fill change Weekly As Required Semi-Annually
2 Oil filter, Hydraulic oil reservoir Change or clean
After first 40 Hrs. As indicated by gauge
thereafter.
3 Magnetic Plug, Hydraulic oil reservoir Clean At oil filter service interval.
4 Breather, Hydraulic oil reservoir Clean Monthly
5
Sheave pins: boom (5 plcs), jib (1 pl), block (1 pl),
rooster sheave (1 pl)
EP-MPG Grease gun Weekly
6 Boom pivot pin EP-MPG Grease gun Monthly
7 Lift cylinder pins - 2 ea. EP-MPG Grease gun Monthly
8 Turntable bearing EP-MPG Grease gun Weekly
10a Winch gearbox. SAE 90 EP Change/check & fill Every 1000 hours or 6 months
10b Winch brake HYDO Change/check & fill Every 1000 hours or 6 months
11 Swing drive gearbox GL-5 Change After 100 operating hours
12 Swing gear teeth EP-OGL Spray Can Monthly
13 Boom extension LTG
Brush, roller or grease gun
spray can
Monthly or as required
14 Outrigger beams, bottom, sides LTG Brush or roller spray can Monthly or as Required
15 Wire rope (loadline) EP-OGL Brush or spray Semi-Annually
16 Diffuser strainer, Hydraulic oil reservoir Clean Semi-Annually with Oil Change
18 Extend Sheaves EP-3MG Grease Gun Weekly

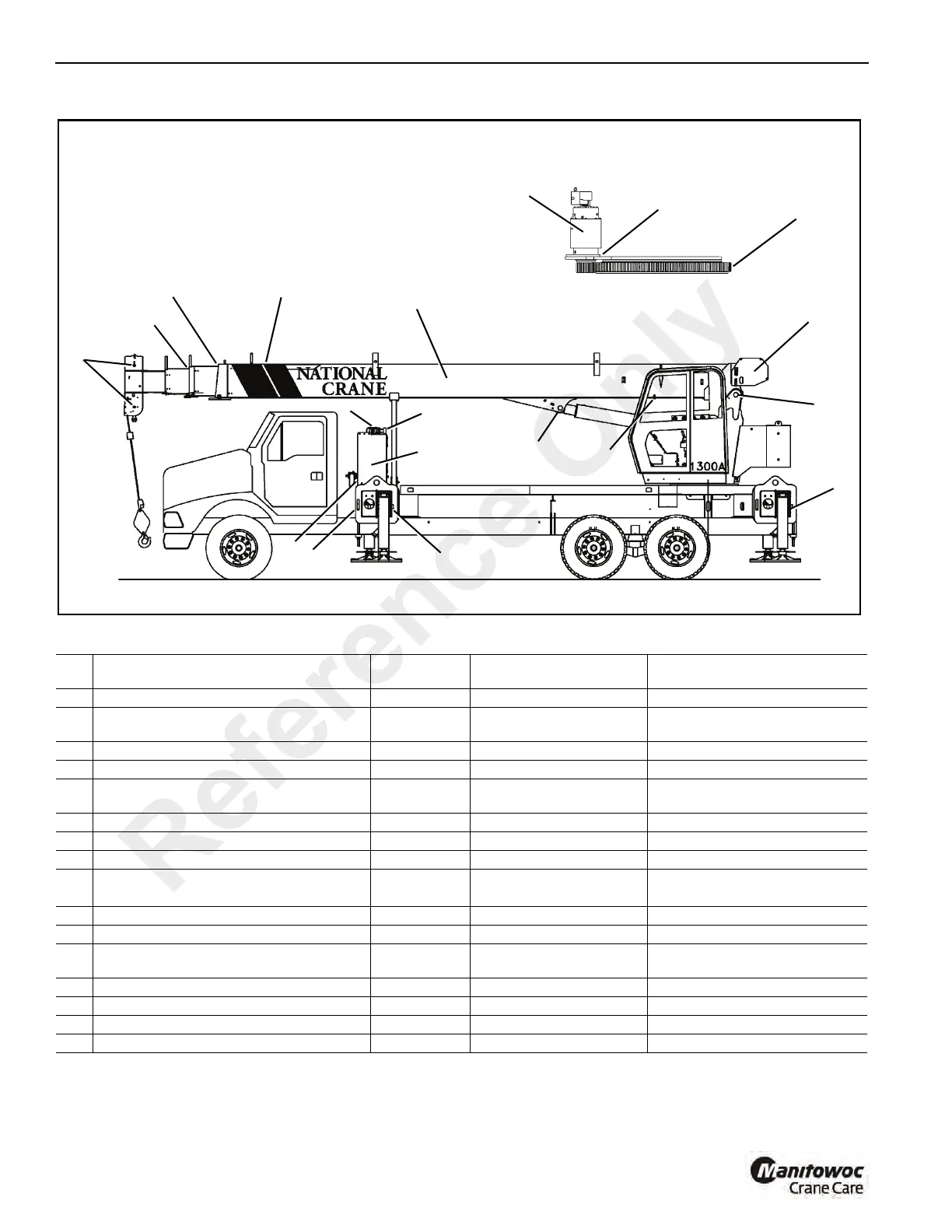

Lubrication Points
5
18
19
15
13
7
19
2
4
1
14
3
10a
10b
6
14
8
12
11
16
FIGURE 5-1
