SET-UP 1300A OPERATOR’S MANUAL

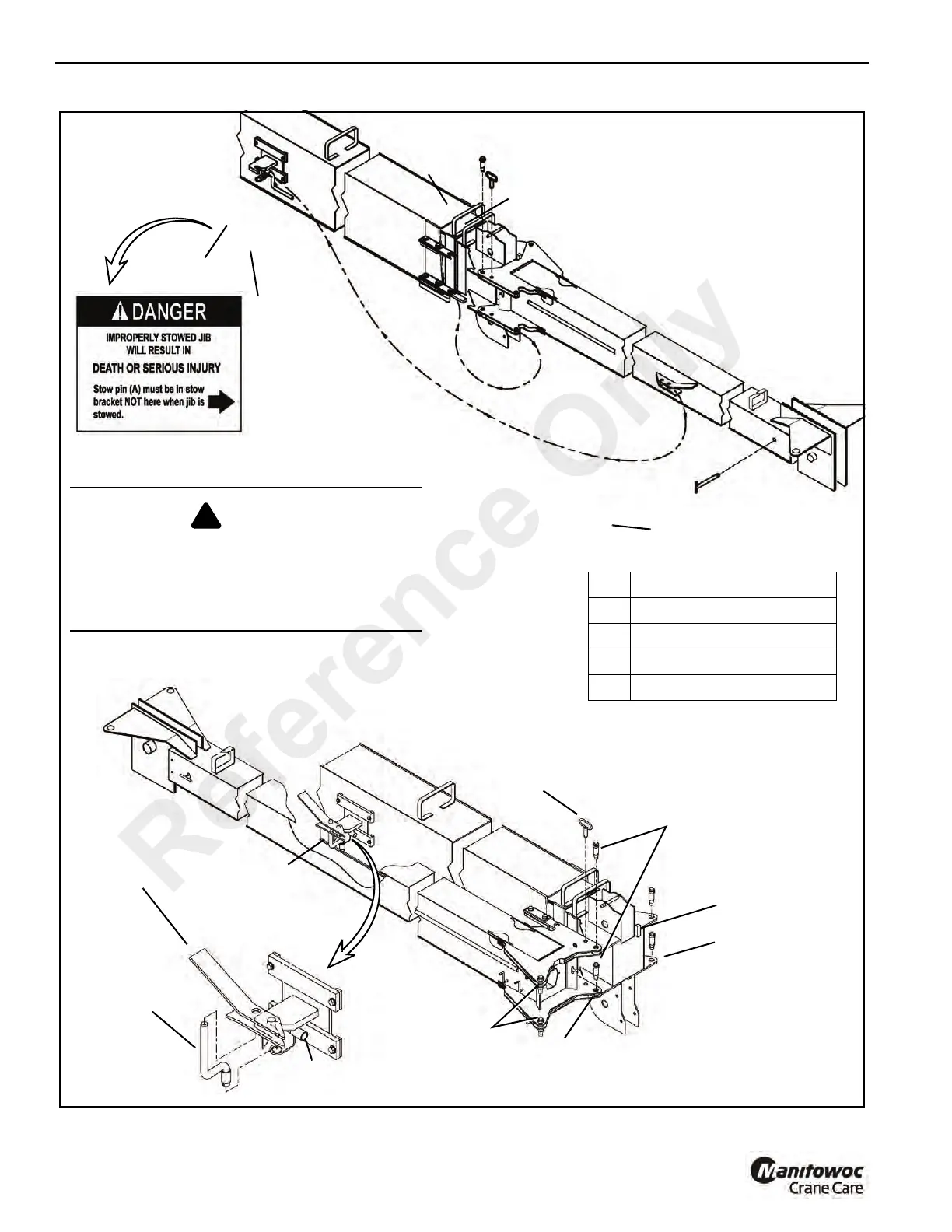

Jib in Stow Position
C1
B
A
A
D
Stowage Bracket
on Jib
Left Side
Right Side
JIb in Operating position
A
D
E
B
C
AStow Pin
B Jib Swing Pin
C Jib Deployment Pins
D Stowage Loop
E Extension Retaining Pin
C2
FIGURE 4-3
Index Bar
CAUTION
Structural damage may occur if jibs from models
other than the 1300A are used on this model. Only
the 1300A jib is notched to fit the index bar on boom
nose. Do not modify other model jibs to fit the
1300A boom.
!



























