National Crane Published 9-26-2018 Control # 646-02 7-7
NTC55 OPERATOR MANUAL RATED CAPACITY LIMITER
RCL SETUP
The RCL setup is where the lifting configuration of the crane
is entered into the system. The RCL setup is required before
the crane can be operated.
When the crane ignition switch is turned on, the RCL powers
up and displays the National Crane logo screen for a few
seconds followed by Screen 1 in the RCL setup sequence.
Select the RCL setup icon on the main menu to begin RCL
setup (Figure 7-2).

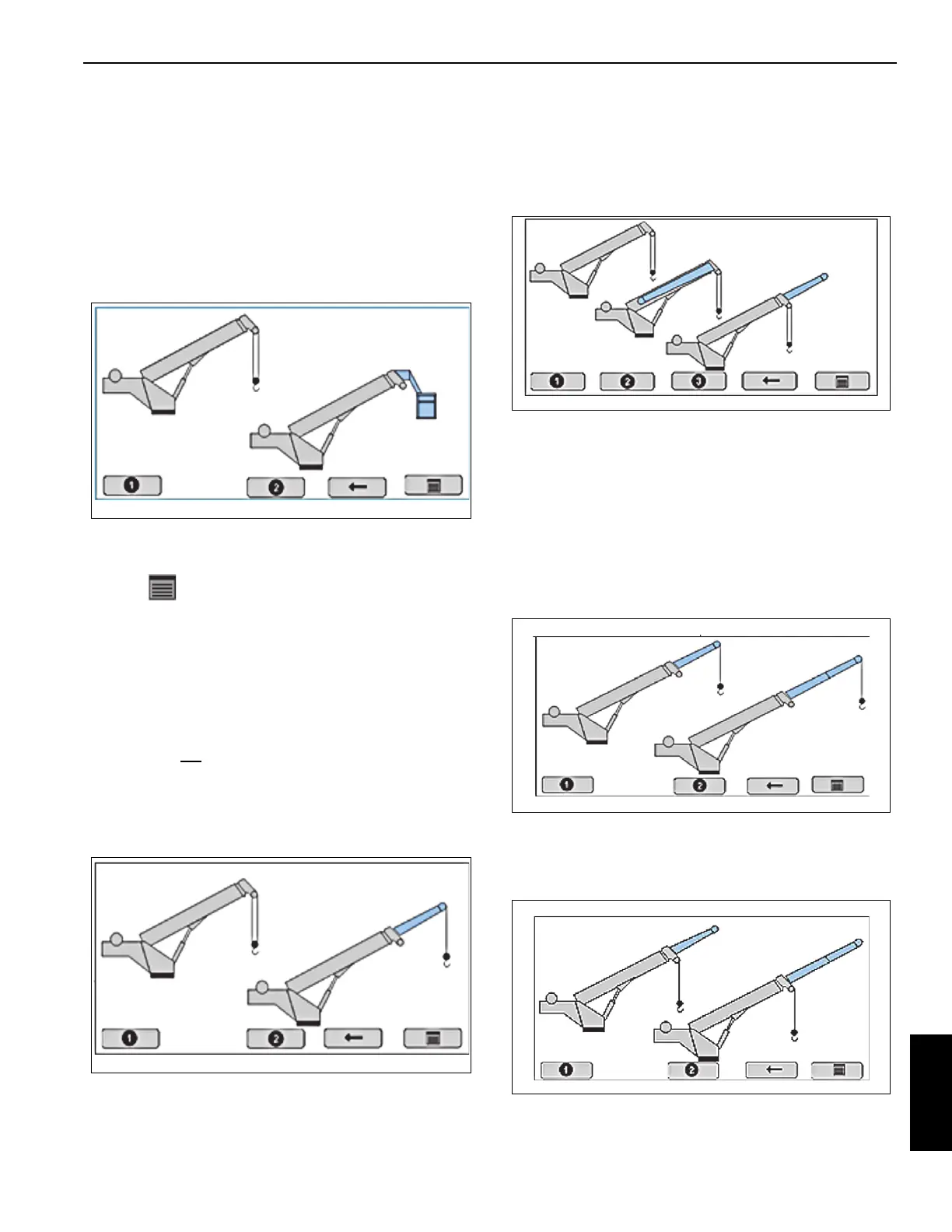

Screen 1
Is a basket attached to the boom or the tip of the jib nose?
Select 1 or 2.
- The Main Menu button here returns to the
Main Menu.
- If a basket is selected and the machine is shut
down, the RCL will restart without having to
complete the setup sequence. This is to enable
basket with radio remote operation.
Boom Configuration
If the crane is not configured with a jib, the following set up
screens will not appear. The system will detect that no jib has
been configured for use on the crane and by-pass these
screens.
Screen 2
Is a jib attached to the boom nose? Select 1 or 2.
NOTE: Screens 3-3 and 4-2 do not apply to cranes
equipped with a fixed or non-telescoping jib
extension and should not appear as a screen
selection. The RCL control system will by-pass
these screens and move to Screen 4-1.
Screen 3-1A
Selected 1 on Screen 2. Now select 1, 2 or 3 on Screen 3-
1A;
- 1 - No jib
- 2 - Jib stowed on the side of the boom
- 3 - Jib deployed but not reeved
- Screen 3-1A will only appear if the crane is not
equipped with a personnel basket.
Screen 3-2
Selected 2 on Screen 2. Now select 1 or 2; is the jib retracted
or extended?
Screen 3-3
