Manitowoc NTC55 User Manual

National Crane Published 9-26-2018 Control # 646-02 7-13
NTC55 OPERATOR MANUAL RATED CAPACITY LIMITER
7

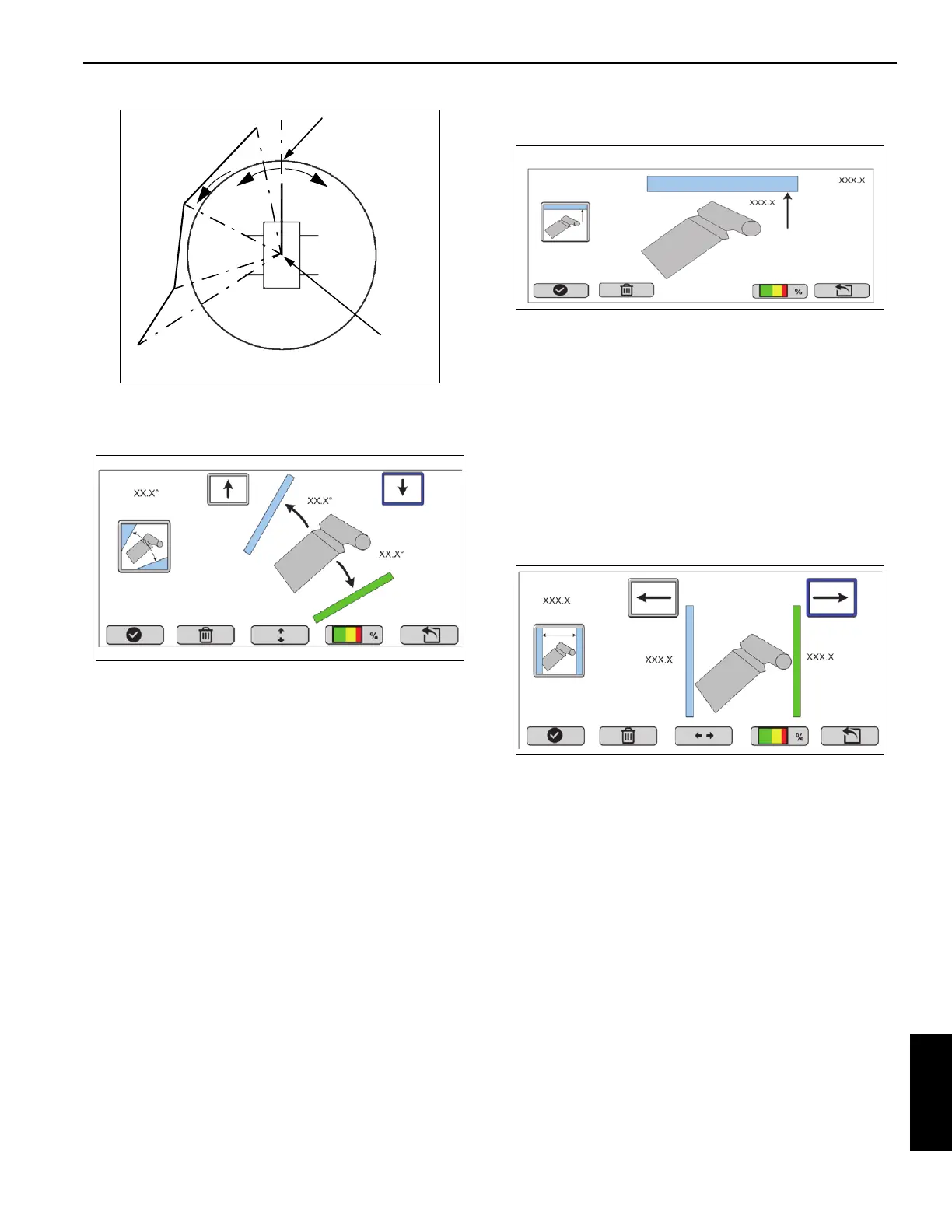

Boom Angle Limit
RCL Limit #3
Move the crane boom to the desired boom angle (the angle
number will appear on the display screen) then:
- Select SET, function key (1) to set the MAX boom
angle.
- Select SET, function key (3) to set the MIN boom
angle.
- Selecting either DEL function key will remove the
current boom angle setting.
- ESC to return to pervious screen with no inputs.
Use this screen to set either the Max boom angle, the Min
boom angle or both Min and Max.
The current boom angle is always shown in the upper right
hand corner.
Tip Height Limit
RCL Limit #4
Move the crane boom to the desired boom tip height point (it
will appear on the display screen) then select the following:
- Select SET, function key (1) to store the current
boom tip position as the MAX.
- Select DEL, function key (2) to delete the
established limit.
- ESC to return to previous screen with no inputs.
The current boom tip height is always shown in the upper
right hand corner.
Radius Limit
RCL Limit #5
Move the crane boom to the desired boom radius (it will
appear on the display screen) then:
- Select SET, function key (1) to set the MAX boom
radius.
- Select SET, function key (3) to set the MIN boom
radius.
- Selecting either DEL function key will remove that
radius limit setting.
- ESC to return to previous screen with no inputs.
Use this screen to set either the Max radius, the Min. boom
radius or both the Min and Max radius.
The current radius is always shown in the upper right hand
corner.
1
2
3
4
Center Line
of Rotation
Center Line of
Truck with Boom
in Boom Rest
FIGURE 7-8
3
6
0
°
-
+0°
8807-31
8807-32
8807-33
