RATED CAPACITY LIMITER NTC55 OPERATOR MANUAL
7-20 Published 9-26-2018 Control # 646-02
.

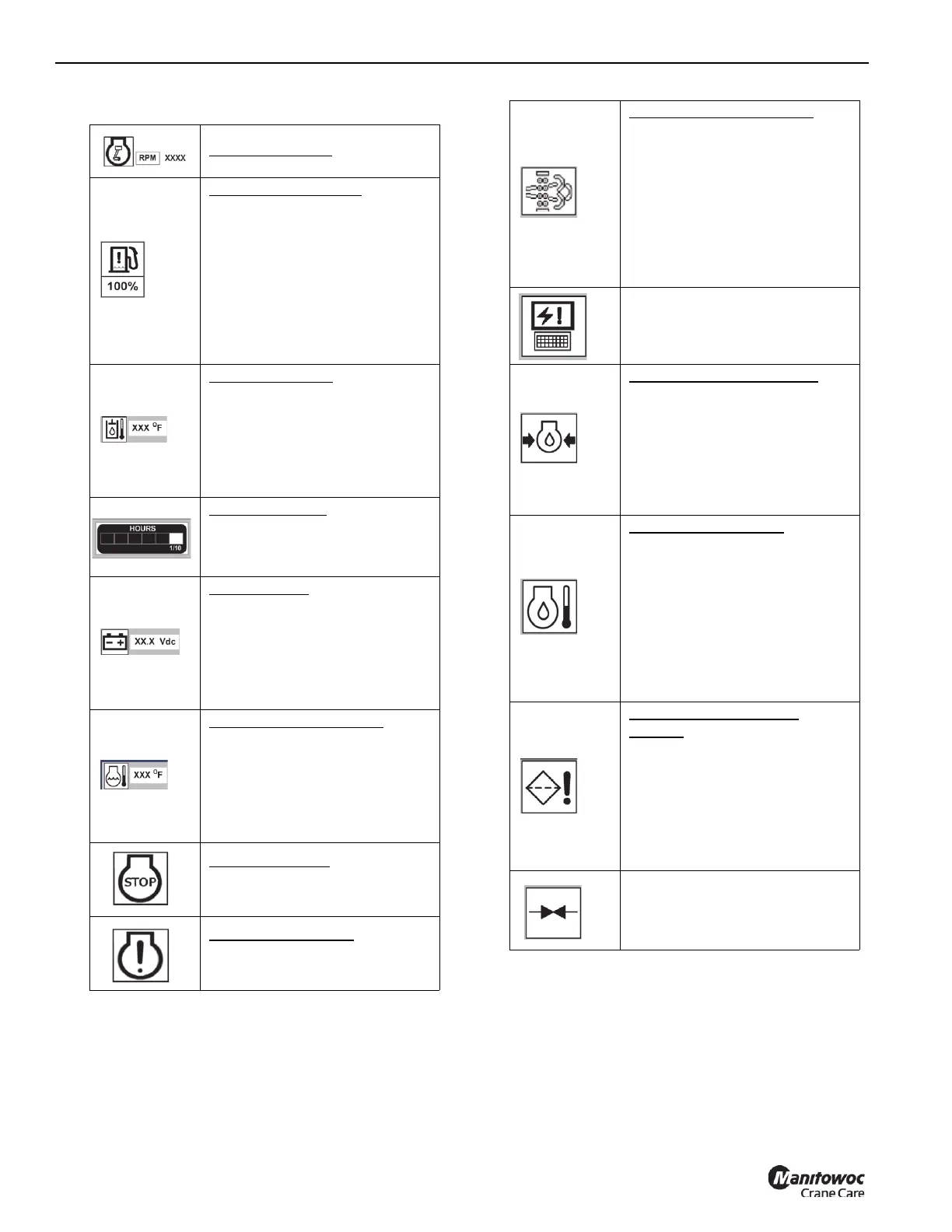

Truck Engine RPM
Truck Diesel Fuel Level - The
truck diesel fuel level is displayed
as a percentage of maximum fuel
level. If the truck diesel fuel level
drops below 20% of maximum
capacity, the general warning light
is shown on the operating mode
screen and the truck diesel fuel
level icon is highlighted YELLOW
on the diagnostics screen.
Hydraulic Oil Temp
- If the
hydraulic oil temperature rises
above 180°F, the general warning
light is shown on the operating
mode screen and this icon is
highlighted RED. Fahrenheit is
default value.
Crane Hour Meter
- Real-time
clock is on anytime the crane is
operating. The time is saved
when crane is shutdown.
Battery Voltage
- If the truck
battery voltage drops below 10.5
Volts, the general warning light is
shown on the operating mode
screen and the truck battery
voltage icon is highlighted RED
on the diagnostics screen.
Engine Water Temperature
- If the
engine water temperature rises
above 220°F the general warning
light is shown on the operating
mode screen and this icon is
highlighted RED. Fahrenheit is
default value.
Engine Stop Lamp
- If an engine
error is detected the icon is
highlighted RED.
Engine Warning Lamp - If an
engine warning is detected the
icon is highlighted YELLOW.
Truck Regeneration Needed -
When the truck is in need of
regeneration (first stage and all
subsequent stages), the general
warning light is shown on the
operating mode screen and the
truck diesel particulate filter icon
is highlighted YELLOW on the
diagnostics screen. Gray if not
supported.
Module Fault - turns RED when
any lower HED module is missing
or has a fault.
Engine Oil Pressure Warning
- If
the truck engine oil pressure
drops below 5 psi, the general
warning light is shown on the
operating mode screen and the
truck engine oil pressure icon is
highlighted RED on the
diagnostics screen.
Engine Oil Temperature
- If the
truck engine oil temperature rises
above 250°F, the general warning
light is shown on the operating
mode screen and the truck engine
oil temperature icon is highlighted
RED on the diagnostics screen.
Temperature is displayed in
degrees Fahrenheit (default
value).
Hydraulic Filter Reminder
Warning - If the hydraulic filter
reminder limit (see "Tools"
screen) has been reached, the
general warning light is shown on
the operating mode screen and
the hydraulic filter reminder icon is
highlighted RED on the
diagnostics screen.
Suction Shut-off Valve is Closed -
turns RED when valve closes)
Crane cannot function = ESTOP
