Part Number 8001119 10/19 49
E. Remove the Water Distribution Tube
Q170/Q210/Q270 Models
SV1630
DISTRIBUTION
TUBE
THUMB
SCREW
1. LIFT UP
2. SLIDE BACK
3. SLIDE TO RIGHT
THUMB
SCREW
1
3
2
Do not force this removal. Be sure the
locating pin is clear of the hole before sliding
the distribution tube out.

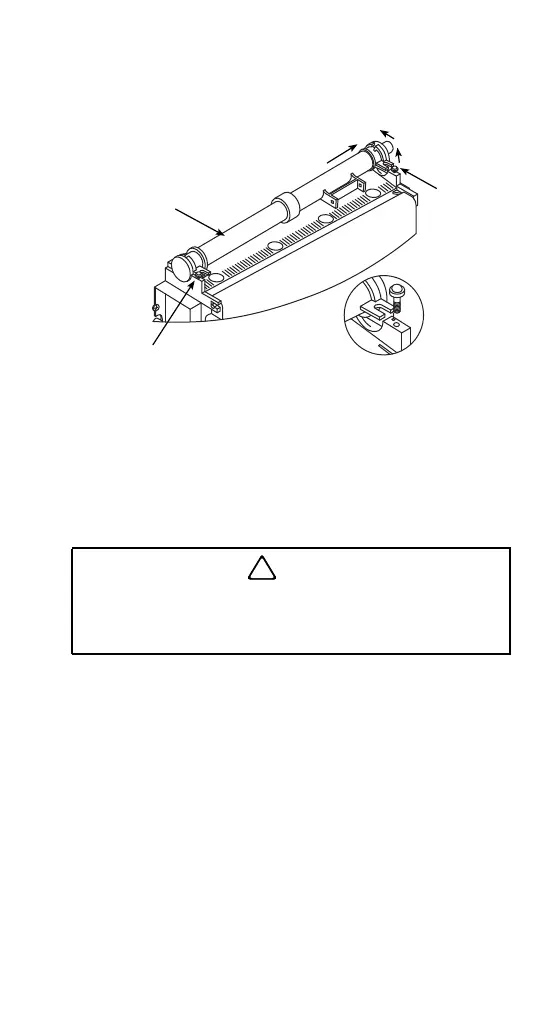

Q170/Q210/Q270
Water Distribution Tube Removal
• Loosen the two thumbscrews, which secure the
distribution tube.
• Lift the right side of the distribution tube up off the
locating pin, then slide it back and to the right.
!
Caution
To Next Page
