Manitowoc SM050

Part Number 8001119 10/19 55
Q170/Q210/Q270
• Grasp ice damper and apply pressure toward
the left hand mounting bracket.
• Apply pressure to the right hand mounting
bracket with thumb.
• Pull ice damper forward when the right hand
ice damper pin disengages.
Installation
• Place ice damper pin in left hand mounting
bracket and apply pressure toward the left
hand mounting bracket.
• Apply pressure to the right hand mounting
bracket with thumb.
• Push ice damper toward evaporator until right
hand damper pin engages.

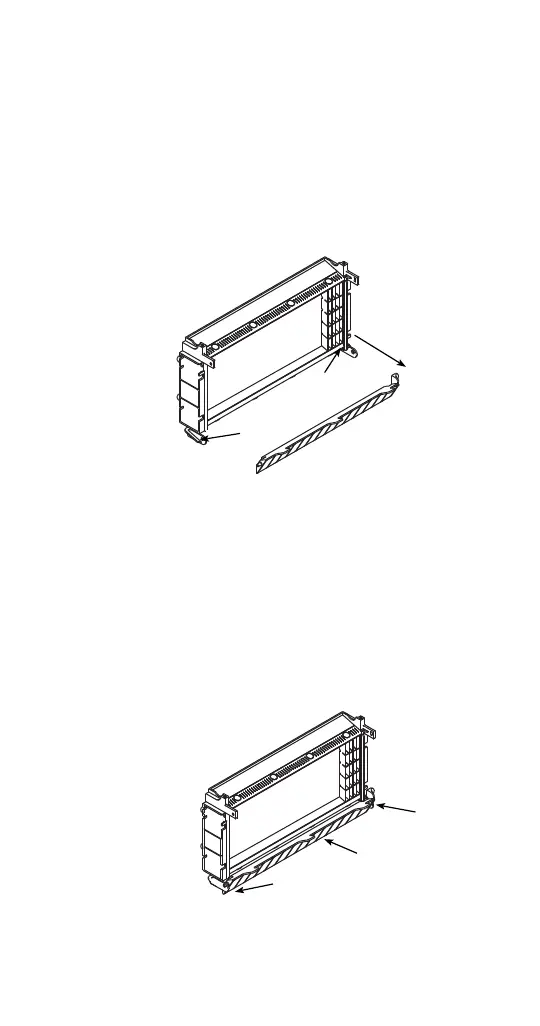

SV1742A
STEP 2
STEP 1
STEP 3
SV1742H
STEP 2
STEP 1
STEP 3
